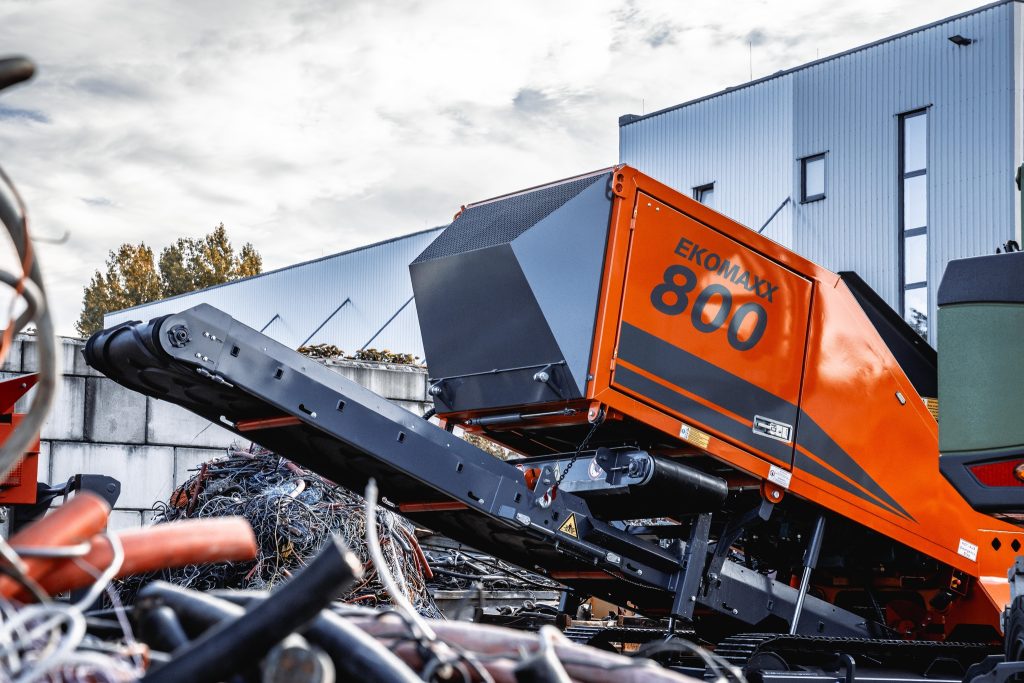

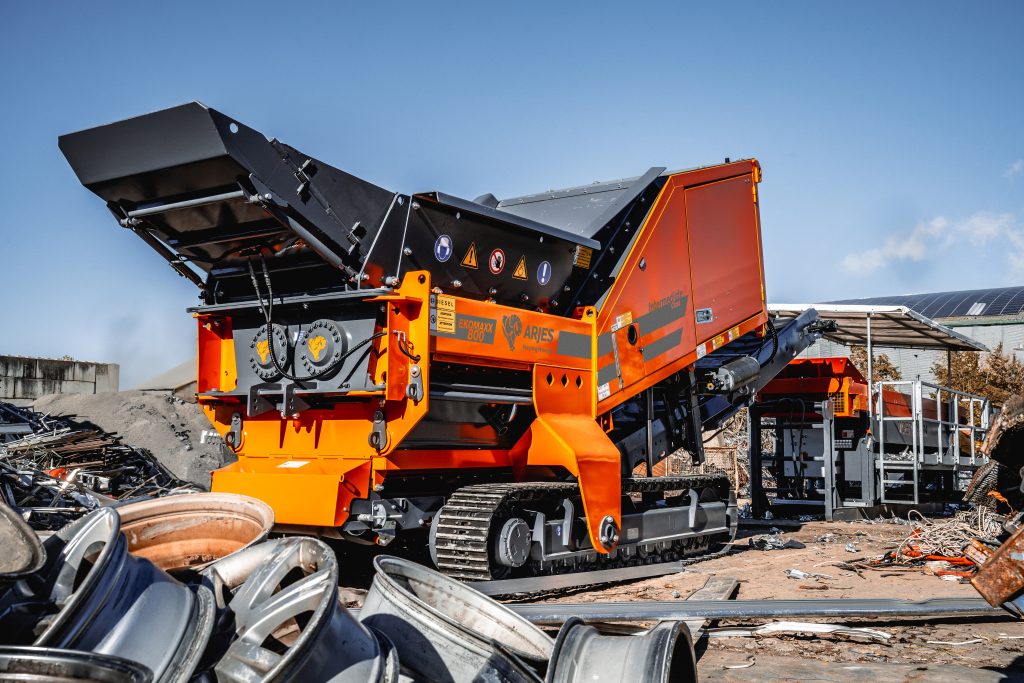

ARJES EKOMAXX 800
The ARJES EKOMAXX is a high-performance mobile single-shaft shredder designed for efficient pre-shredding and volume reduction across a wide range of waste and recyclable materials. Combining a powerful drive system with intelligent control technology, the EKOMAXX delivers consistent performance, excellent fuel efficiency and low operating costs for waste management companies, recycling facilities and biomass processors.
Powered by a 310 kW (422 HP) Volvo Penta Stage V diesel engine, the EKOMAXX is built for continuous operation in demanding environments. Its heavy-duty crawler track chassis provides excellent on-site mobility, while the hydraulically adjustable counter comb and interchangeable shaft tools allow operators to optimise the machine for different material streams.

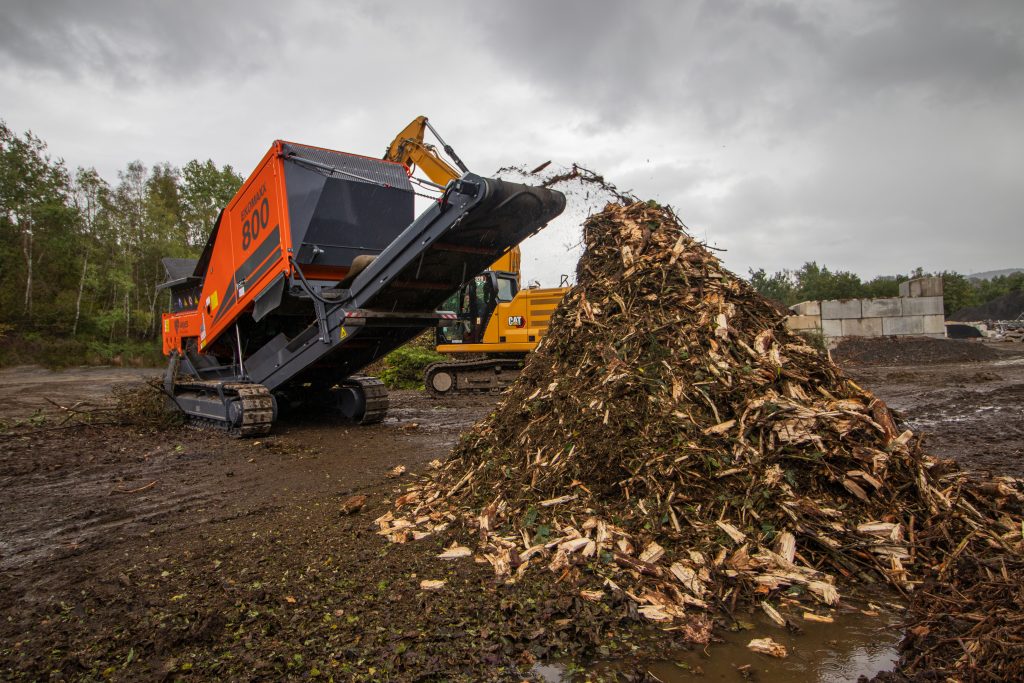

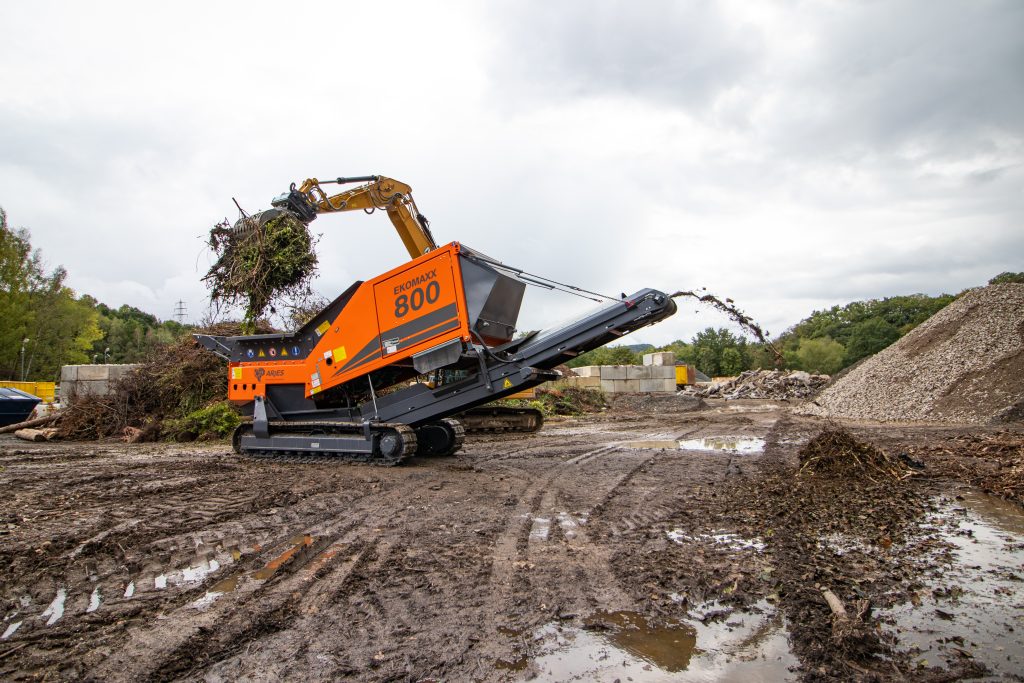

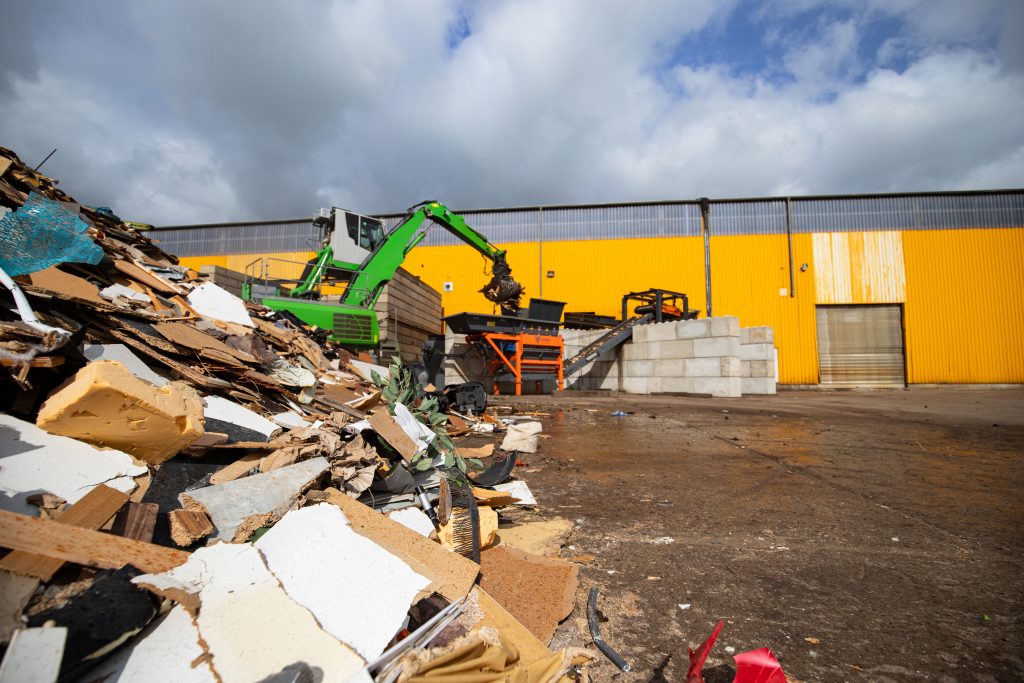

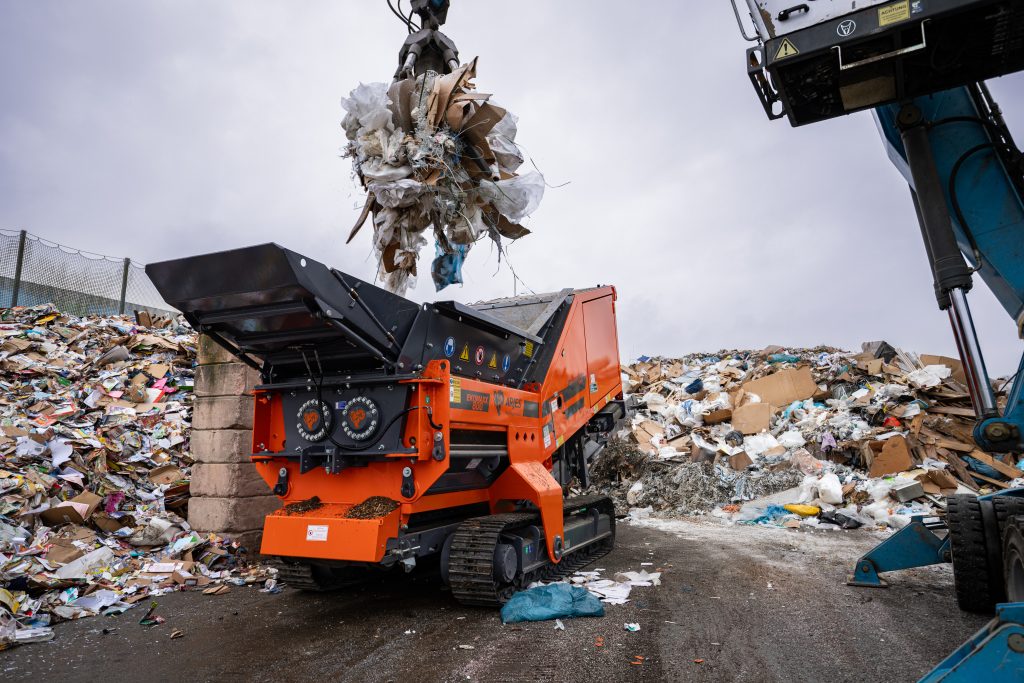

Suitable for processing Construction & Demolition Waste, Commercial & Industrial Waste, Household Waste, Waste Wood, Green Waste, Biomass, Waste Tyres, Paper & Cardboard, Plastic Waste and Lightweight Scrap Metal.
Designed for high productivity and simple operation, the EKOMAXX features ARJES' intelligent SCU control system with remote operation, automatic overload protection, a reversible cooling fan, water spray system and an integrated overband magnet for efficient ferrous metal separation.
Whether operating in a recycling yard, transfer station or biomass facility, the EKOMAXX provides reliable, high-capacity shredding with maximum uptime and minimal maintenance.- Key Features
- Shredder Packages
- Technical Specification
- Video
Key Features
✔️ High-performance mobile single-shaft shredder
✔️ 310 kW (422 HP) Volvo Penta Stage V diesel engine

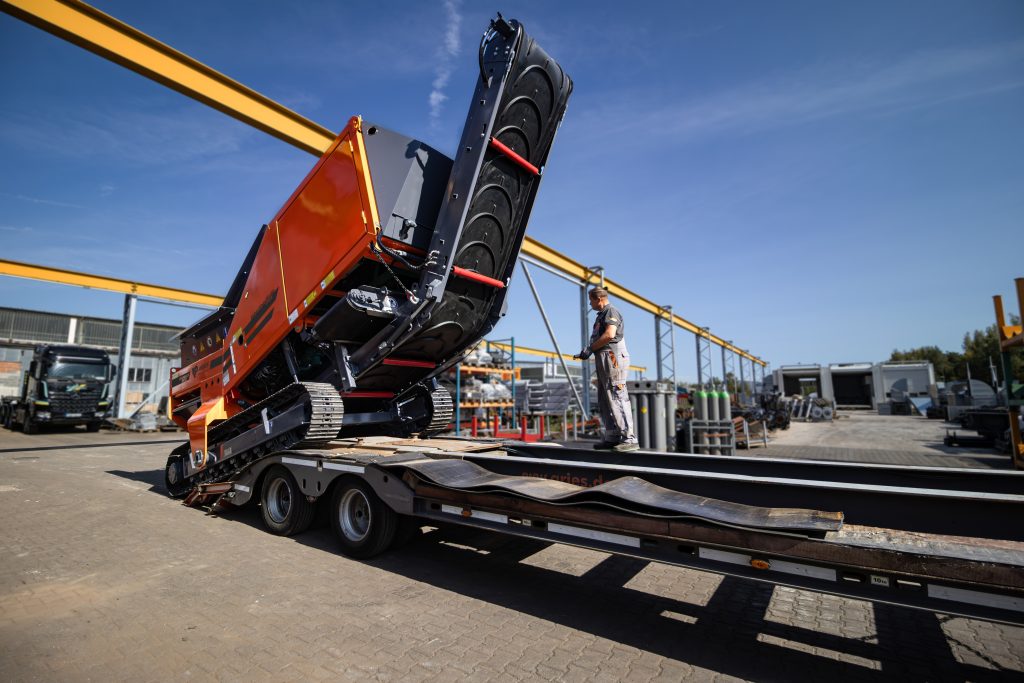

✔️ Heavy-duty crawler track chassis
✔️ Intelligent SCU control system with remote operation
✔️ Hydraulically adjustable counter comb
✔️ Interchangeable shaft tools for different applications
✔️ Integrated overband magnet
✔️ Automatic overload protection system
✔️ Reversible cooling fan
✔️ Water spray system for dust suppression
Shredder Packages
Technical Specification
| TRACKS | |
|---|---|
| Length (mm) | 9.300* / 8.100 (Transport) |
| Width (mm) | 2.450 / 2.450 (Transport) |
| Height (mm) | 4.000 / 3.100 (Transport) |
| Total weight (kg) | Total weight (kg) |
| DRIVE | |
|---|---|

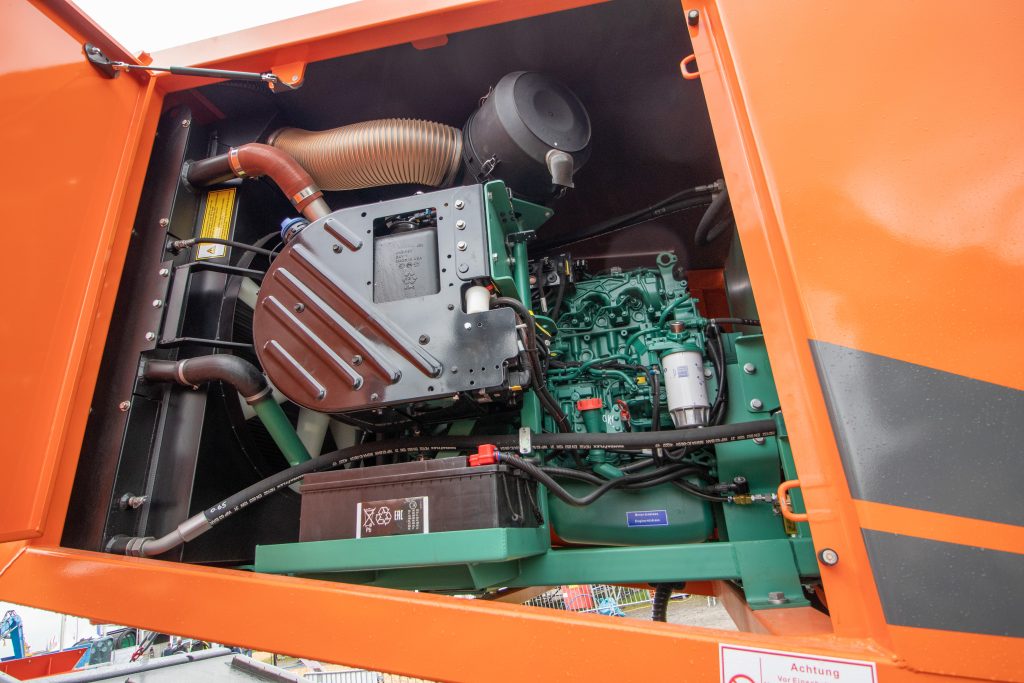

| Engine | Volvo Penta TAD 883 VE |
| Power (kW / HP) | 235 / 320 |
| Fuel capacity (l) | 400 |
| DISCHARGE BELT | |
|---|---|
| Discharge Height (mm) | 3.300 |
| Width (mm) | 1.000 |

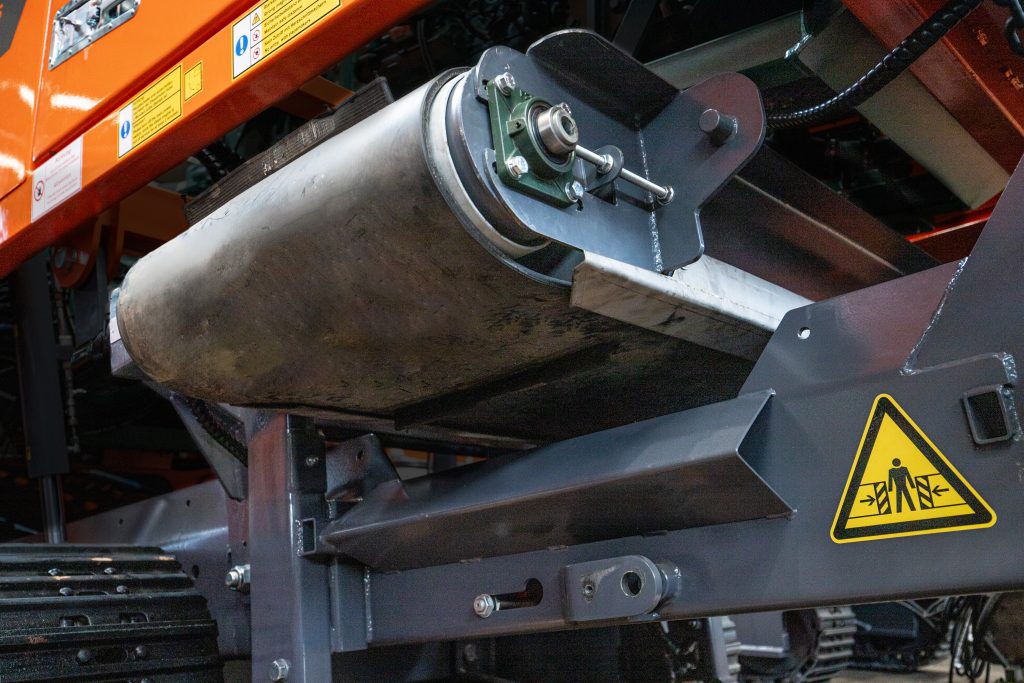

| Included | Over-belt magnet |

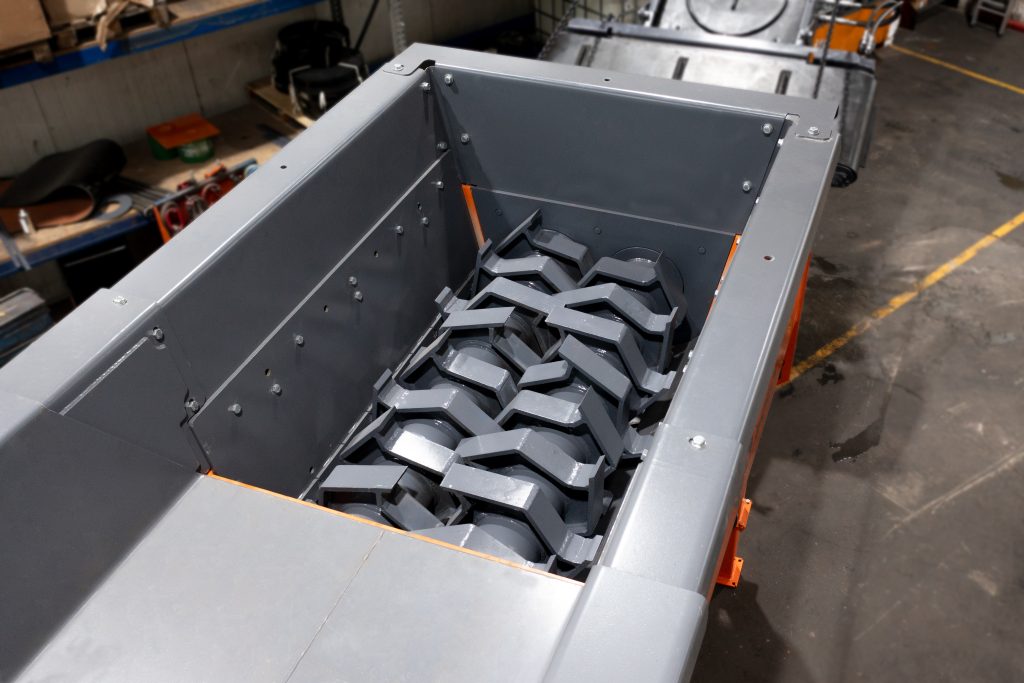

| SHREDDING UNIT | |
|---|---|
| Shaft length (mm) | 2.000 |
| Shaft diameter (mm) | 680 |
| Weight (kg / cassette) | 2.500 |
| Rotation speed (rpm) | approx. 42 |
