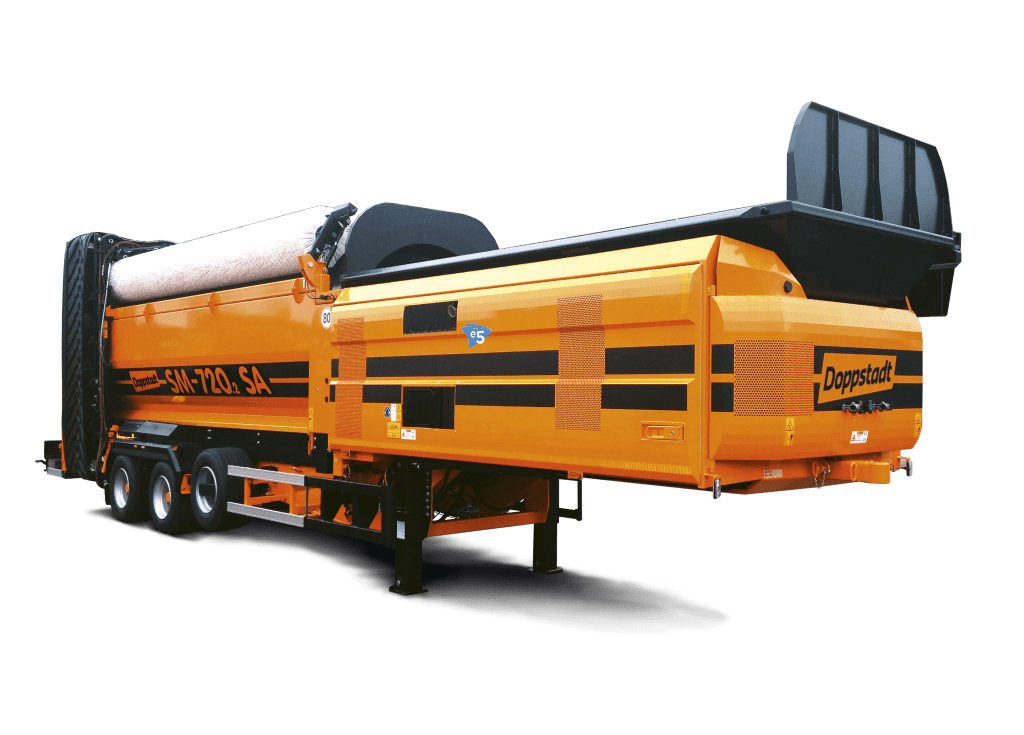

DOPPSTADT SM 720.2SA

The SM 720.2 SA is a powerful, road‑legal mobile trommel designed for efficient screening of soil, compost, wood, construction debris, and waste. Its 7 m drum with 38 m² screening area ensures high throughput, while the automatic load‑sensing feeder optimizes performance and reduces downtime. With a robust diesel engine, large hopper, and extended conveyors, it handles heavy materials effortlessly. Optional attachments allow multi-fraction screening in a single pass, making it ideal for recycling, landscaping, and mobile operations.


  • Technical Specification

Technical Specification

SM 720.2SA
Chassis Semi-Trailer
Overall weight 24,000kg
Length x Width x Height (mm) 17,095 x 6,960 x 3,530
Engine Type Diesel: DEUTZ TCD 3.6 L4 | Electric: Three-phase motor
Tank Capacity Diesel: 400L | Electric: 150a
Output Diesel: 85 kW, 116 HP | Electric: 75 kW
Optional Extras 3rd fraction using stone grid or vibrating screen, 4th fraction using rear conveyor windsifter, 5th fraction magnetic pulley



×
