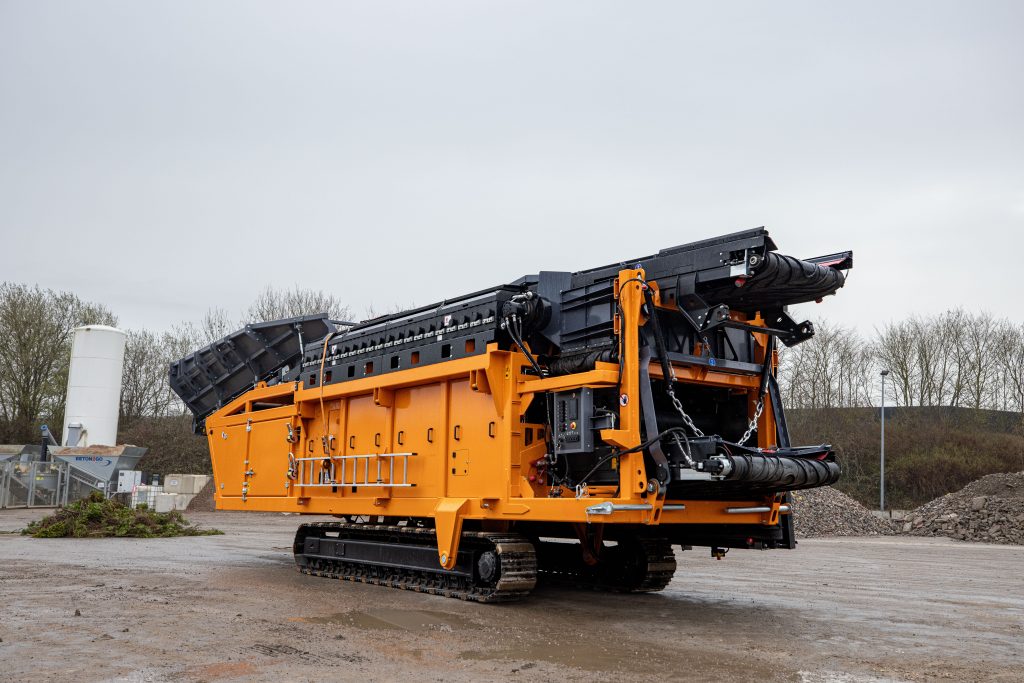

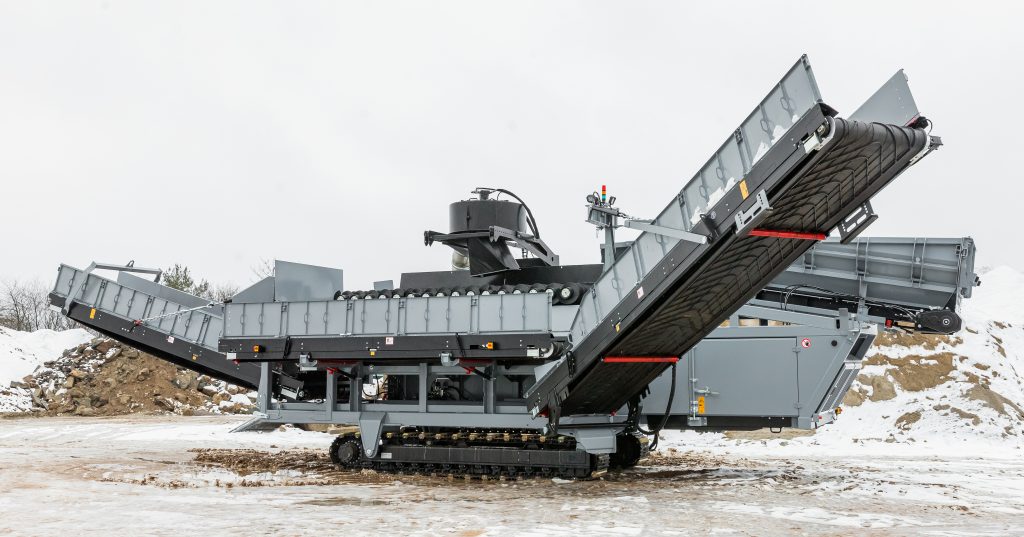

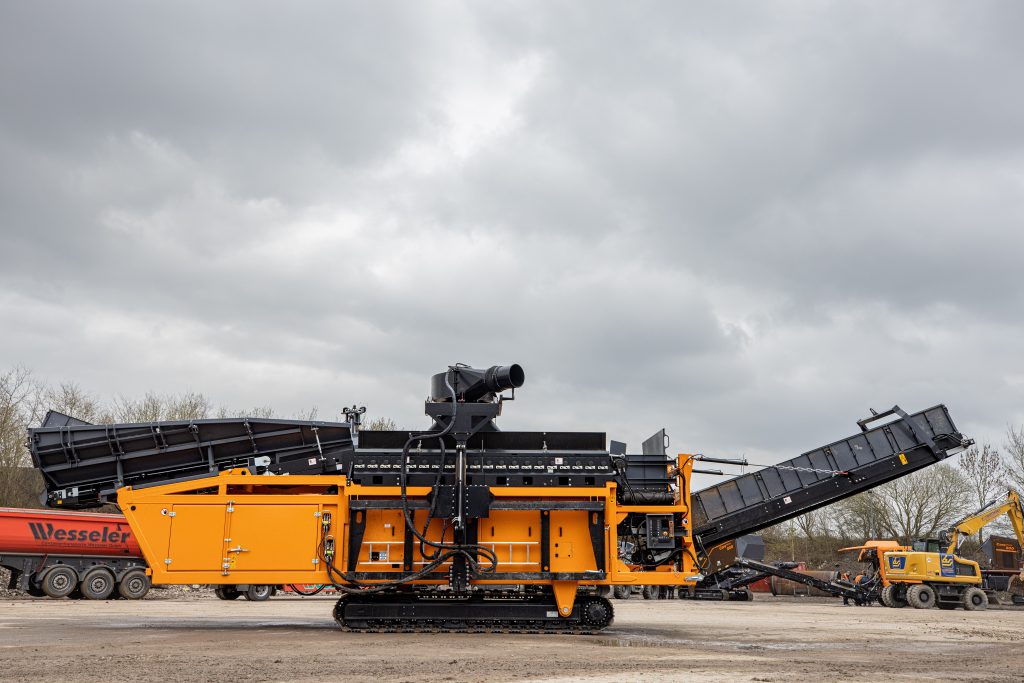

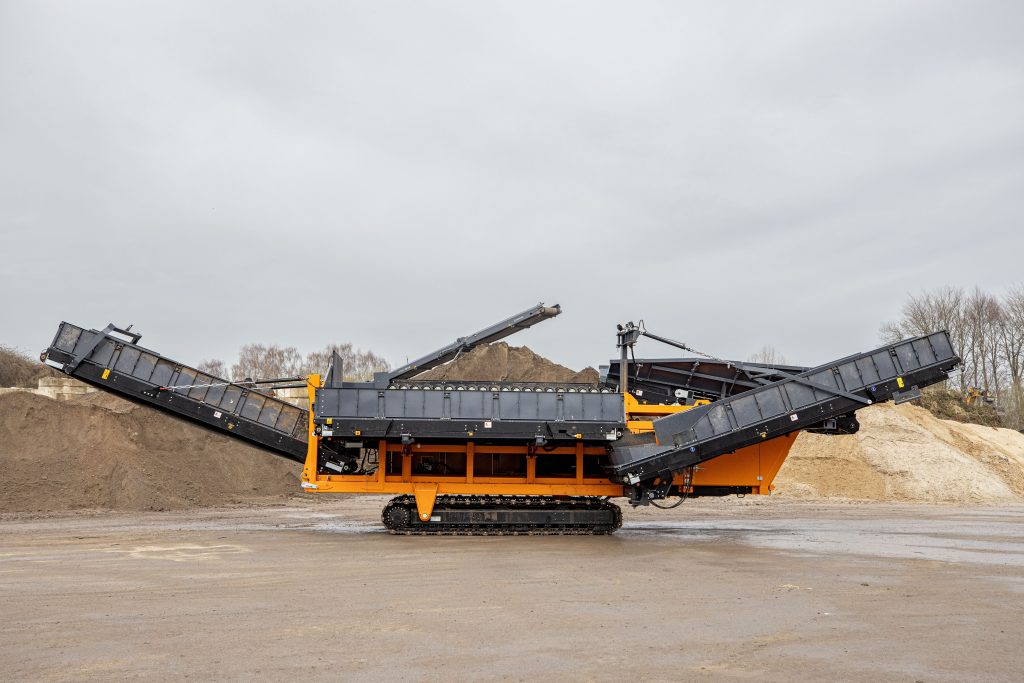

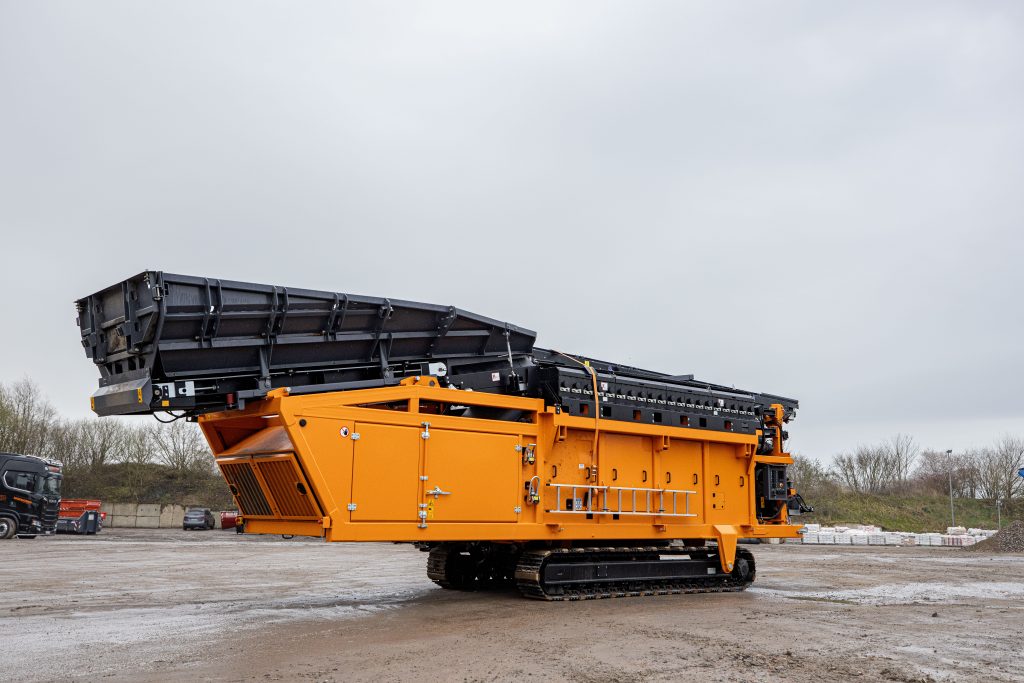

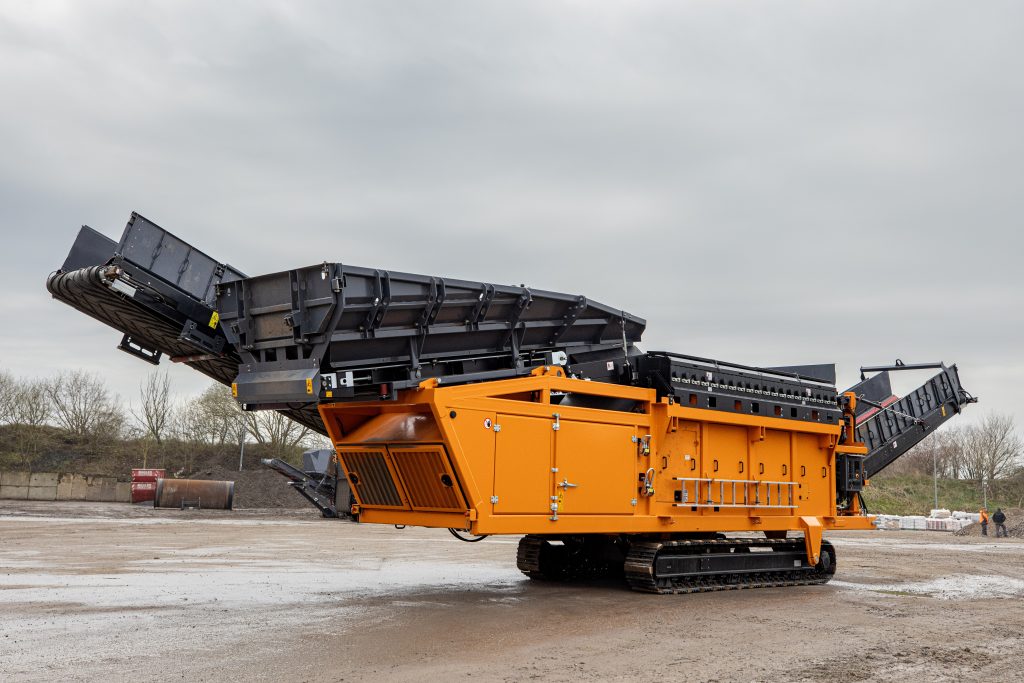

DOPPSTADT SWS 6
- Key Features
- Technical Specification
Key Features

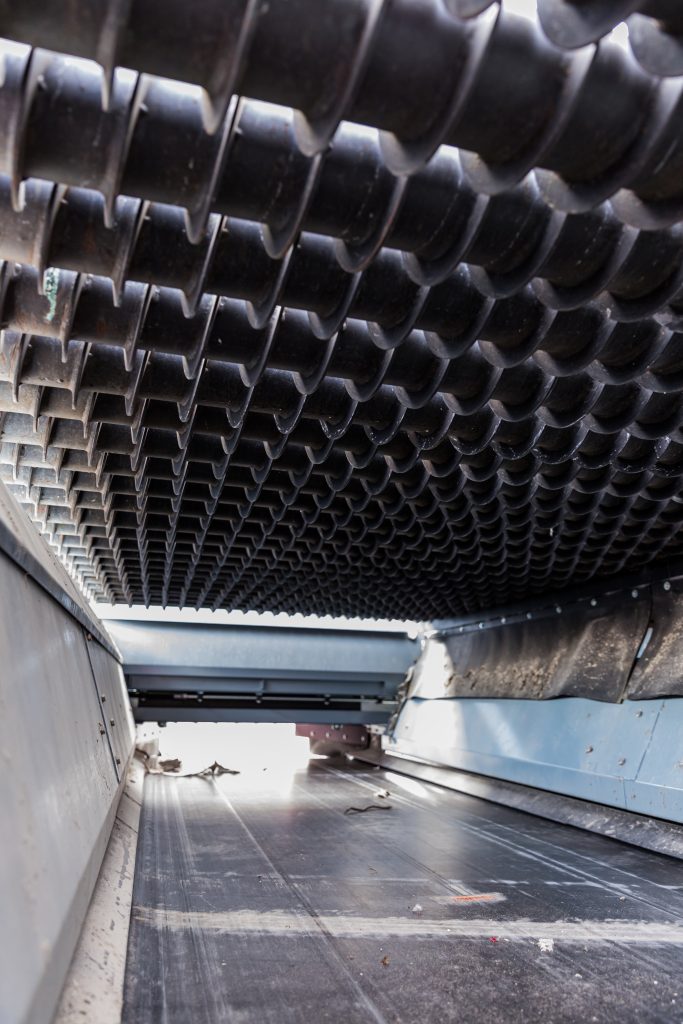

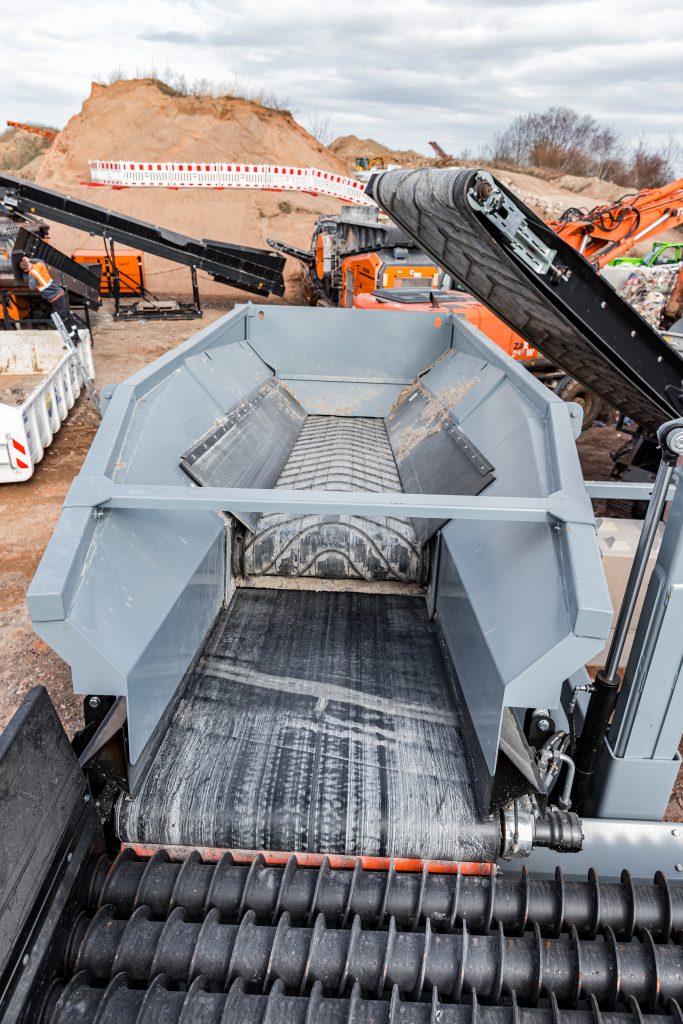

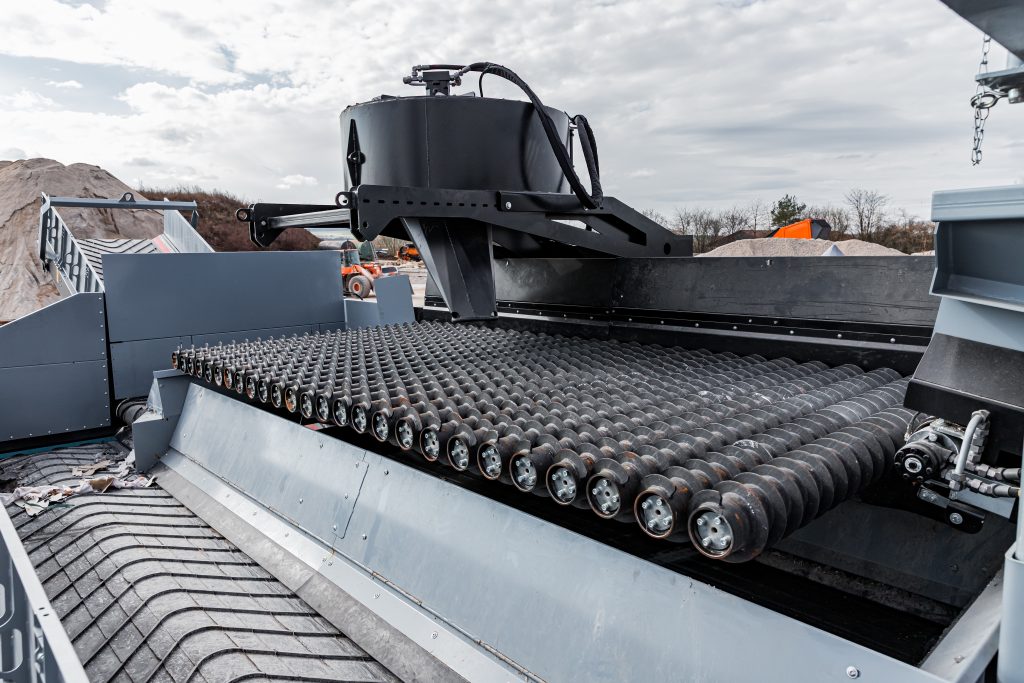

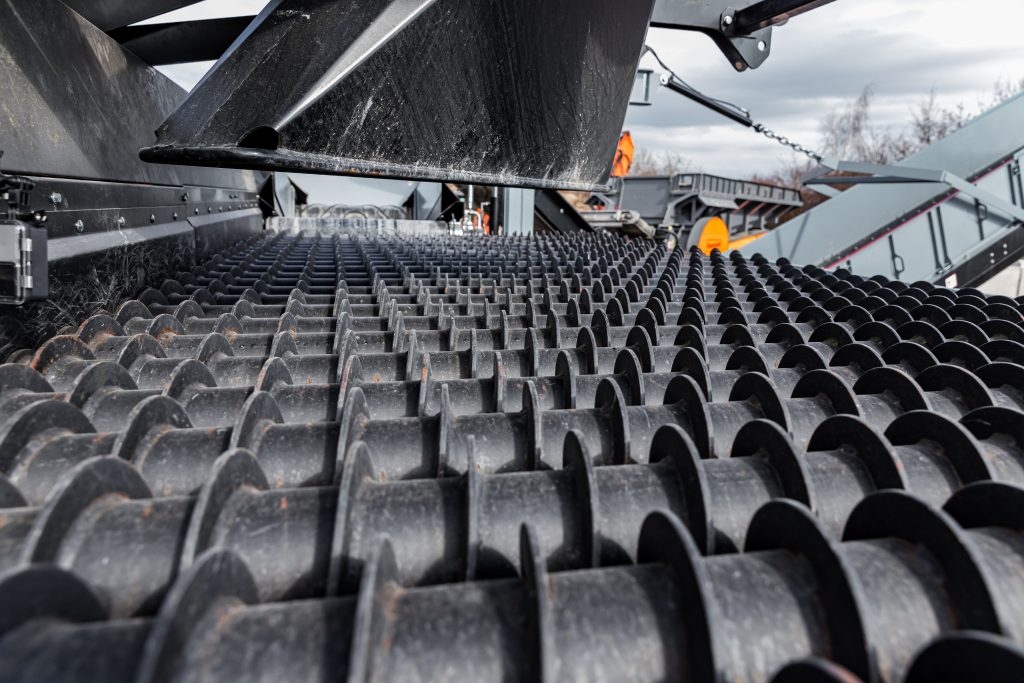

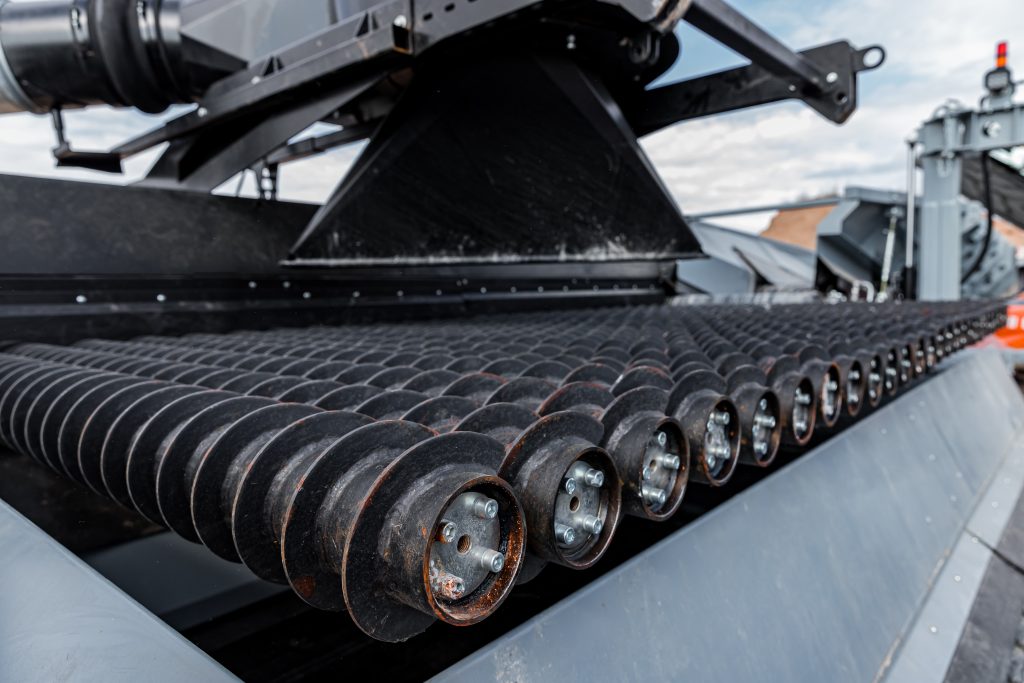

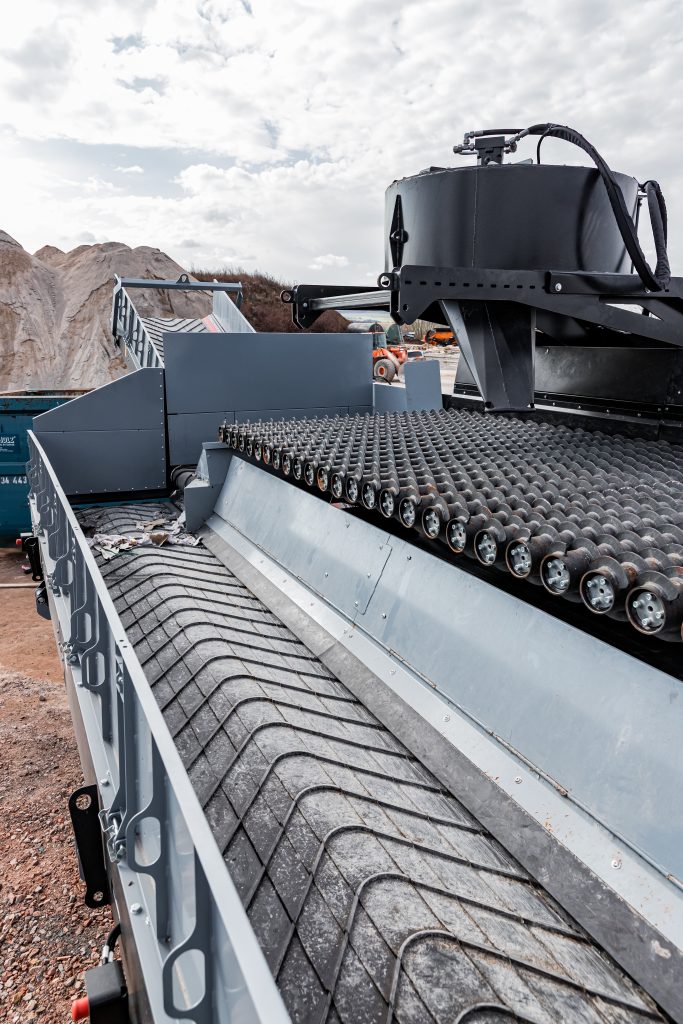

✔️ Patented Spiral Shaft Technology – Delivers efficient material separation with high throughput, reduced wrapping and consistent screening performance.
✔️ Interchangeable Screening Decks – Quickly adapt the machine to different applications with SWS spiral shaft or DST star screening configurations.

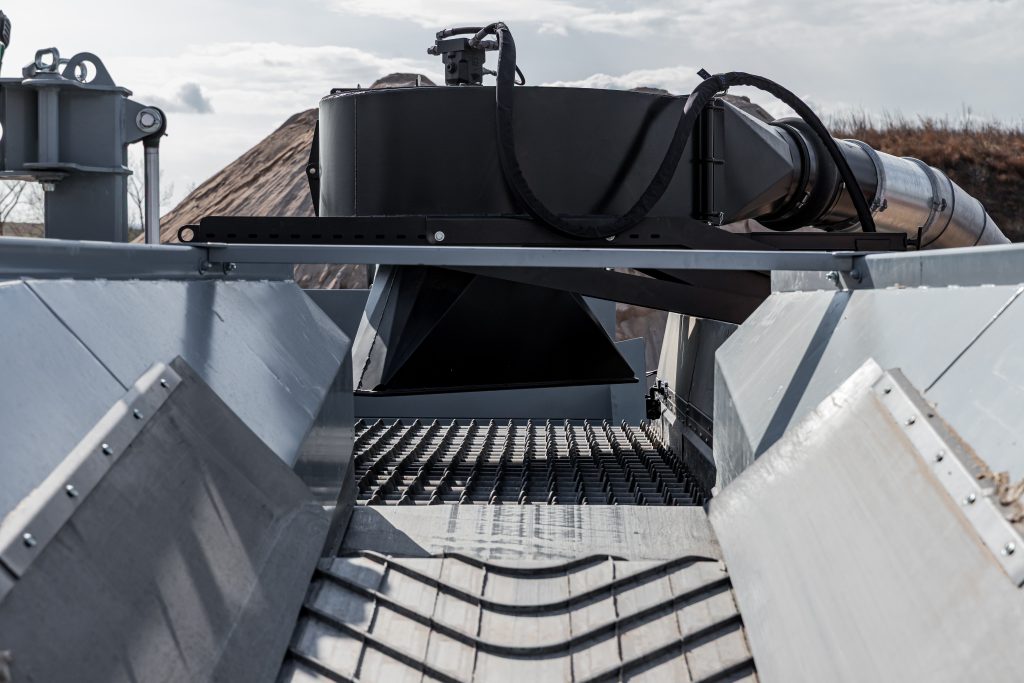

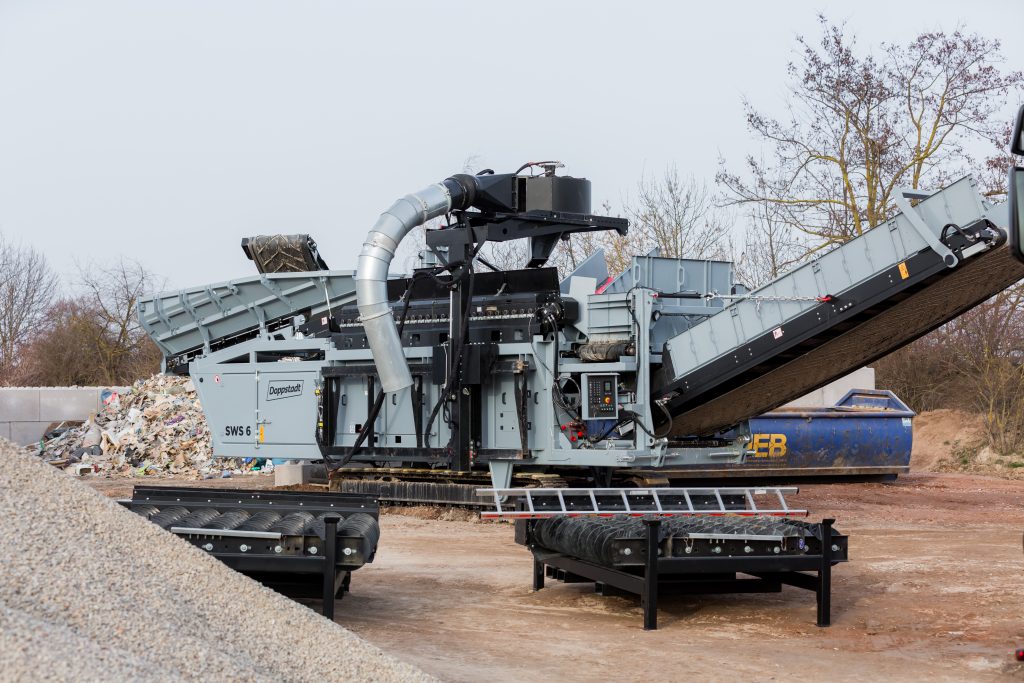

✔️ Integrated Wind Sifting Technology – Separates lightweight contaminants from heavier materials to improve product quality and recovery rates.
✔️ Highly Versatile Material Processing – Designed to process compost, biomass, soil, wood waste, construction & demolition waste and mixed recycling streams.
✔️ Flexible Mobile Processing Solution – Available in multiple configurations for easy integration into existing recycling systems.
✔️ Precise Separation Performance – Adjustable screening and air separation settings allow operators to optimise output quality.
✔️ High Throughput & Continuous Operation – Engineered for demanding recycling environments requiring reliable material processing.
✔️ Compact & Easy Integration – Designed to work seamlessly with shredders, screens and complete processing lines.
Technical Specification
| Specification | Value |
|---|---|

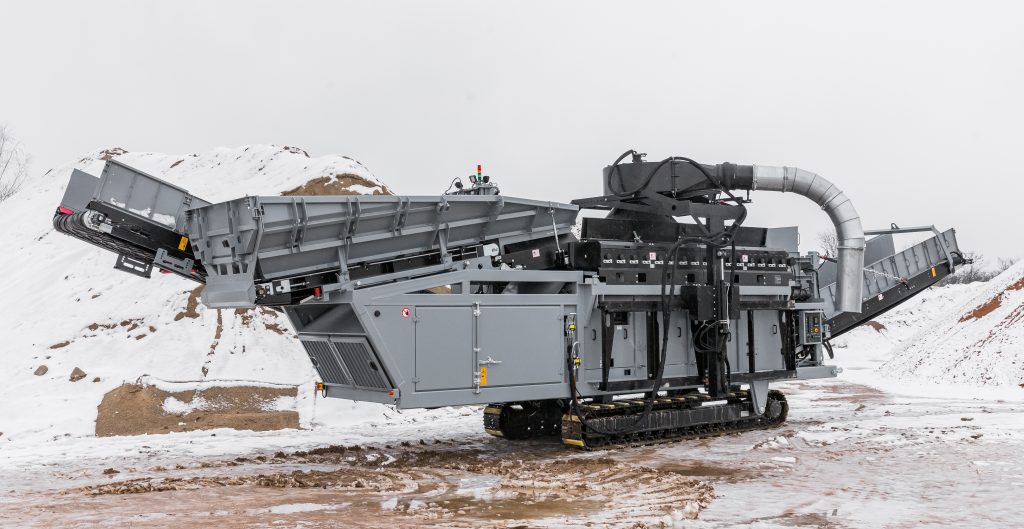

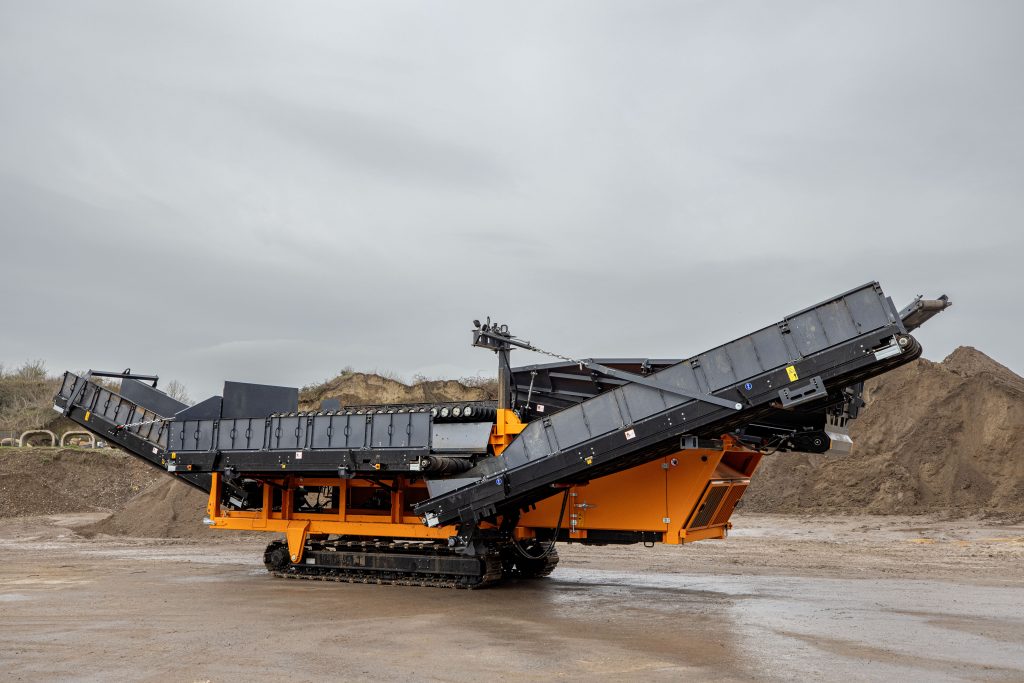

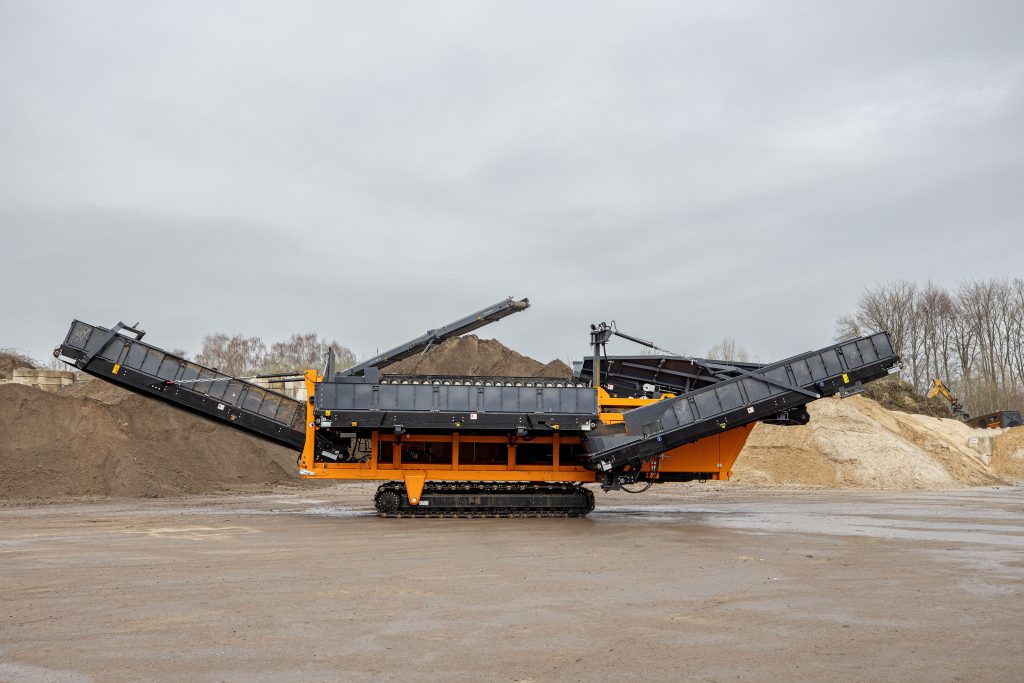

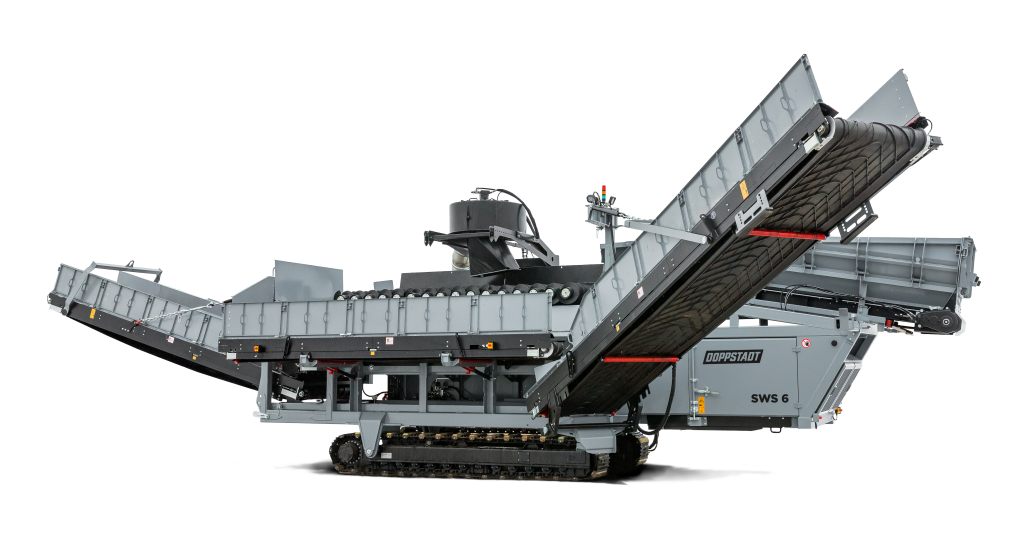

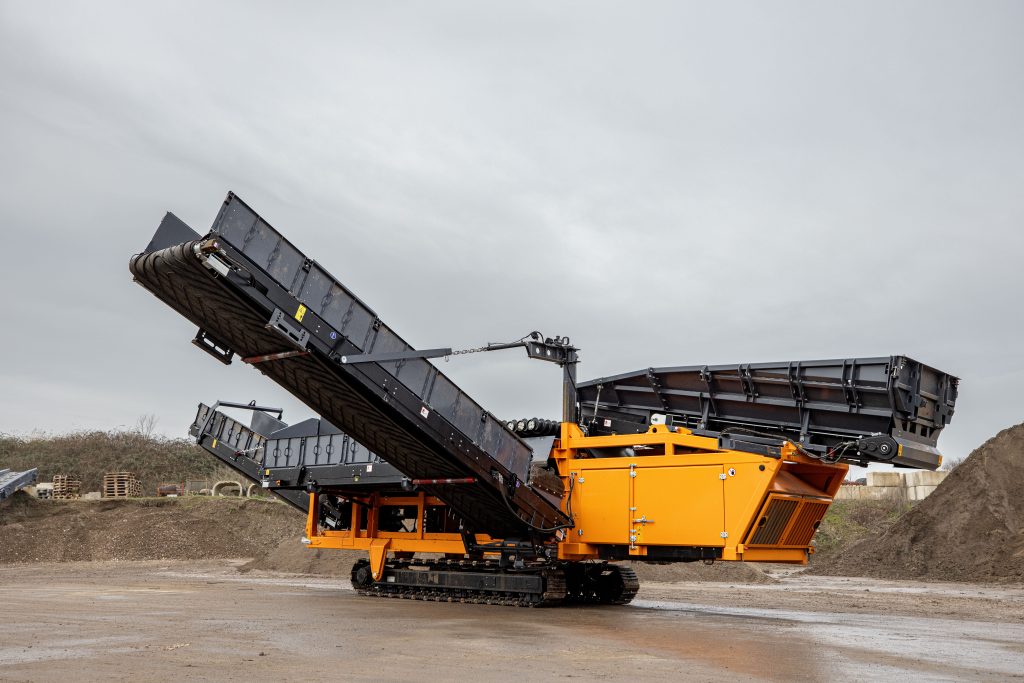

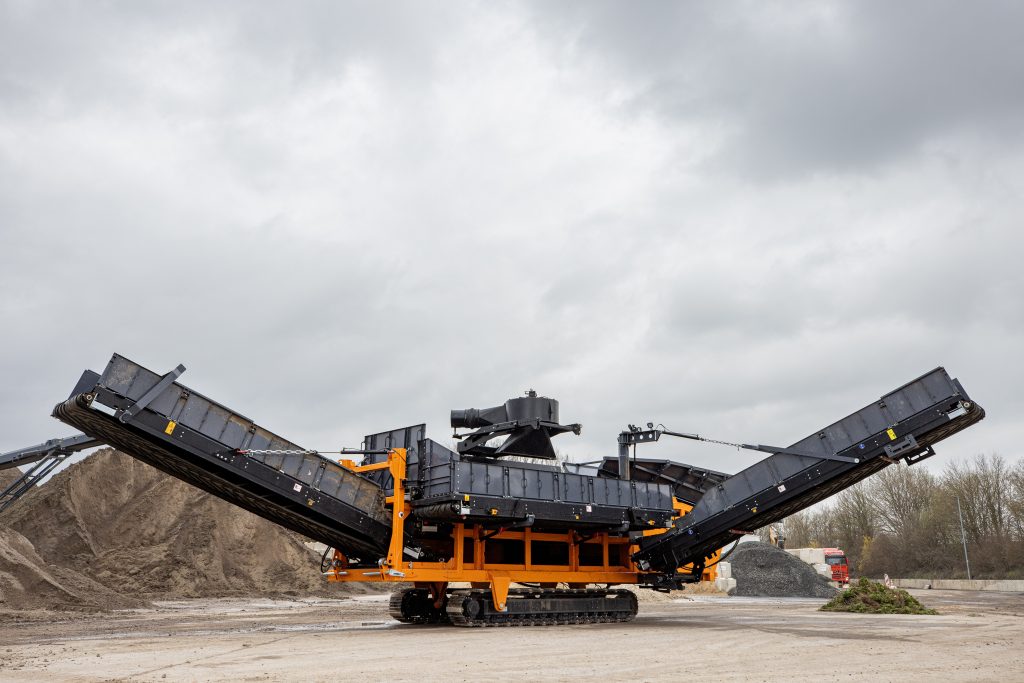

| Machine Type | Mobile Spiral Shaft Separator |
| Configuration | Tracked Mobile Unit |
| Screening System | Patented Spiral Shaft Technology |
| Screening Area | Approx. 8.3 m² |

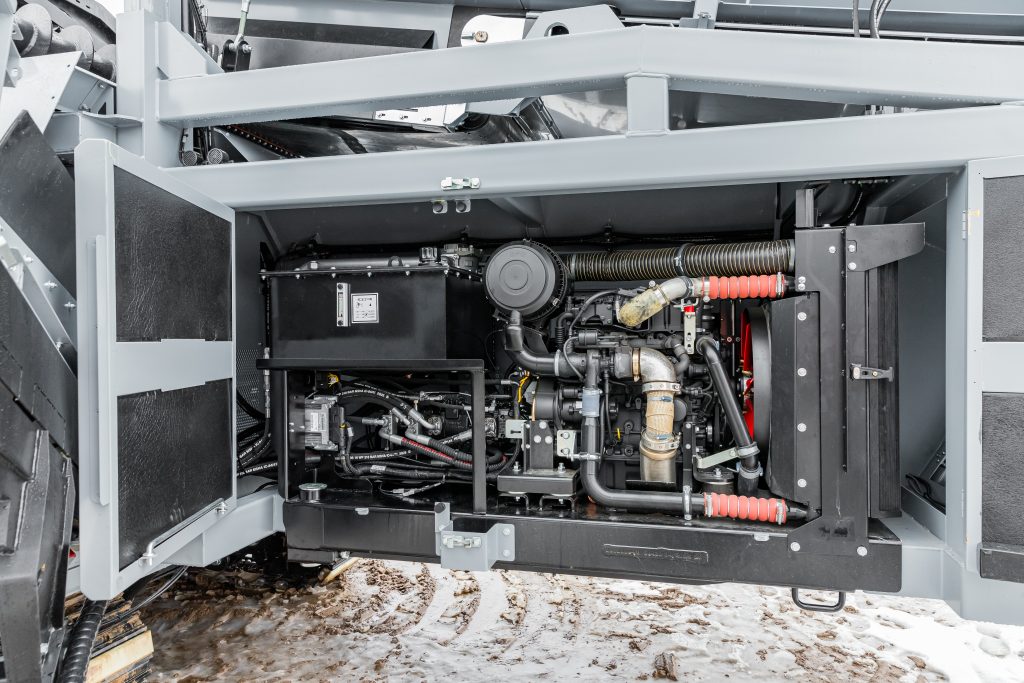

| Engine | Deutz TCD 2.9 L4 |
| Power | 55 kW (75 hp) |
| Drive | Diesel-hydraulic |
| Hopper Volume | Approx. 4 m³ |

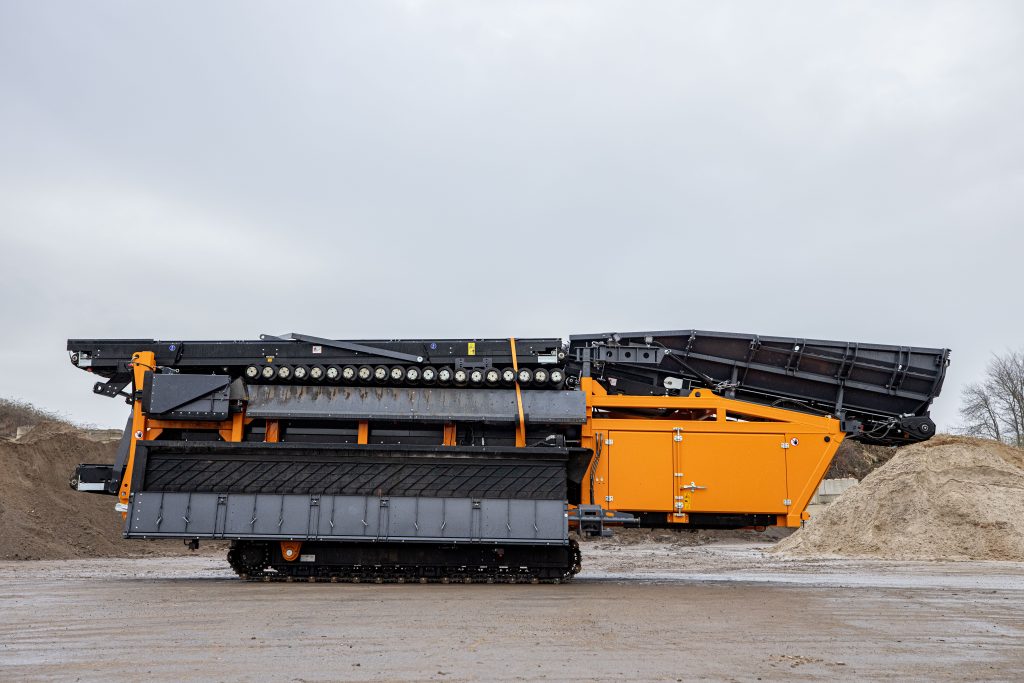

| Dimensions (L × W × H) | Approx. 11.7 × 3.0 × 3.4 m (transport position) |
| Weight | Approx. 26,500 kg |
