Arjes Ekomaxx 800

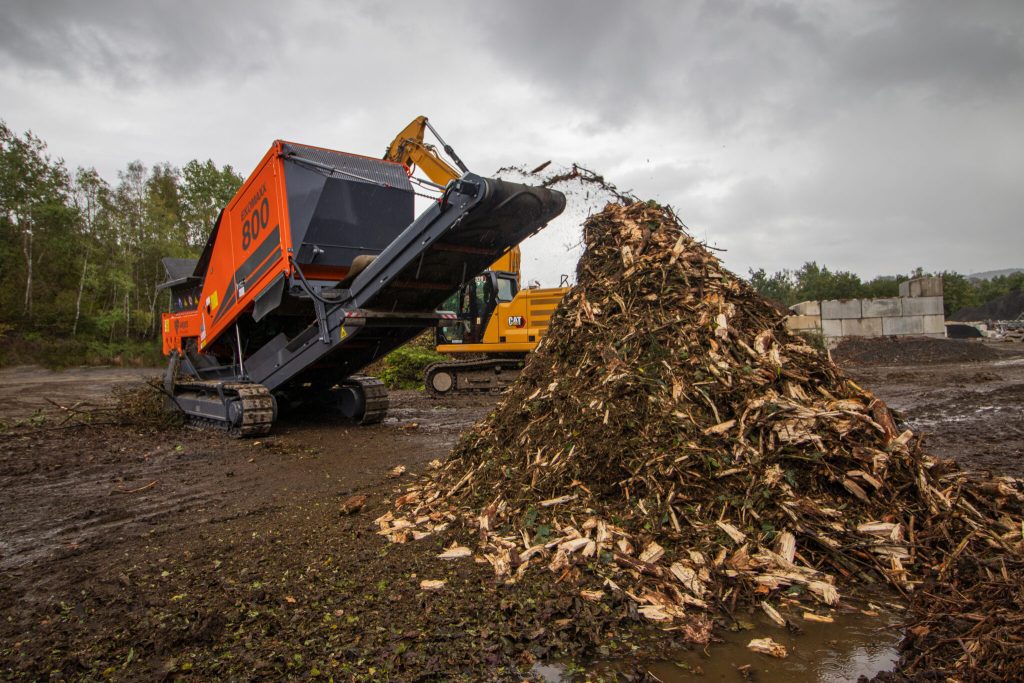

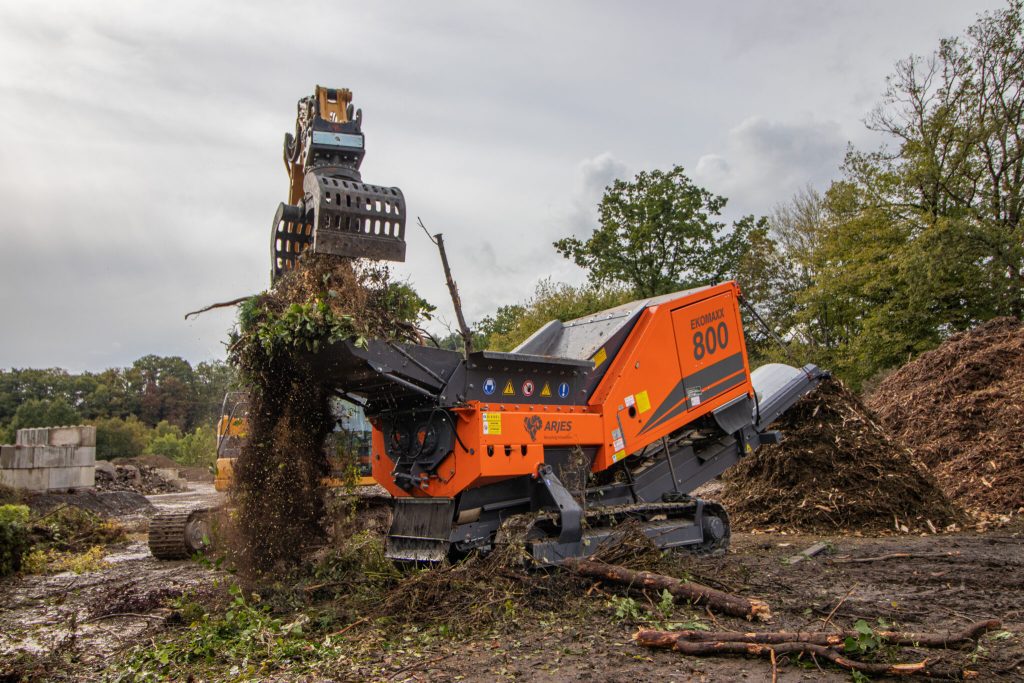

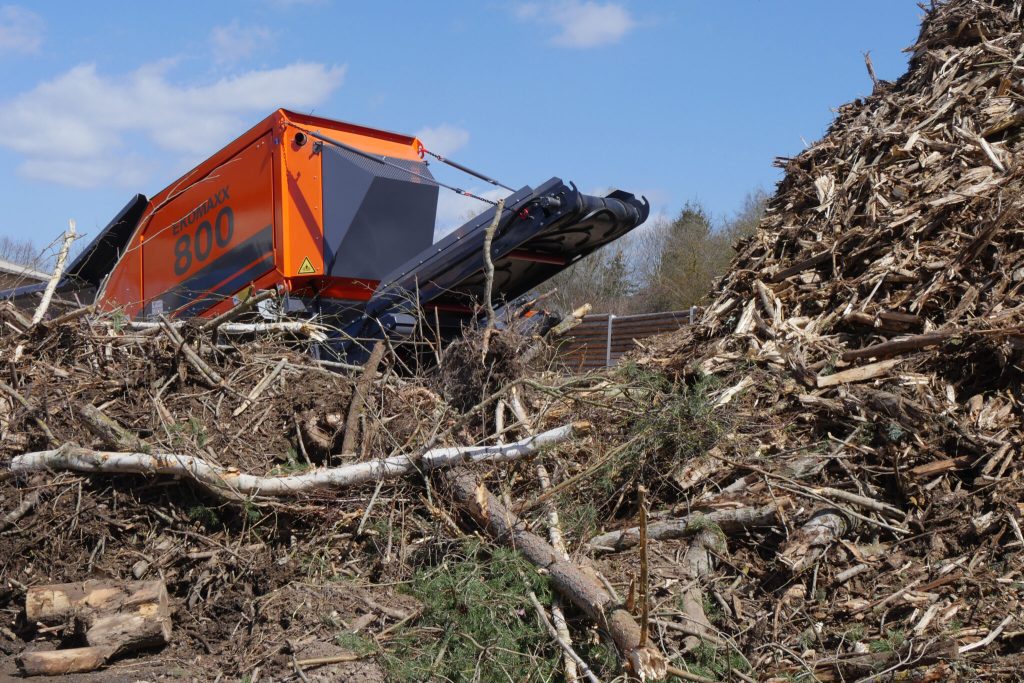

The mobile shredder from Arjes’ intermediate class boasts advantages that are characteristic of the standard ARJES design. The Arjes EKOMAXX 800 features a hydraulically adjustable tilting hopper for easy loading with a wheel loader, with a shovel width of up to 3.60 m (10 ft). The shredding unit can also be outfitted with a 180° adjustable tilting hopper. Additionally, it includes mechanically adjustable side combs that can be opened or closed based on the material and customer needs, allowing for a reduction in output size or an increase in throughput rate. A revolutionary shaft quick-change system minimizes maintenance times, facilitates refurbishment, and allows for the swapping of different shaft types to ensure continuous operation, along with many other features. Typical users of this equipment are primarily found in composting and wood processing industries, as well as in the handling of domestic and commercial waste.
- Product Descriptions
- Shredder Packages
- Technical Specification
- Video
Product Descriptions
Features at a glance…

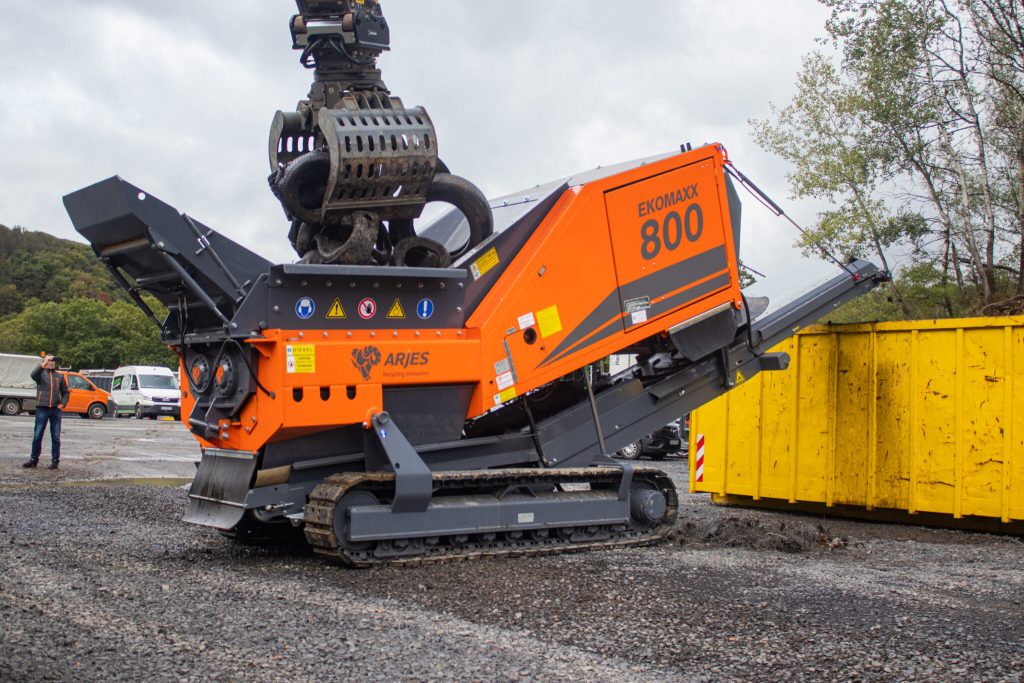

⚙️Hydraulically adjustable tilting hopper

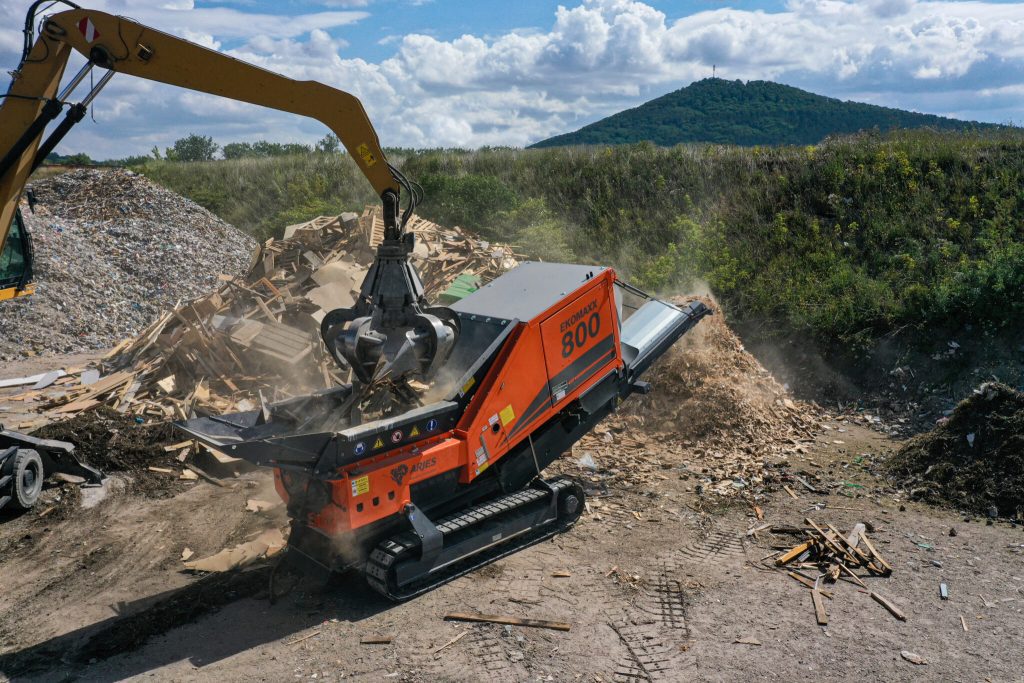

Loads with a wheel loader; shovel width of up to 3.60 m (10 ft): The shredding unit can be equipped with a 180° adjustable tilting hopper.
⚙️Mechanically adjustable side combs
The side combs can be opened or closed, depending on the material and customer requirements; decreasing the output size or increasing the throughput rate.

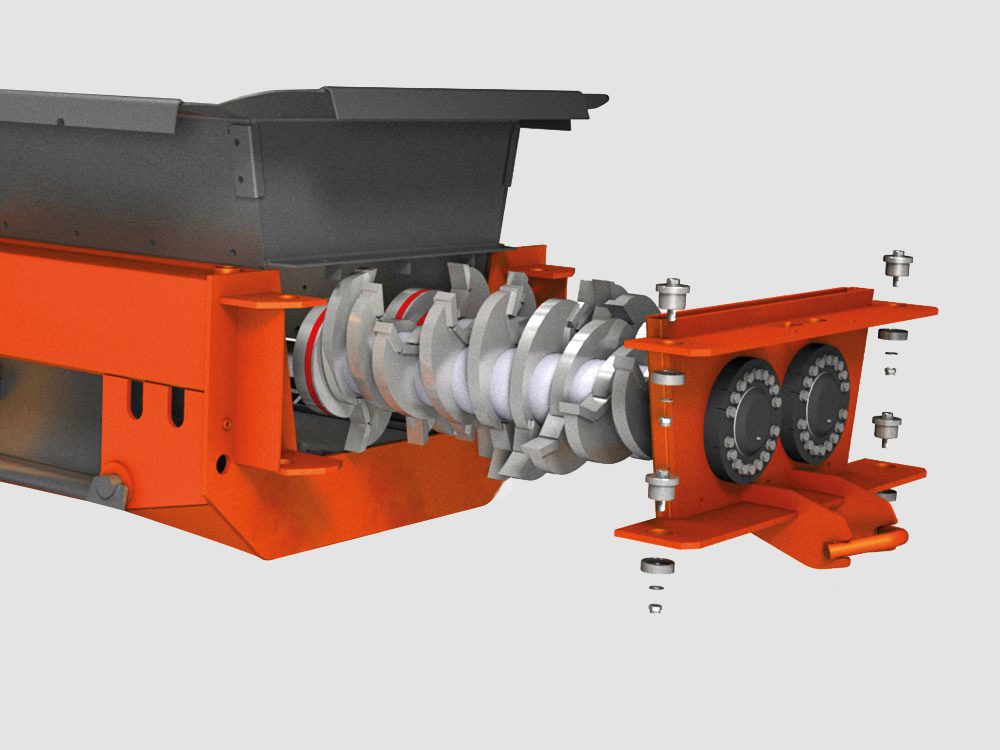

⚙️Revolutionary shaft quick-change system
Shortens maintenance times, refurbishment and changing of different shaft types for uninterrupted operation
⚙️Optional Hydraulically adjustable tilting hopper
Higher loading capacity and operability when loading the shredder

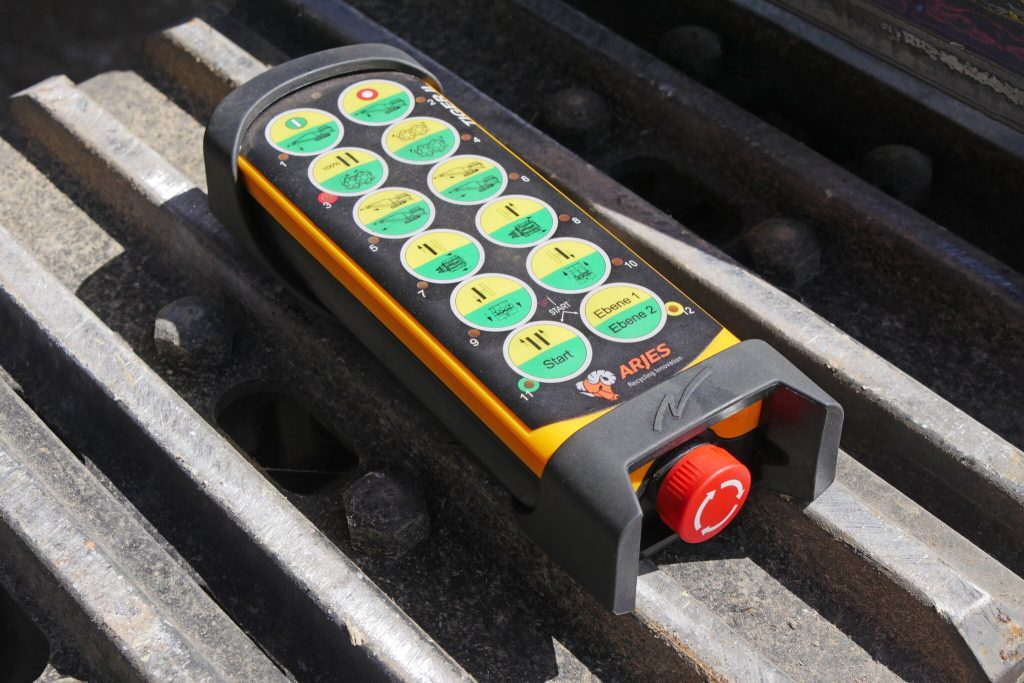

⚙️Innovative SCU plug-and-play control
Predefined shredding programs that control rotation and speed of shafts for user-friendly operation
Shredder Packages
Technical Specification

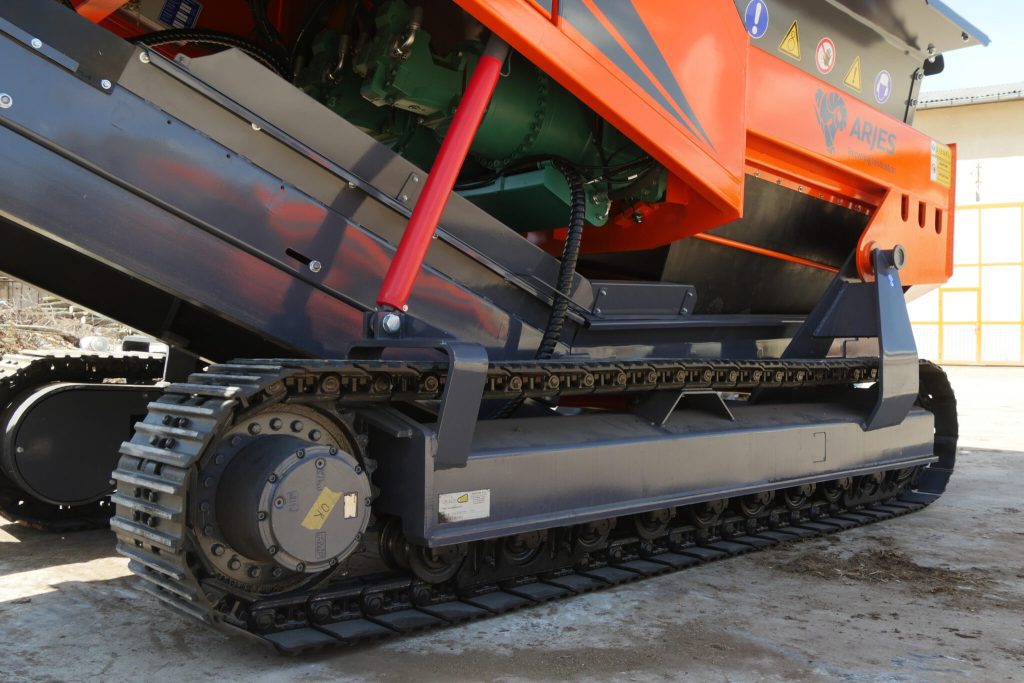

| TRACKS | |
|---|---|
| Length (mm) | 9.300* / 8.100 (Transport) |
| Width (mm) | 2.450 / 2.450 (Transport) |
| Height (mm) | 4.000 / 3.100 (Transport) |
| Total weight (kg) | Total weight (kg) |
| DRIVE | |
|---|---|

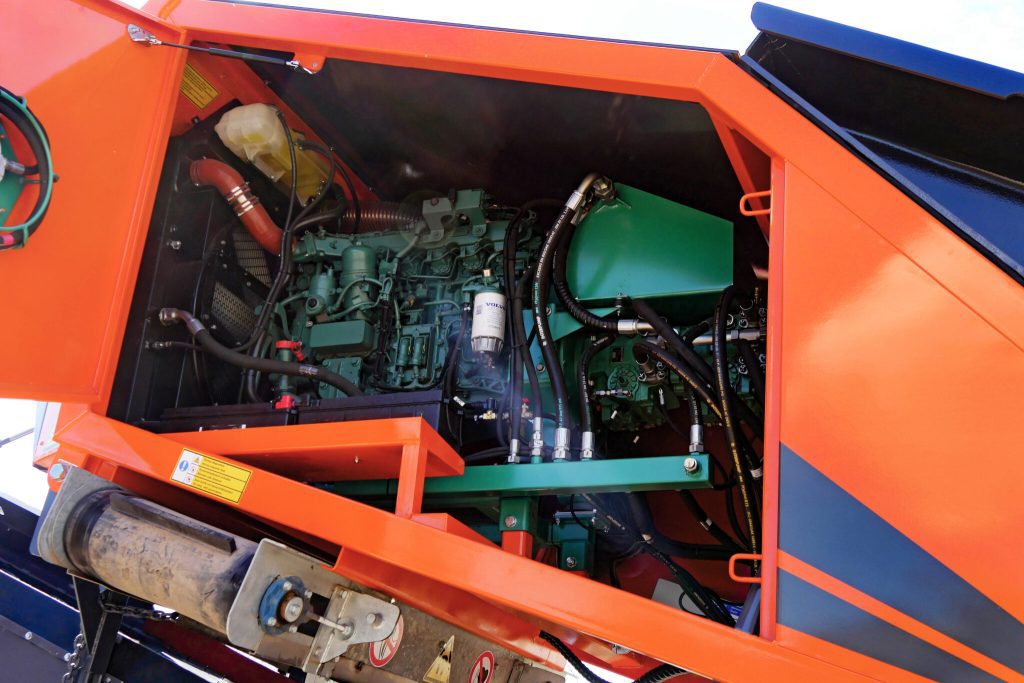

| Engine | Volvo Penta TAD 883 VE |
| Power (kW / HP) | 235 / 320 |
| Fuel capacity (l) | 400 |

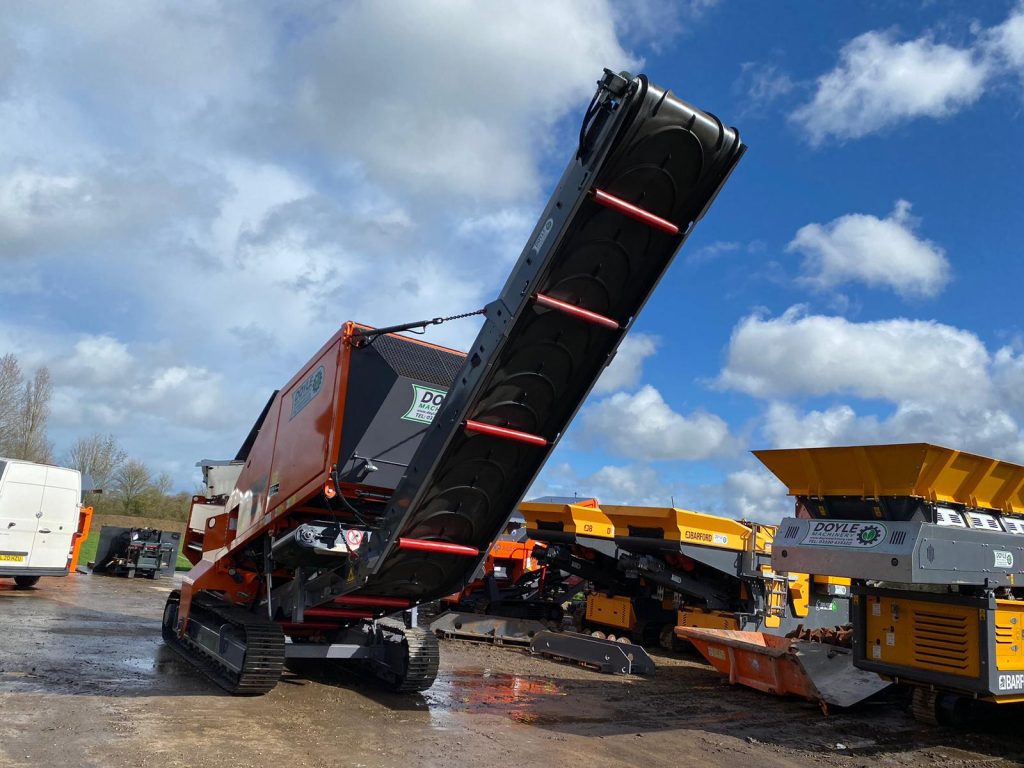

| DISCHARGE BELT | |
|---|---|
| Discharge Height (mm) | 3.300 |
| Width (mm) | 1.000 |

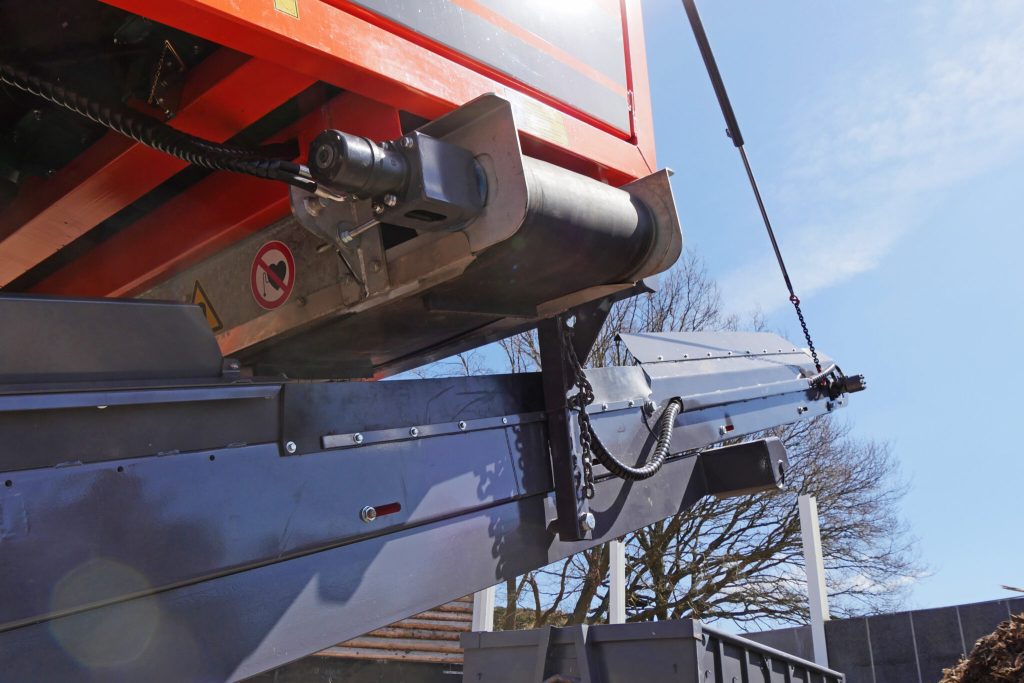

| Included | Over-belt magnet |

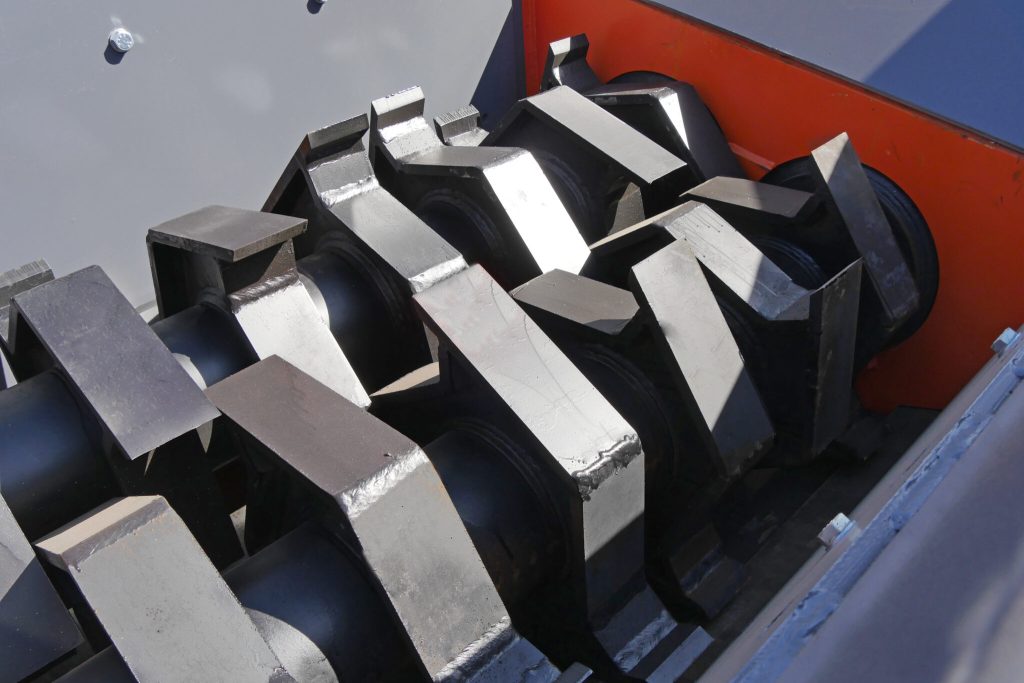

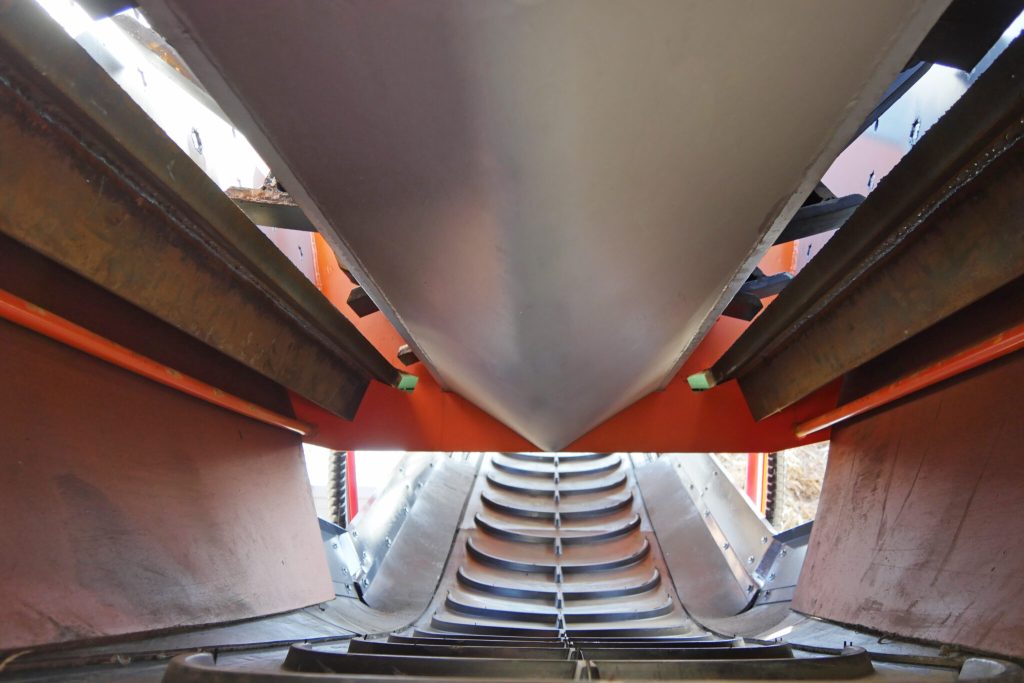

| SHREDDING UNIT | |
|---|---|
| Shaft length (mm) | 2.000 |
| Shaft diameter (mm) | 680 |
| Weight (kg / cassette) | 2.500 |
| Rotation speed (rpm) | approx. 42 |
