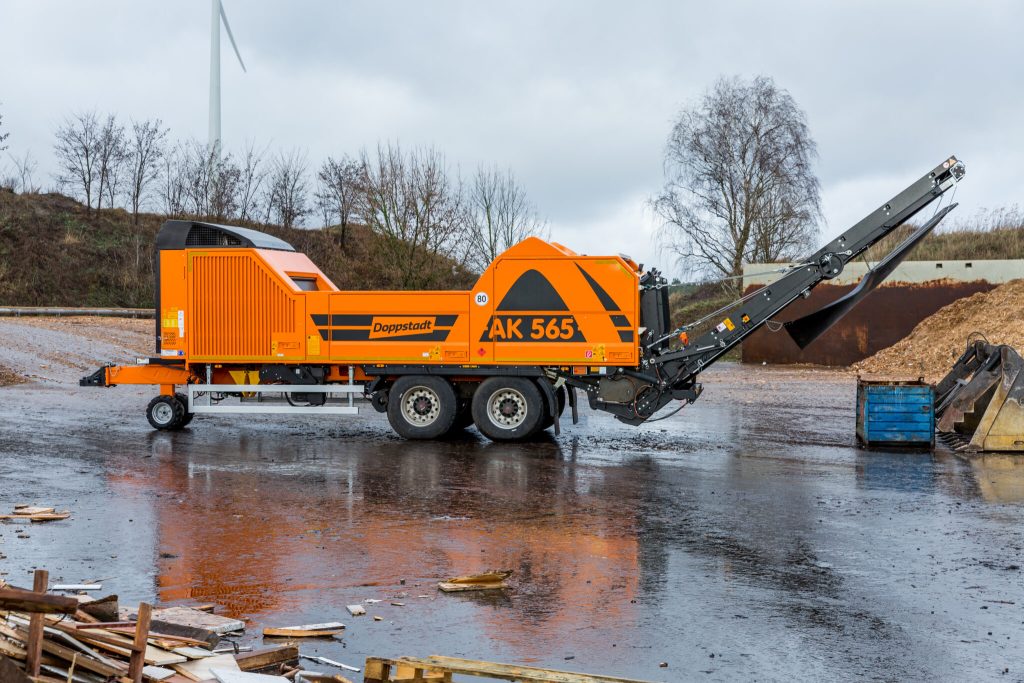

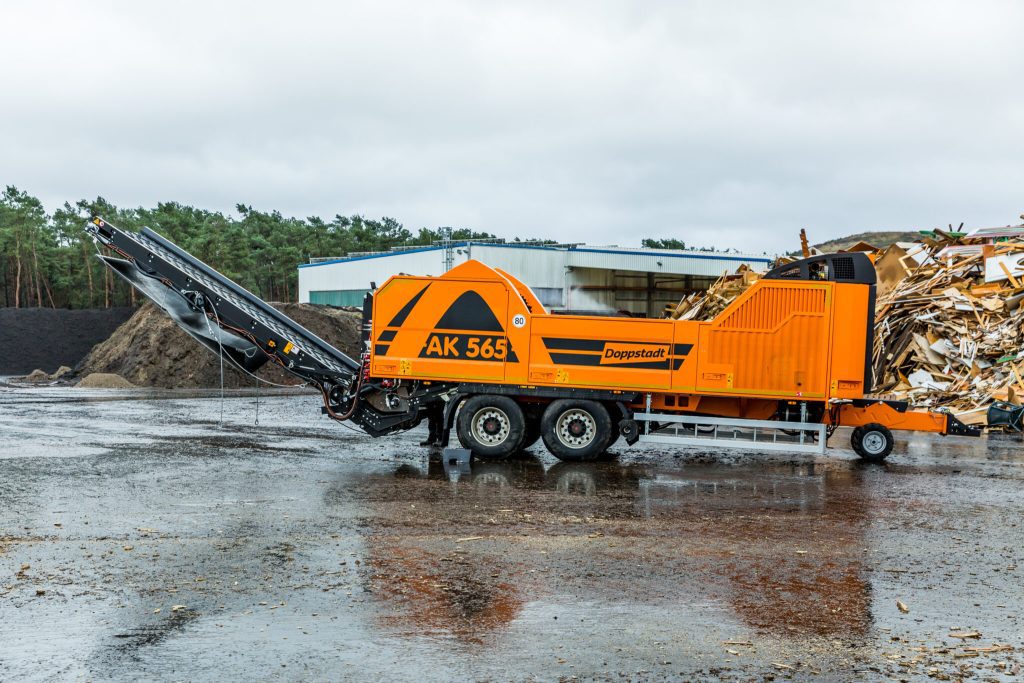

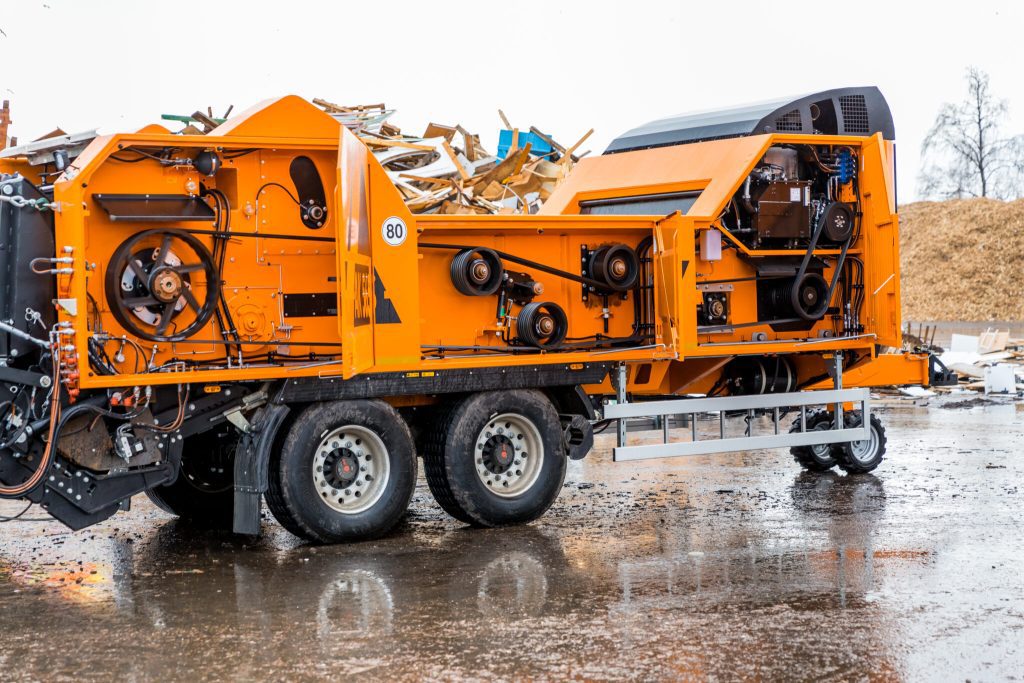

Doppstadt AK 565
Discover the Full Range: AK Brochure

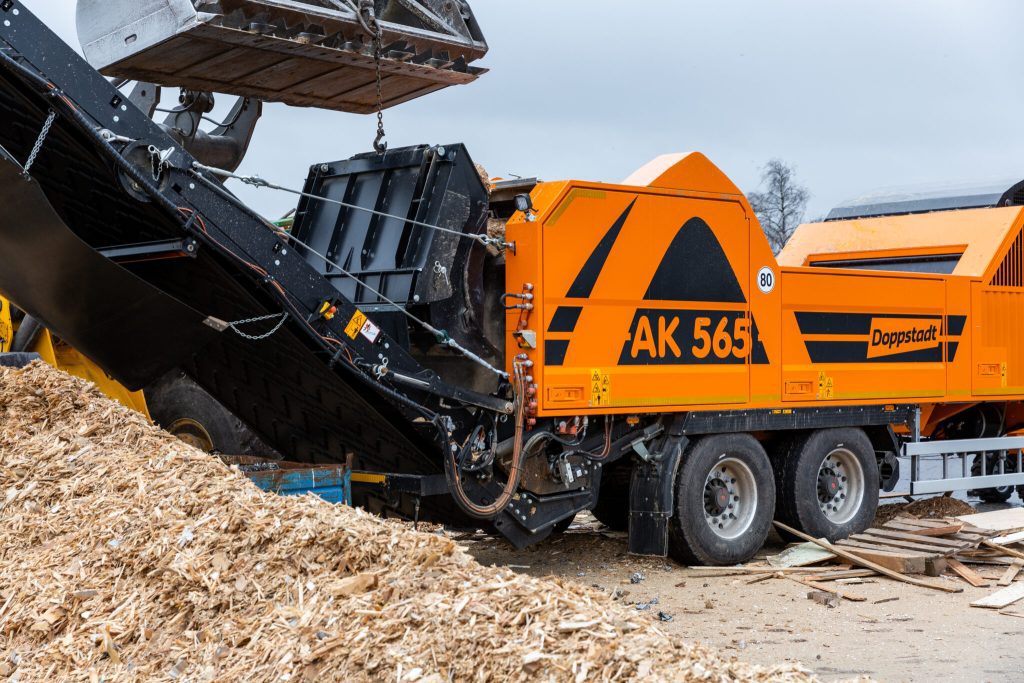

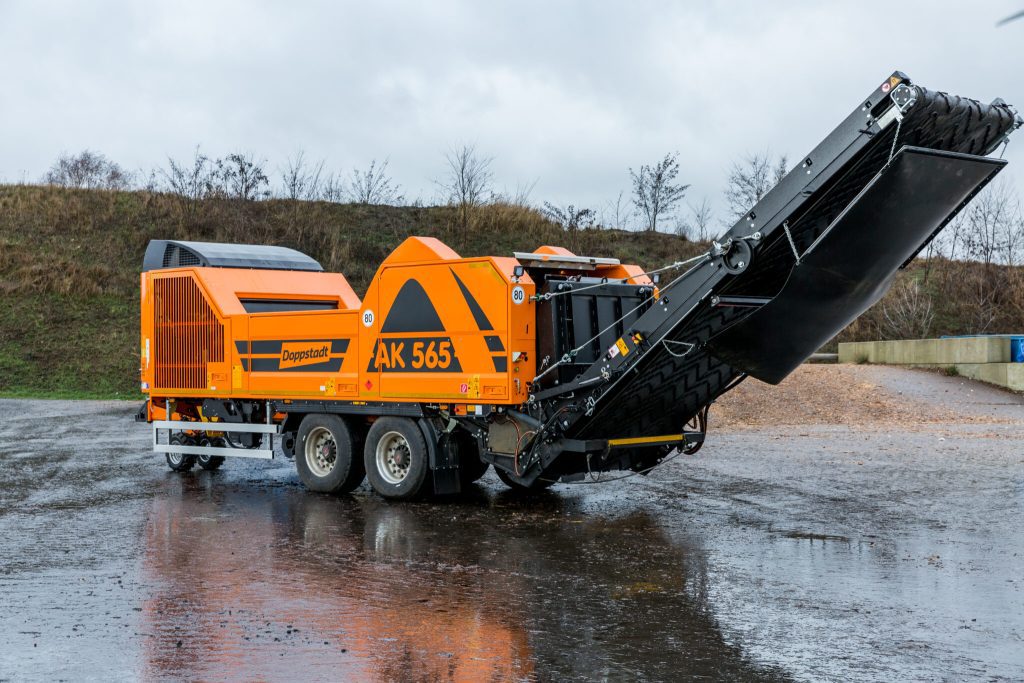

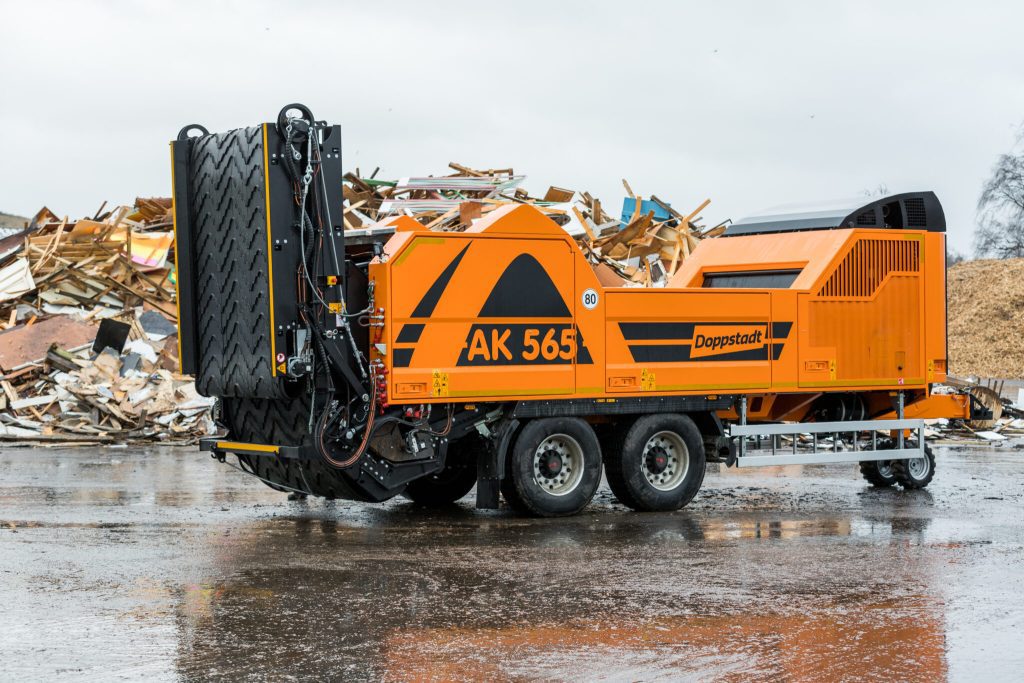

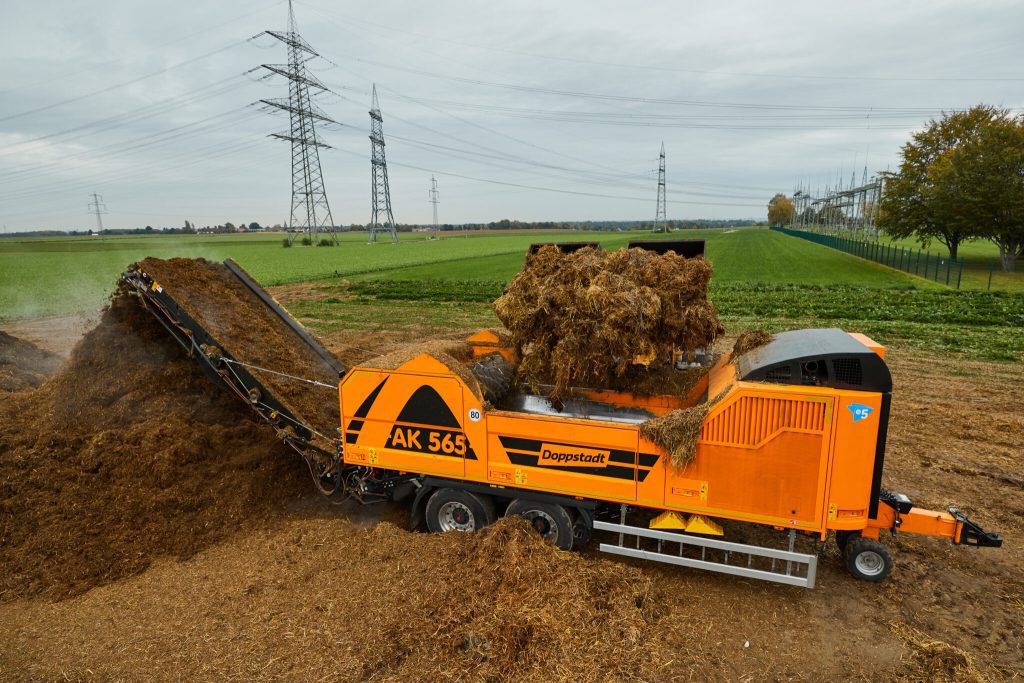

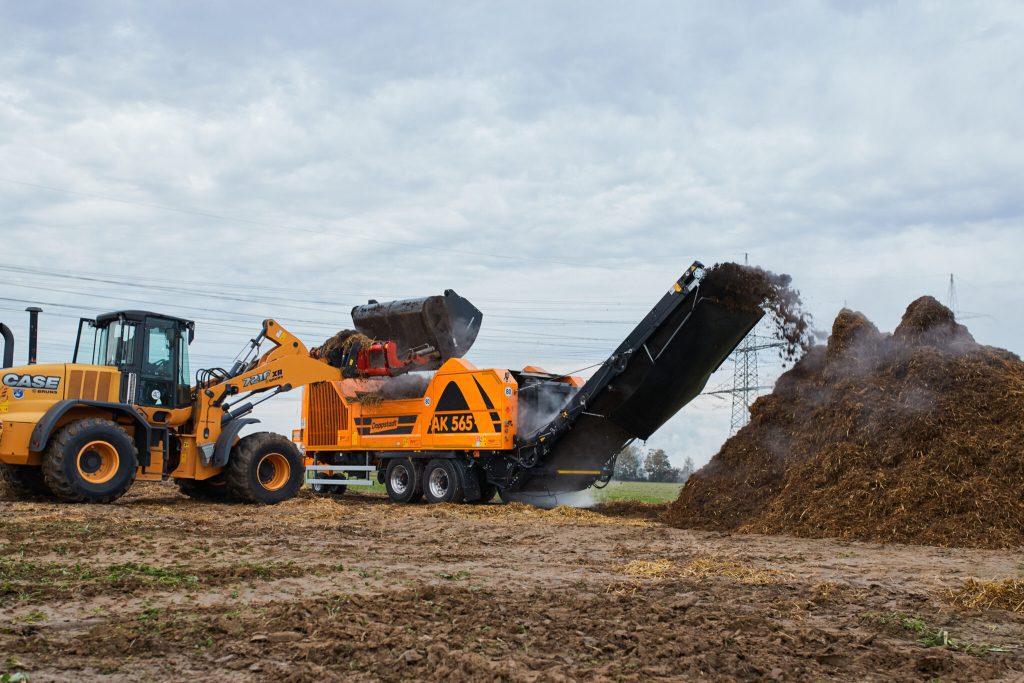

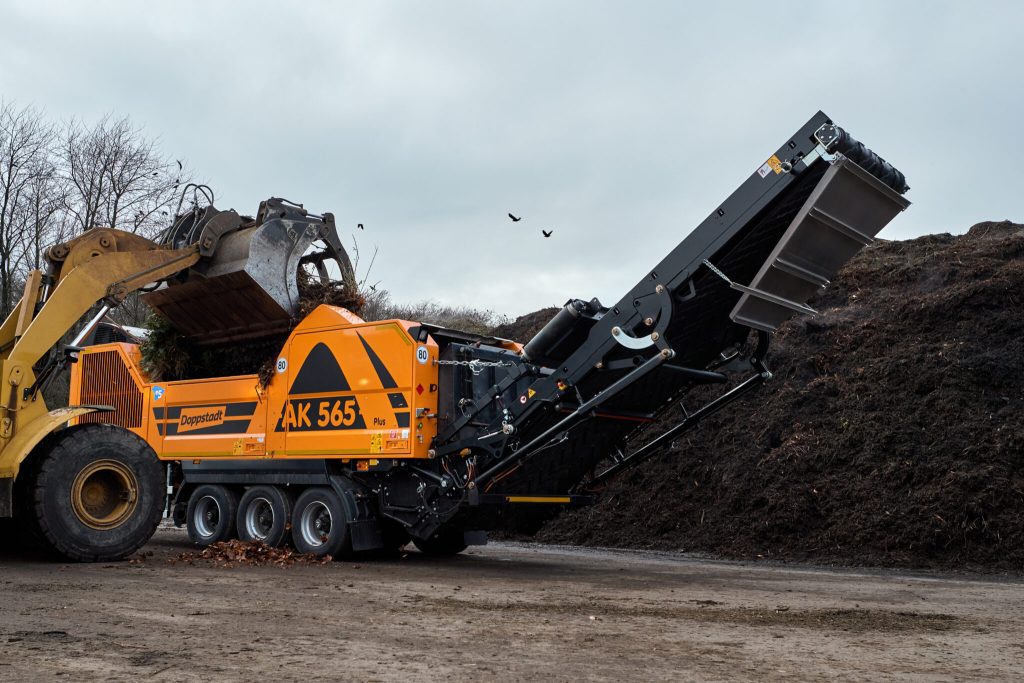

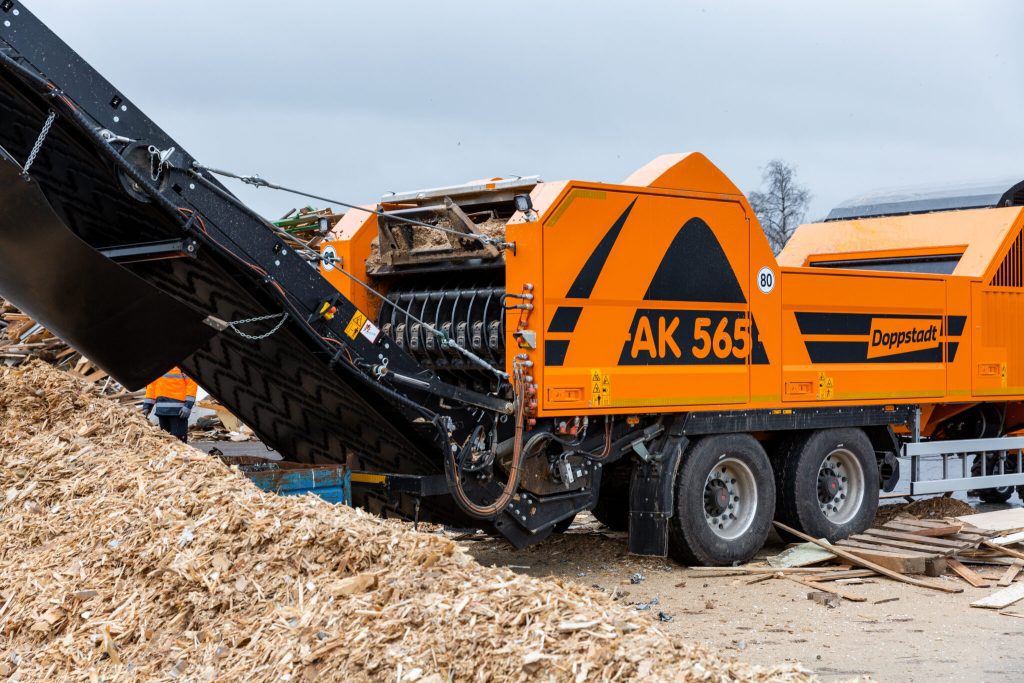

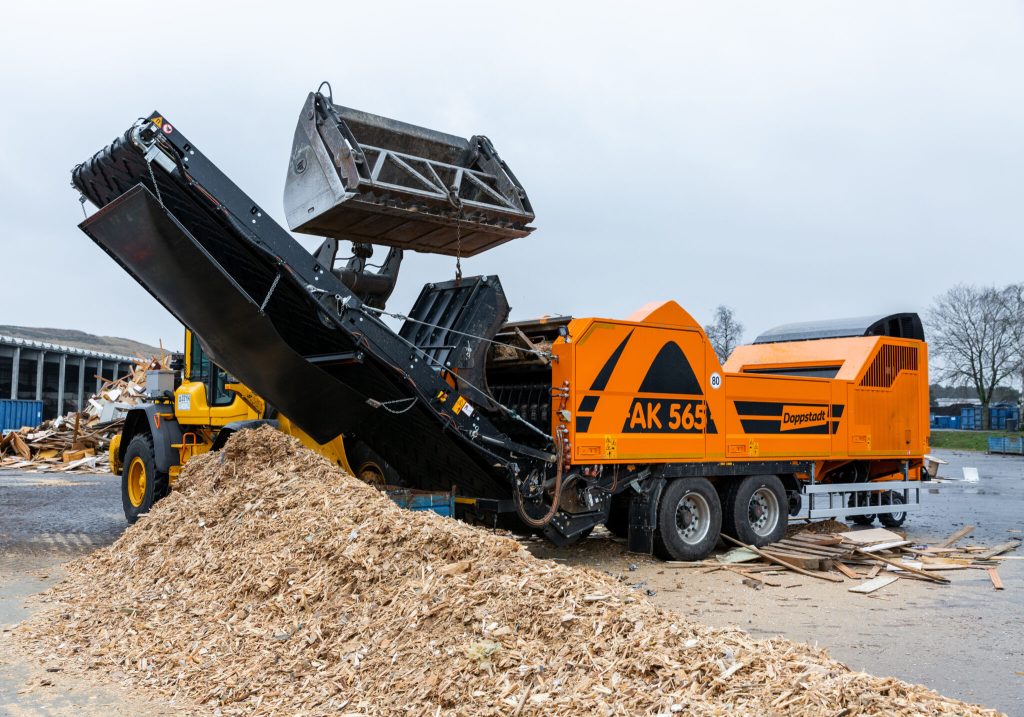

The AK 565 is a compact and robust High-Speed Shredding unit designed for flexible use in a wide range of material processing applications. Its solid construction and proven shredding technology ensure reliable performance when processing materials such as compost, biomass, wood waste, and soil.
- Product Descriptions
- Technical Specification
- Video
Product Descriptions

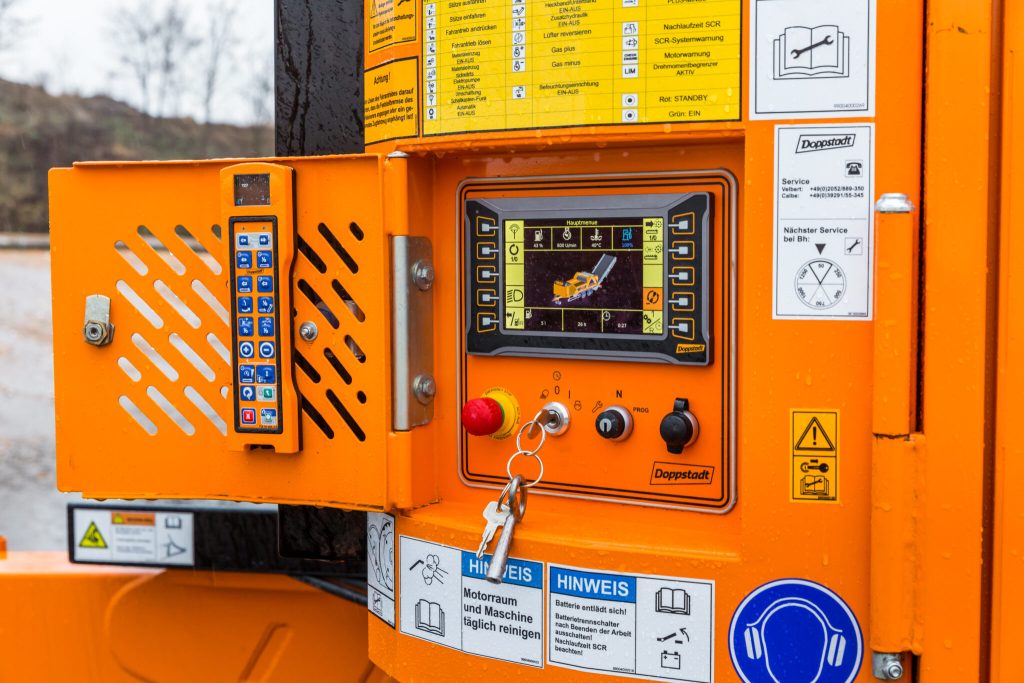

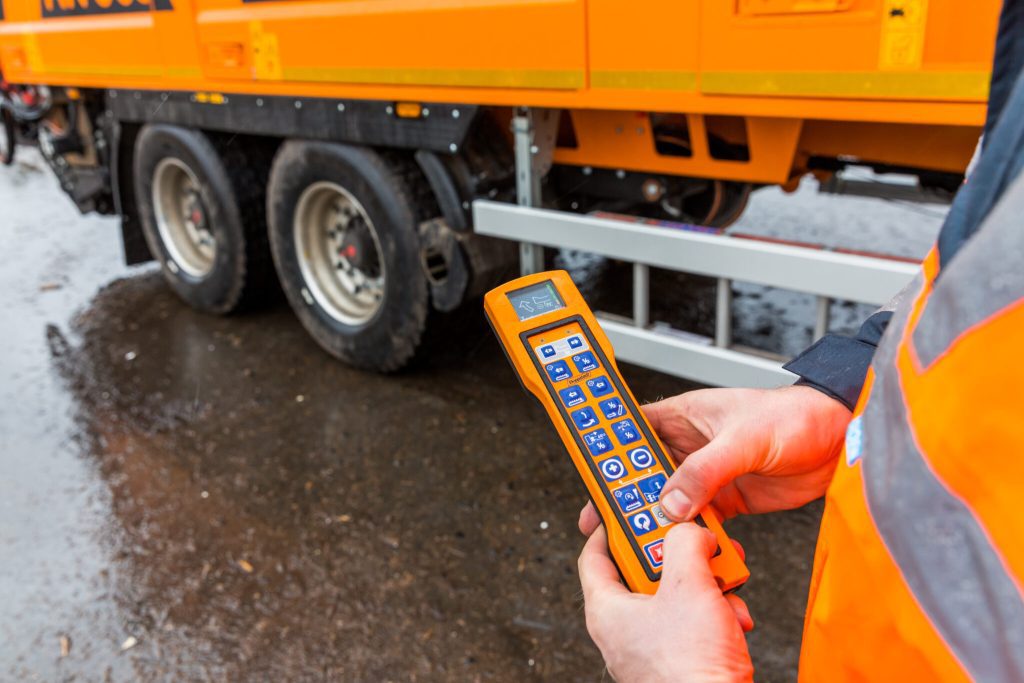

Designed for easy handling and efficient operation, the AK 565 combines a space-saving layout with straightforward machine control. This makes it particularly suitable for operators requiring a dependable shredding solution with low setup effort and high operational availability.
Technical Specification
| AK 565 | AK 565K | AK 565 PLUS | |
|---|---|---|---|

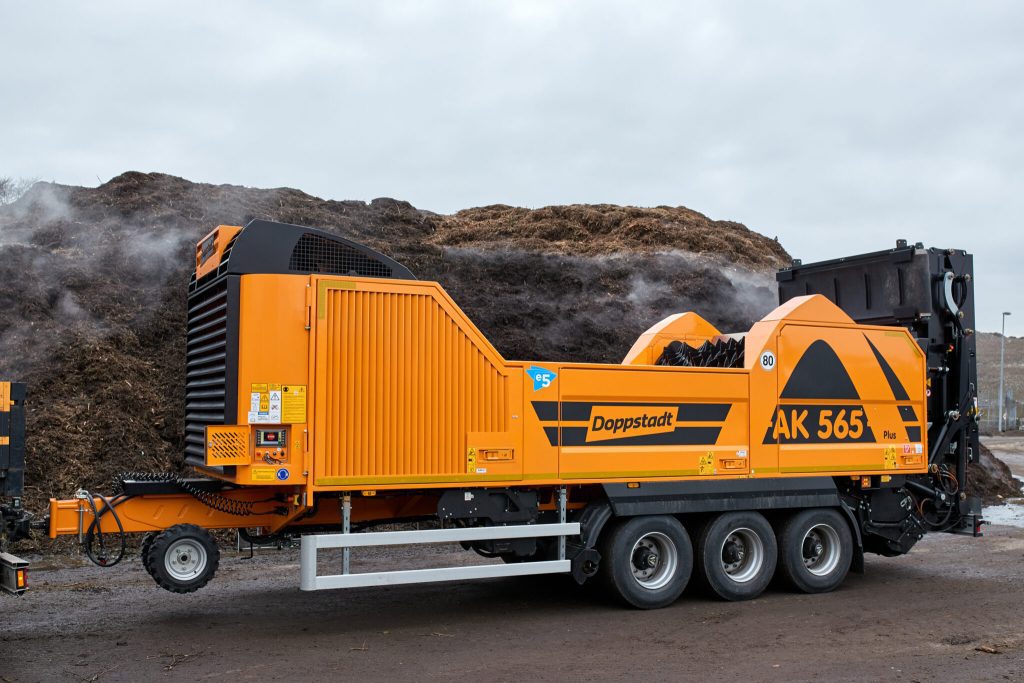

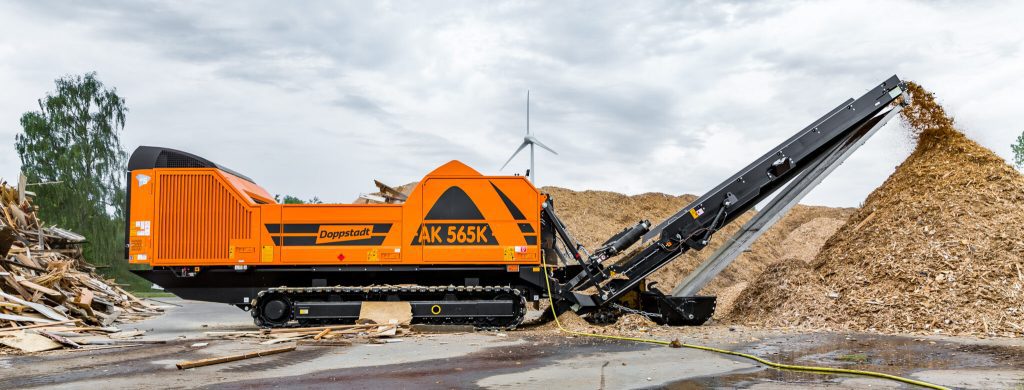

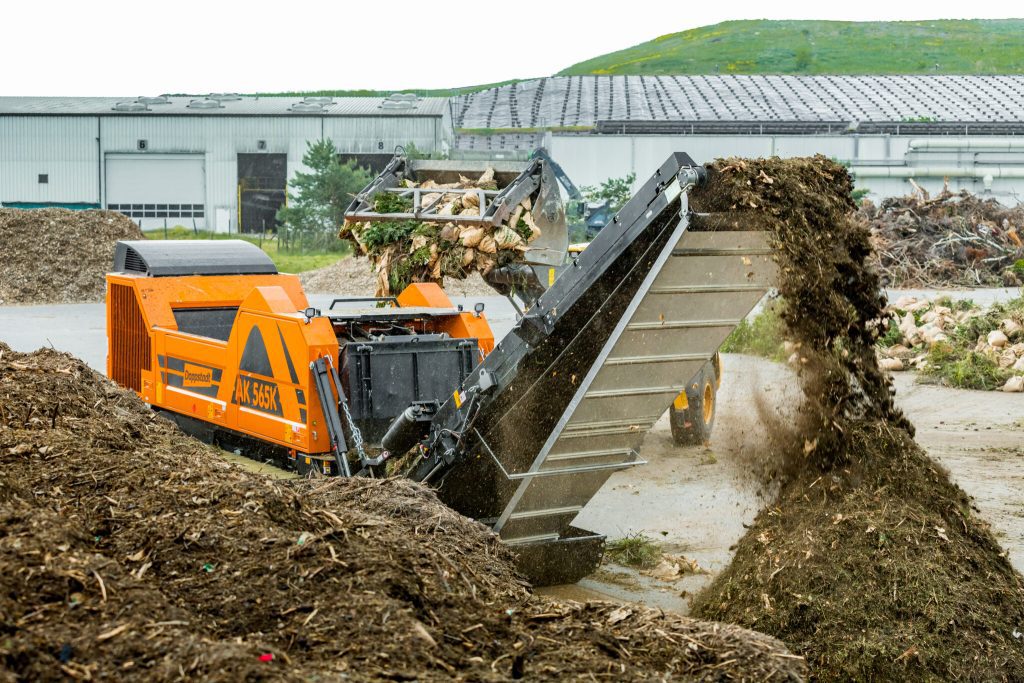

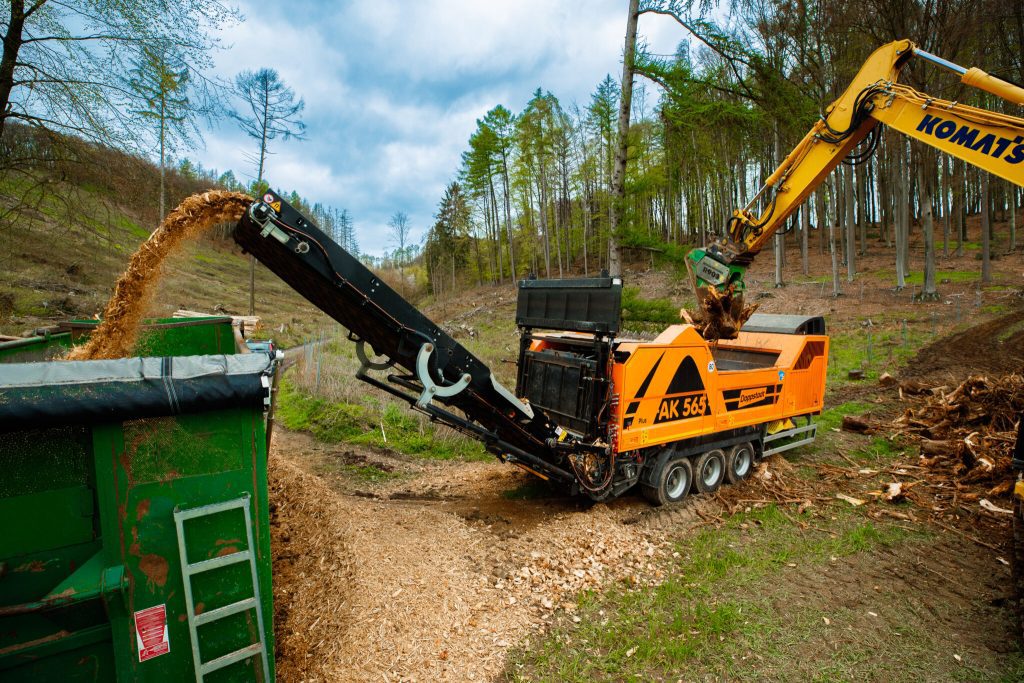

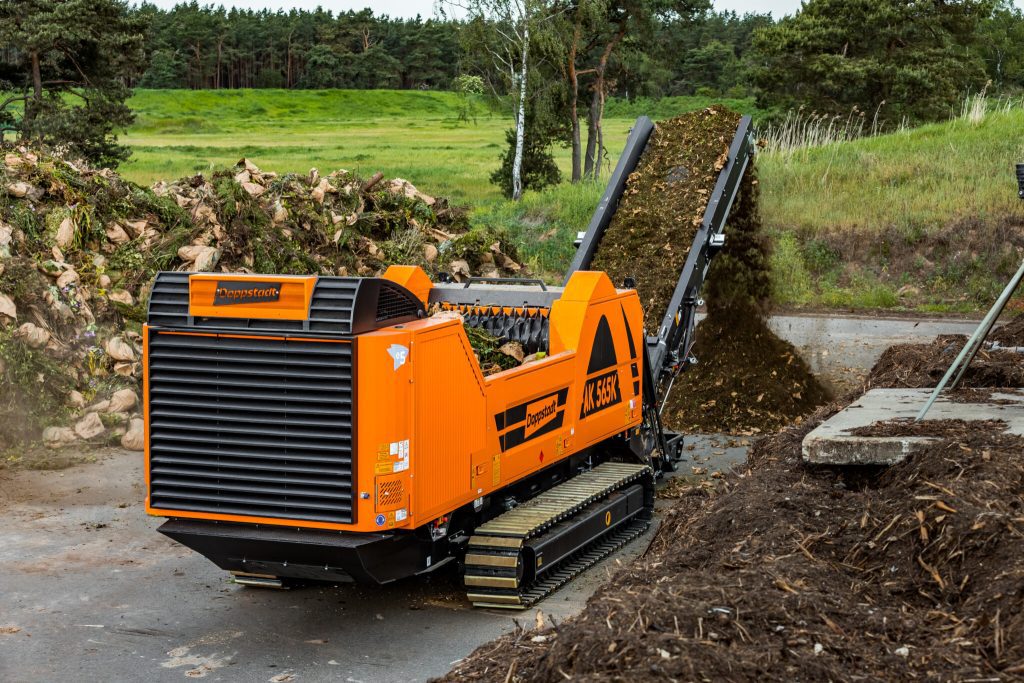

| Chassis | 2-axle trailer | Track-laying chassis | 3-axle trailer |
| Overall weight | 19,000 kg | 29,000 kg | 22,000 kg |
| Length x Width x Height (mm) | 13,250 x 2,500 x 3,000 | 13,750 x 3,000 x 5,290 | 13,380 x 2,500 x 4,290 |

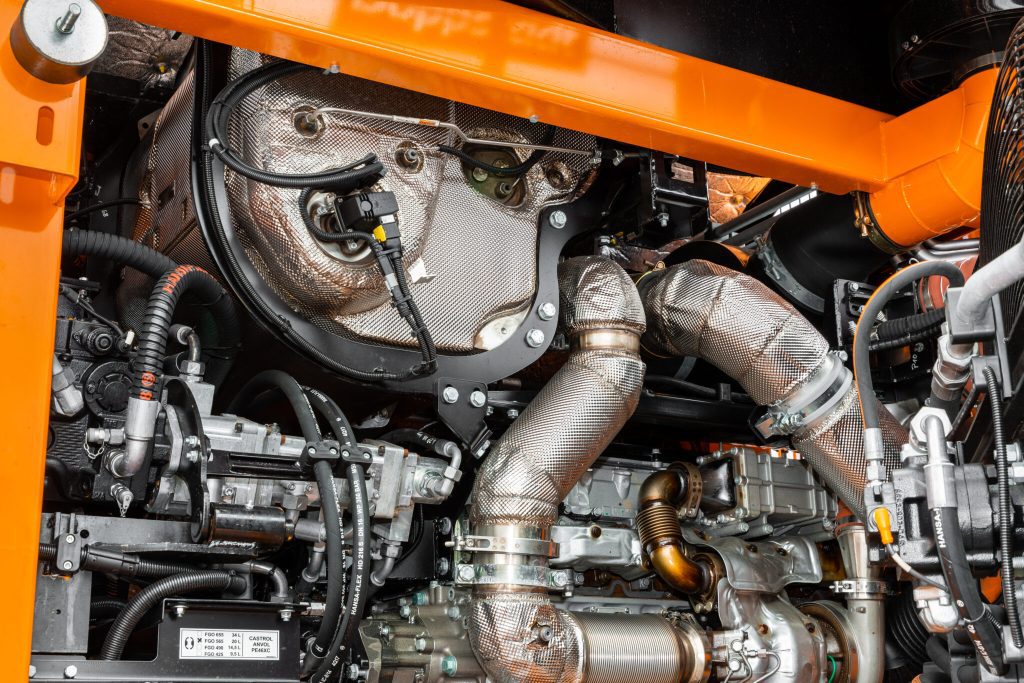

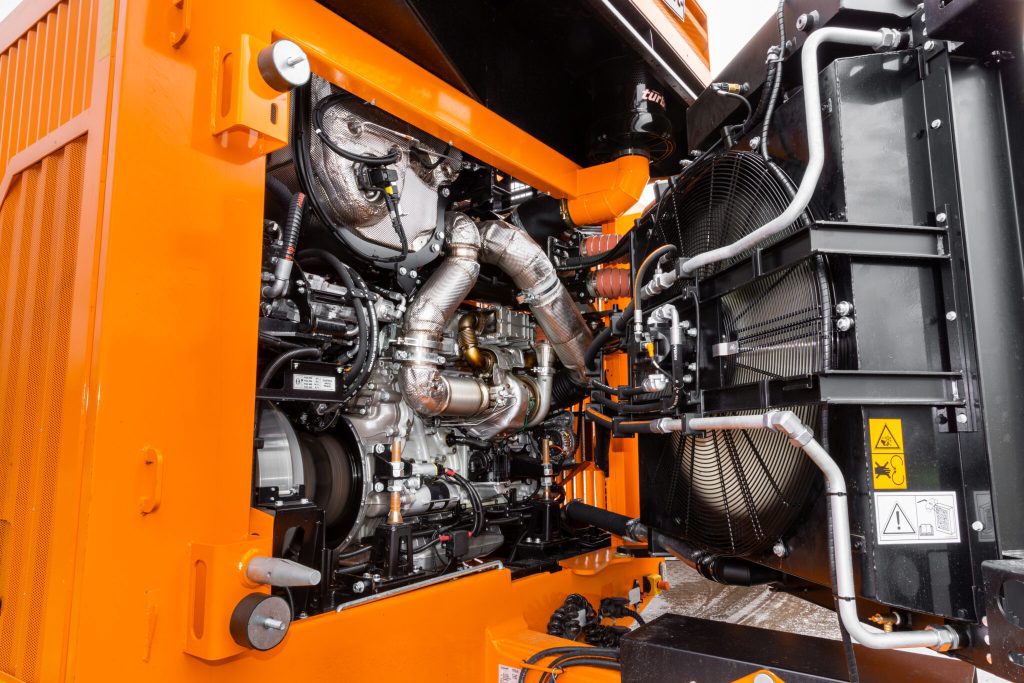

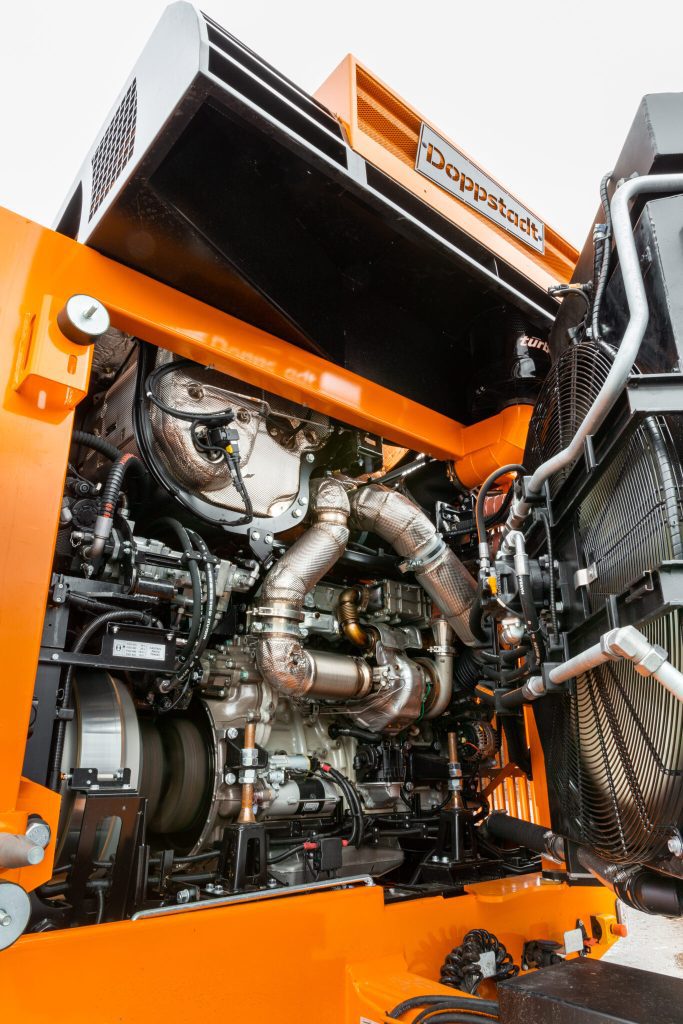

| Diesel Engine Type | MTU 6R 1300, Stage V | MTU 6R 1300, Stage V | MTU 6R 1300, Stage V |
| Tank Capacity | 450L | 600L | 600L |
| Output | 390 kW / 530 HP | 390 kW / 530 HP | 390 kW / 530 HP |
| Optional Extras | Hydraulic drive, overbelt magnet, neodymium magnet pulley, damping facility, dust and noise suppression hood, infeed roller clean EBS, central lubrication, hopper extensions, scraper floor chain lubrication, winter package, LED light kits | Overbelt magnet, neodymium magnet pulley, damping facility, dust and noise suppression hood, infeed roller clean EBS, central lubrication, hopper extensions, scraper floor chain lubrication, winter package, LED light kits | Hydraulic drive, overbelt magnet, neodymium magnet pulley, damping facility, dust and noise suppression hood, infeed roller clean EBS, central lubrication, hopper extensions, scraper floor chain lubrication, winter package, LED light kits |
| Basket Type | Basket Size |
|---|---|
| Diamond | 30mm – 400mm |
| Strip (Green Waste) | 50mm – 200mm |
| 3D Waste Wood | 80mm – 300mm |
| 3D Mulch | 50mm – 100mm |
