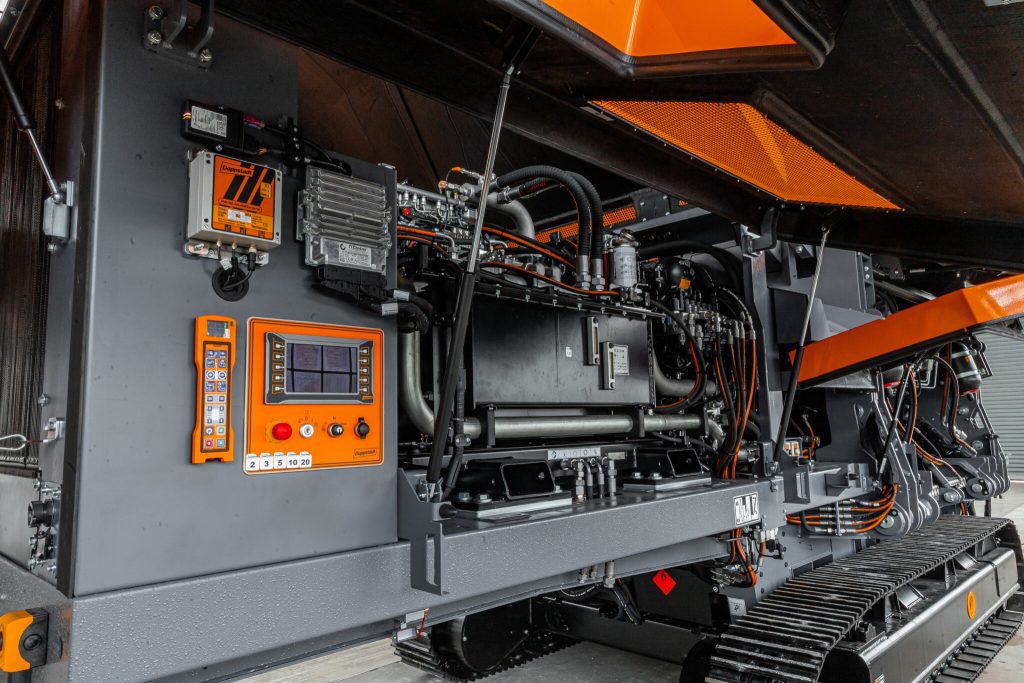

Doppstadt Inventhor 6.2
With the INVENTHOR series, Doppstadt offers a highly versatile solution for processing a wide range of materials and applications. As part of the slow-speed shredder line, these machines utilise high torque to ensure reliable pre-shredding, even of demanding materials. An efficient drivetrain with substantial power reserves, intelligent material feed, and configurable shredding systems ensure consistent and controlled operation.
- Product Descriptions
- Shredder Packages
- Technical Specification
- Video
Product Descriptions

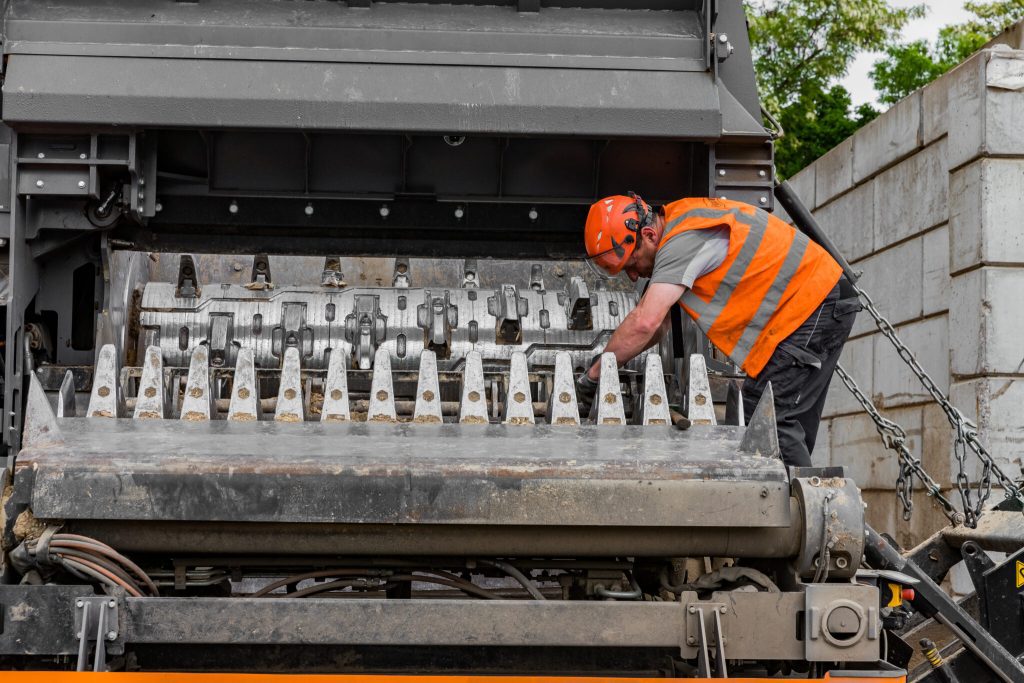

The INVENTHOR series is based on Doppstadt’s proven single-shaft shredding principle. A key feature of the range is the patented VarioDirect Drive, which is fitted as standard and enables efficient, load-dependent power transmission.

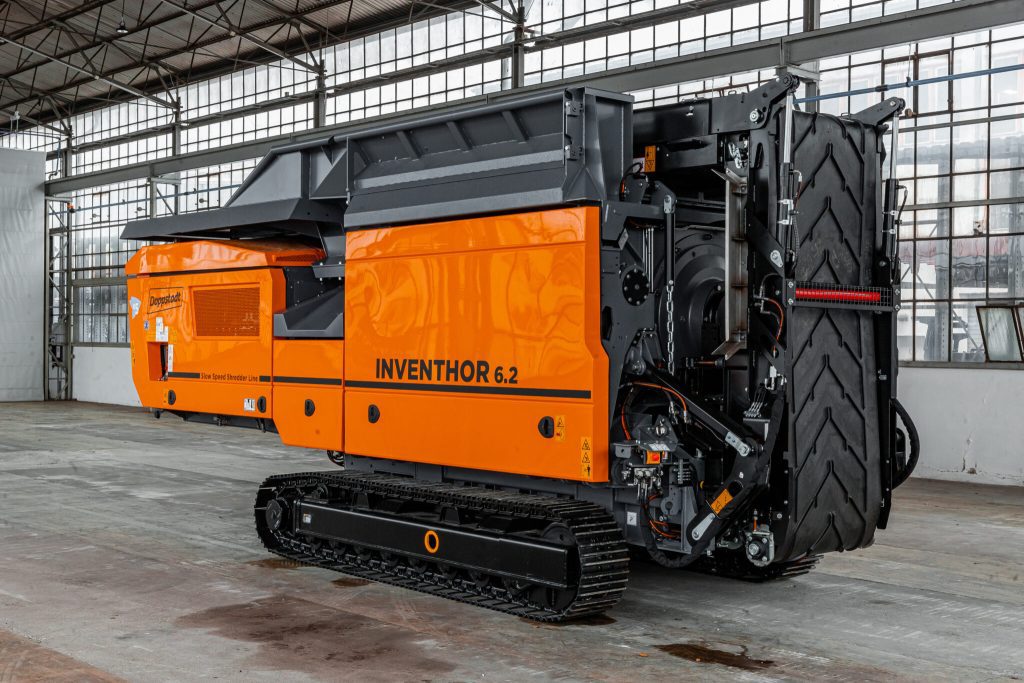

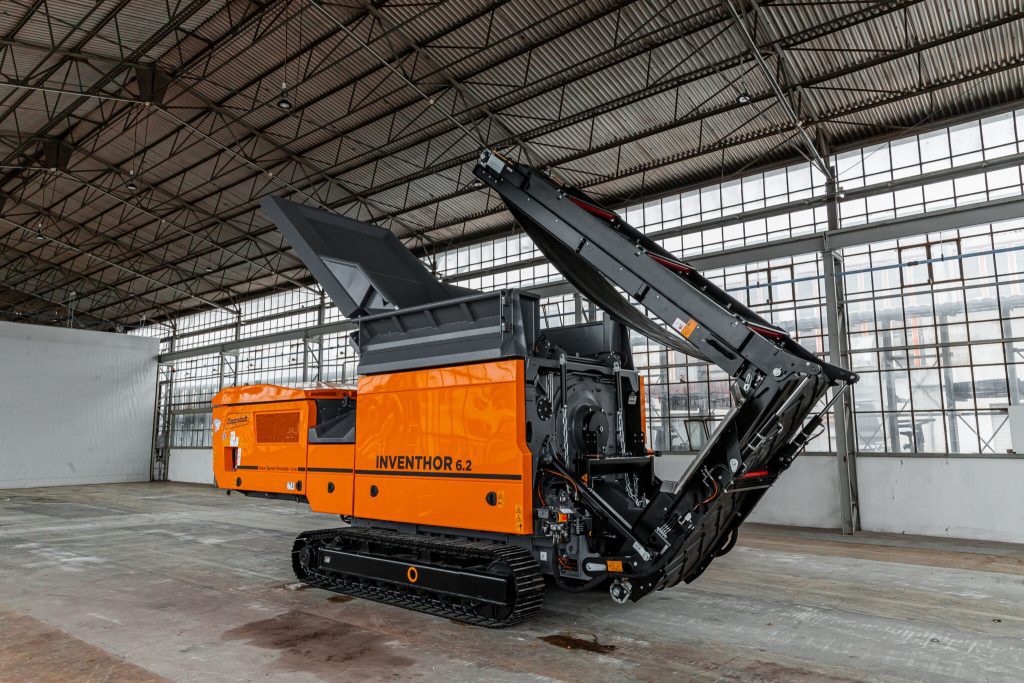

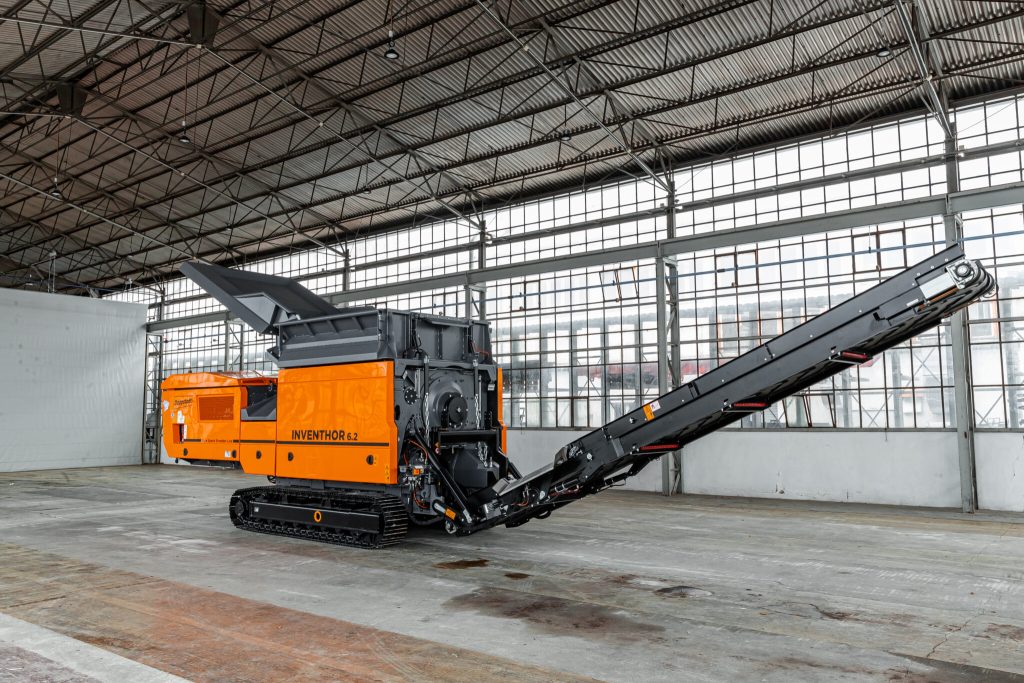

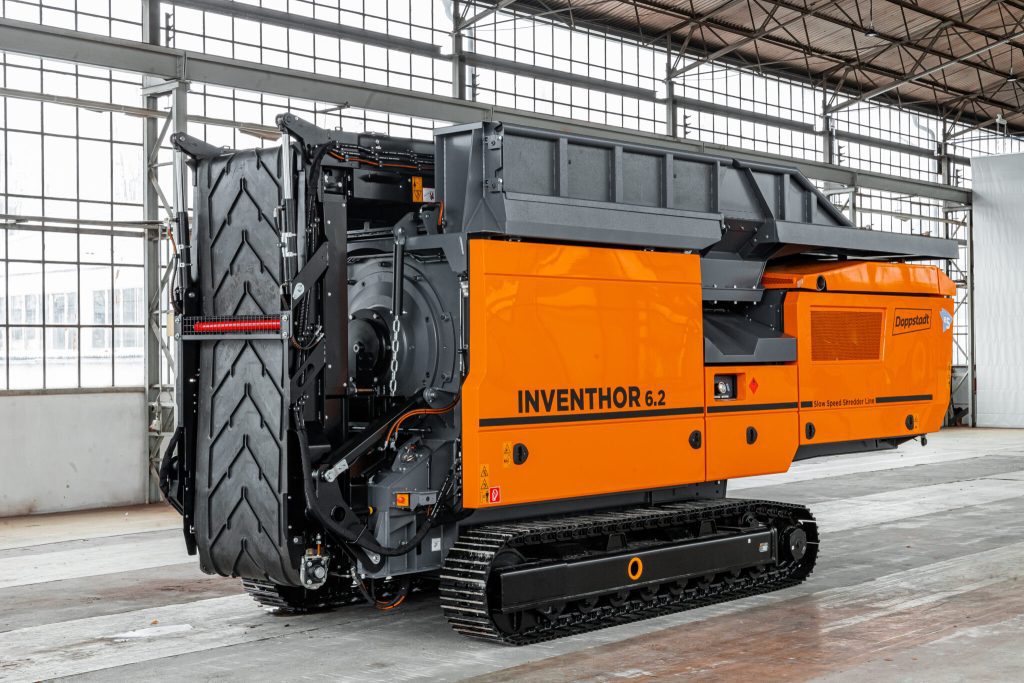

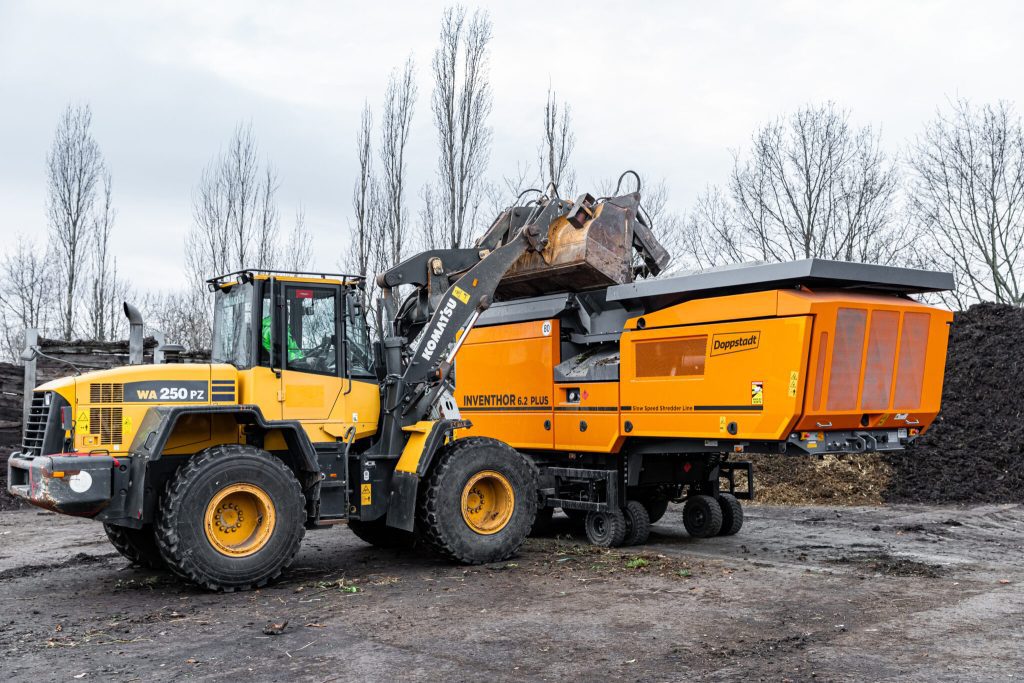

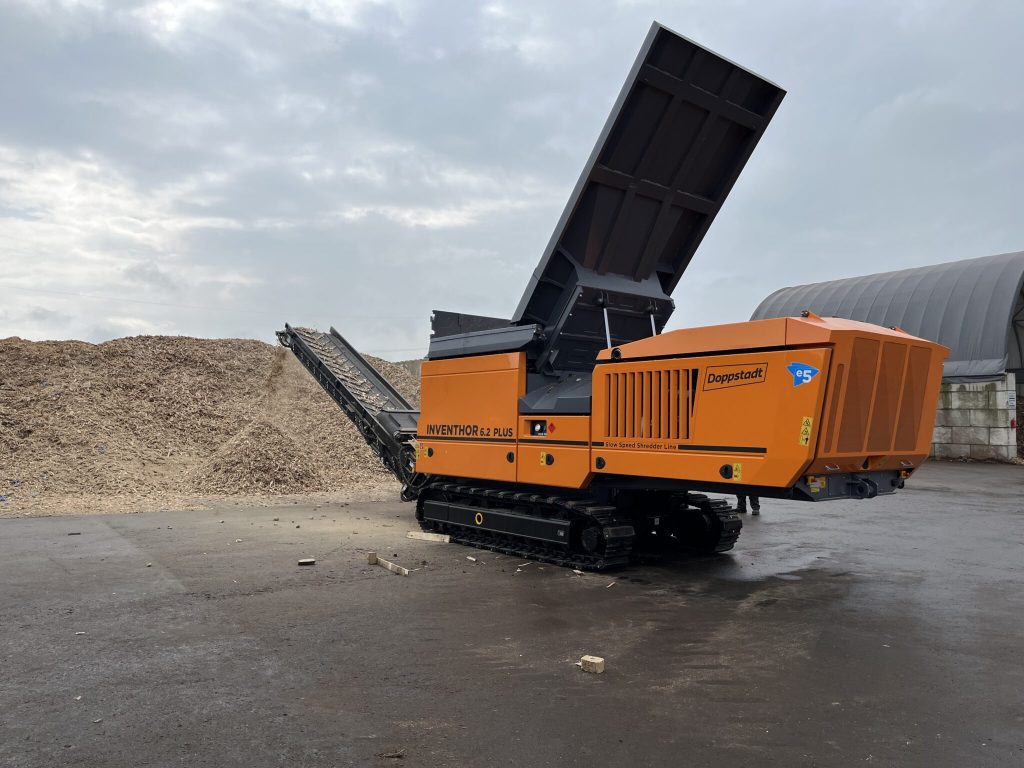

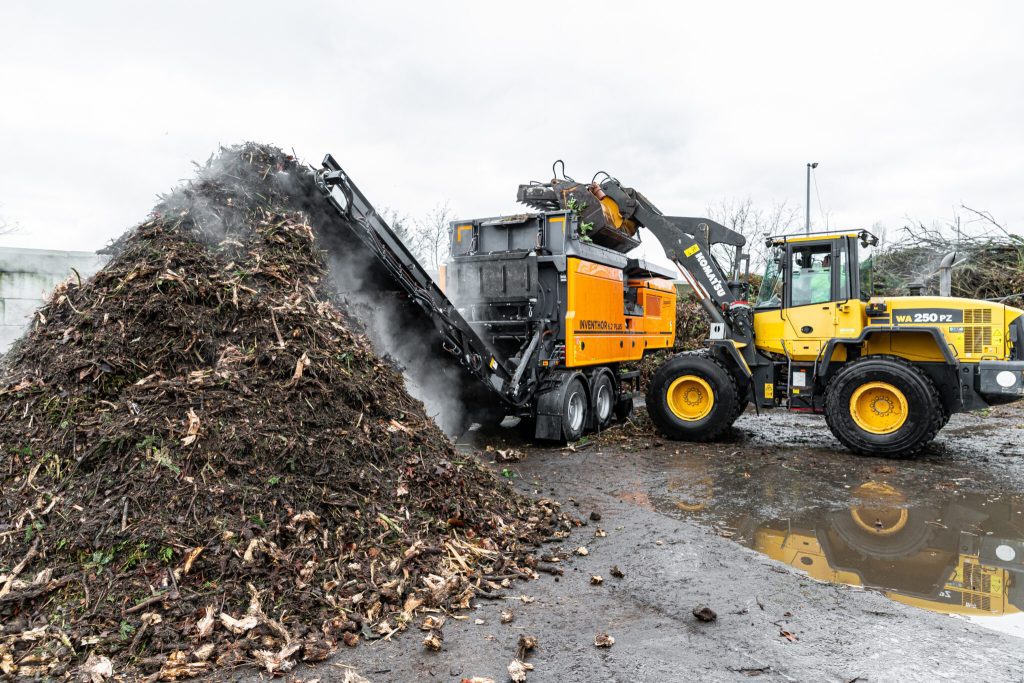

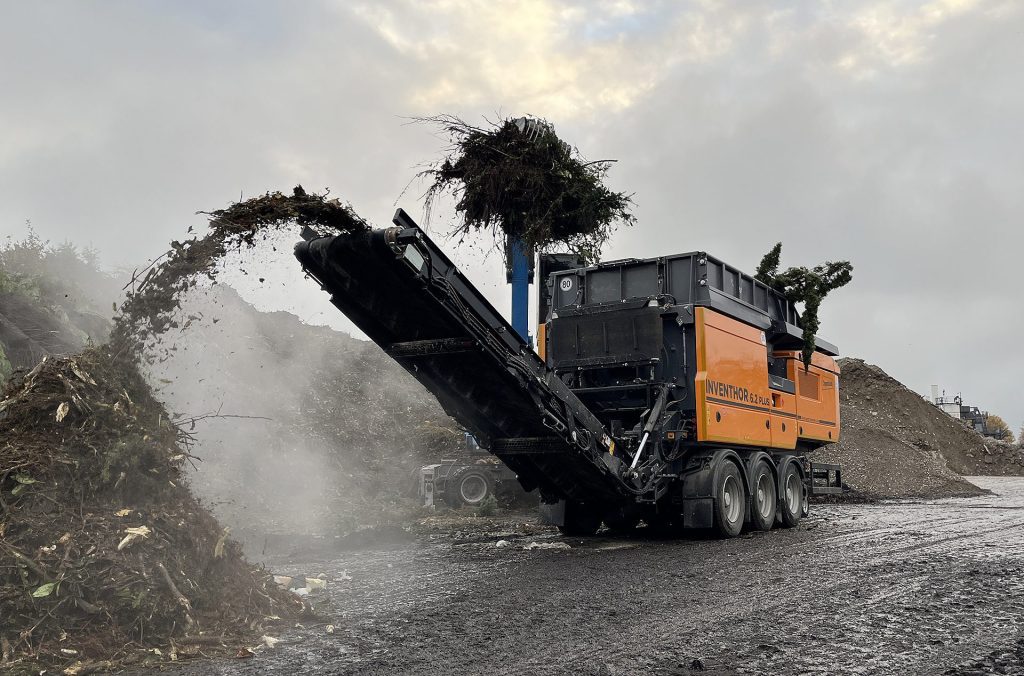

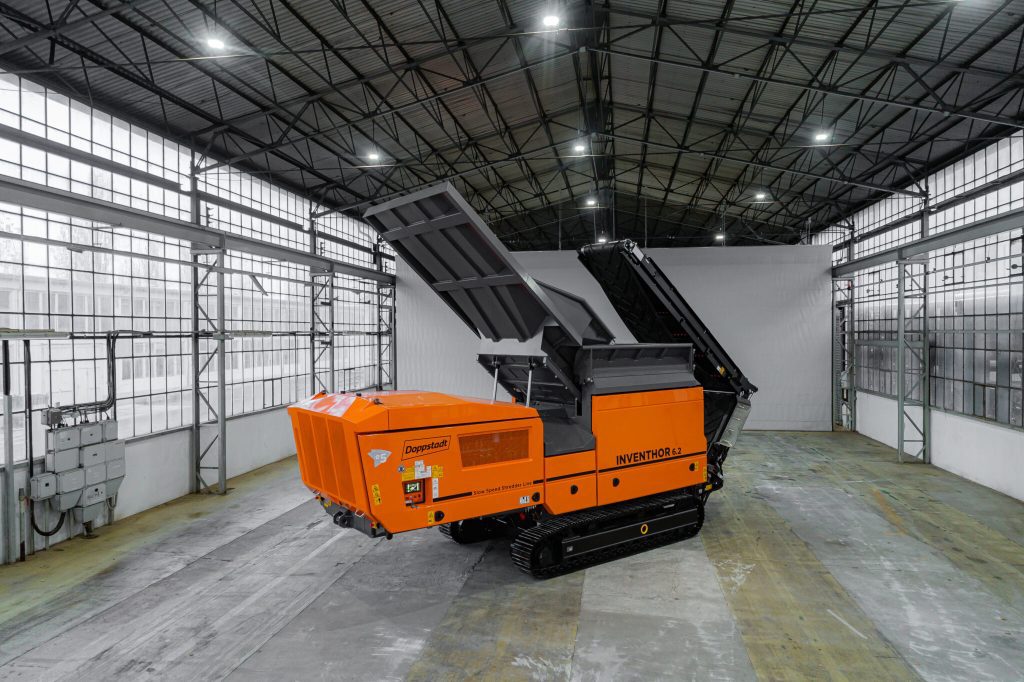

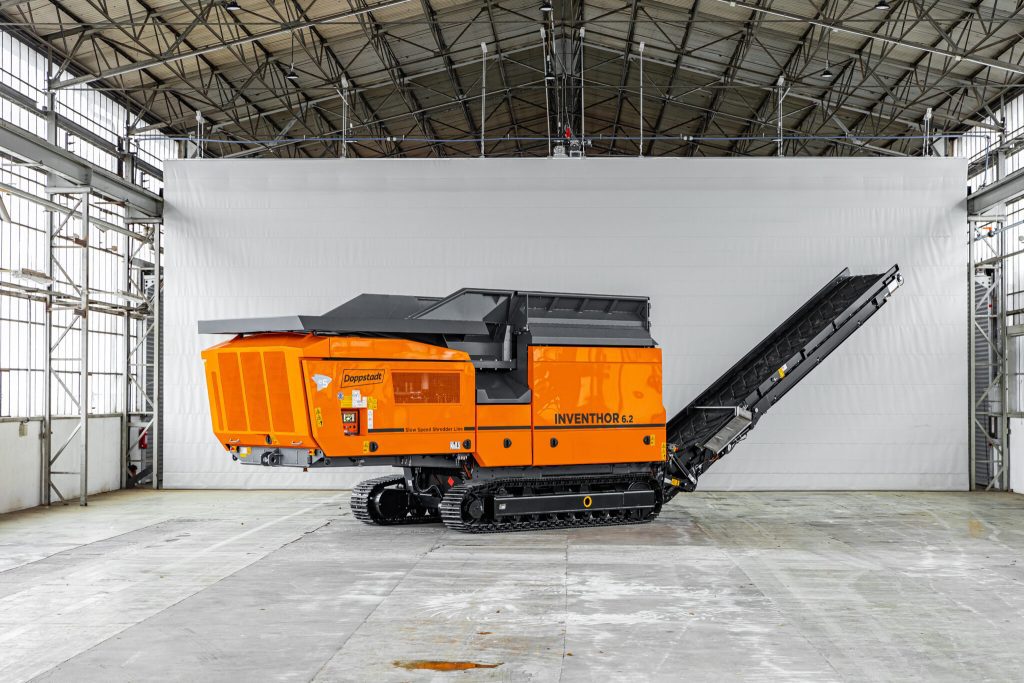

To suit different operational requirements, the INVENTHOR is available as a tracked machine, semi-trailer, or drawbar trailer.
Versatility Redefined – Shredding With Doppbasket.

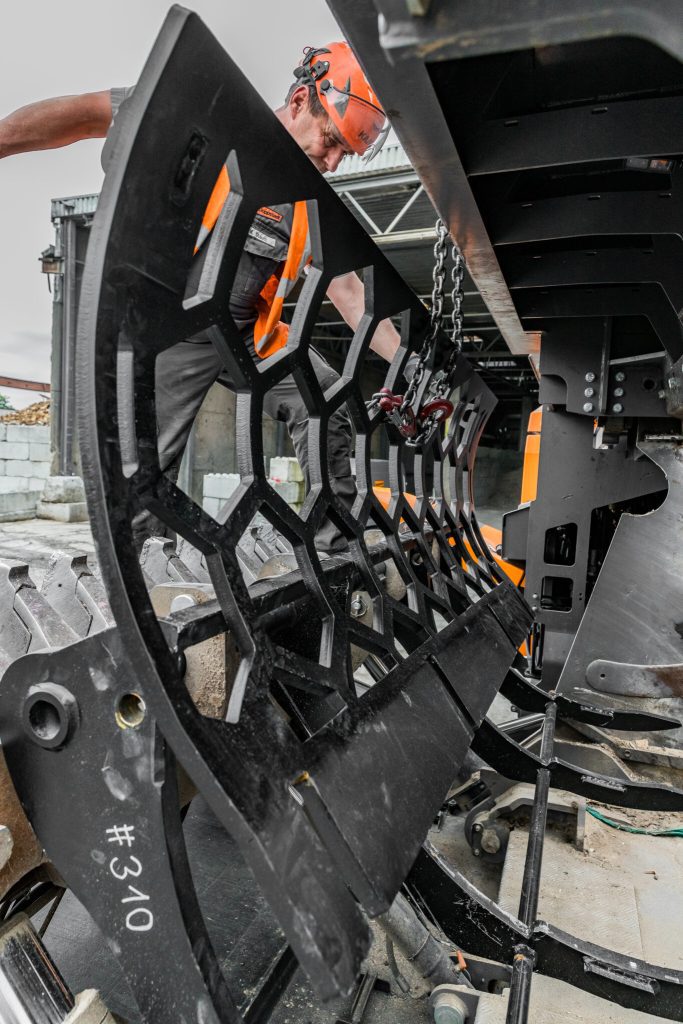

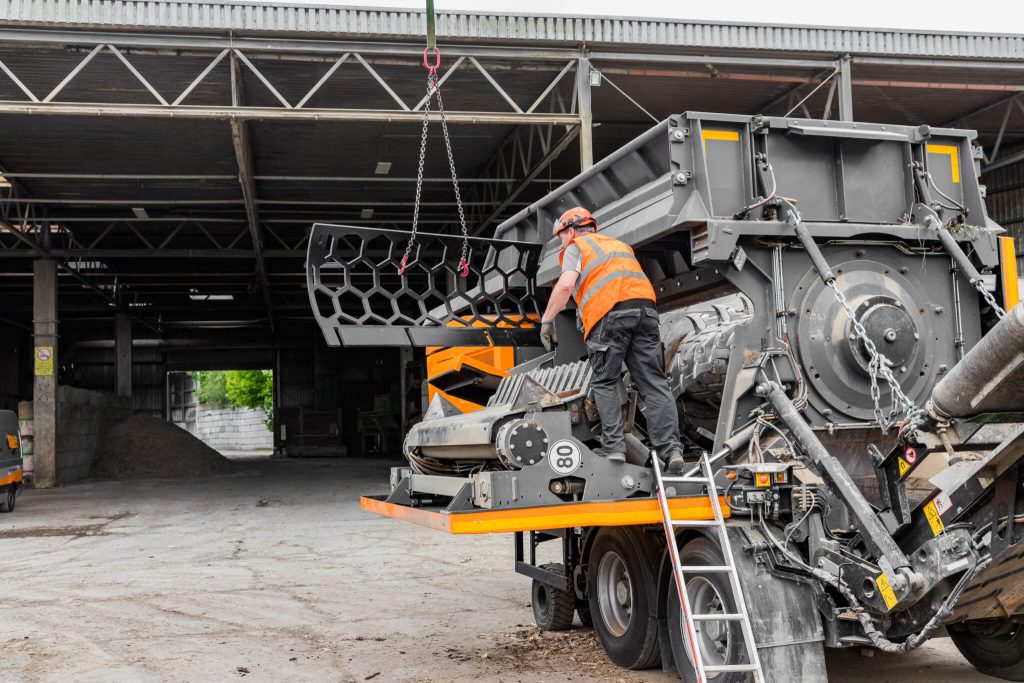

The DoppBasket system enables an even more versatile and efficient use of your Inventhor 6.2. Because using a strainer basket brings you additional advantages:
- Shredding of material to defined target grain size in just one step
- Quick adaptation to changing requirements due to easy removal and assembly of the screen basket
- Self-protective basket system – No fear of impurities thanks to movable basket, which opens if necessary
- Long service life – The screen baskets are made of wear-resistant steel with high sheet thicknesses
- Future-proof and retrofittable, even in existing machines
Shredder Packages
Technical Specification
| INVENTHOR 6.2 | 3-AXLE TRAILER | SEMI-TRAILER | TRACK-LAYING CHASSIS |
|---|---|---|---|
| Chassis | Central axle trailer chassis for 80 km/h, as per StVZO | Semi-trailer chassis for 80 km/h, as per StVZO | Track-laying chassis for self-propelled drive, two travel speeds |
| Overall weight | 25,000 kg | 27,000 kg | 27,000 kg |
| Length x Width x Height (mm) | 14.766 x 2,540 x 3,650 | 13,314, 2540 x 3,650 | 13,335 x 2,500 x 3,967 |

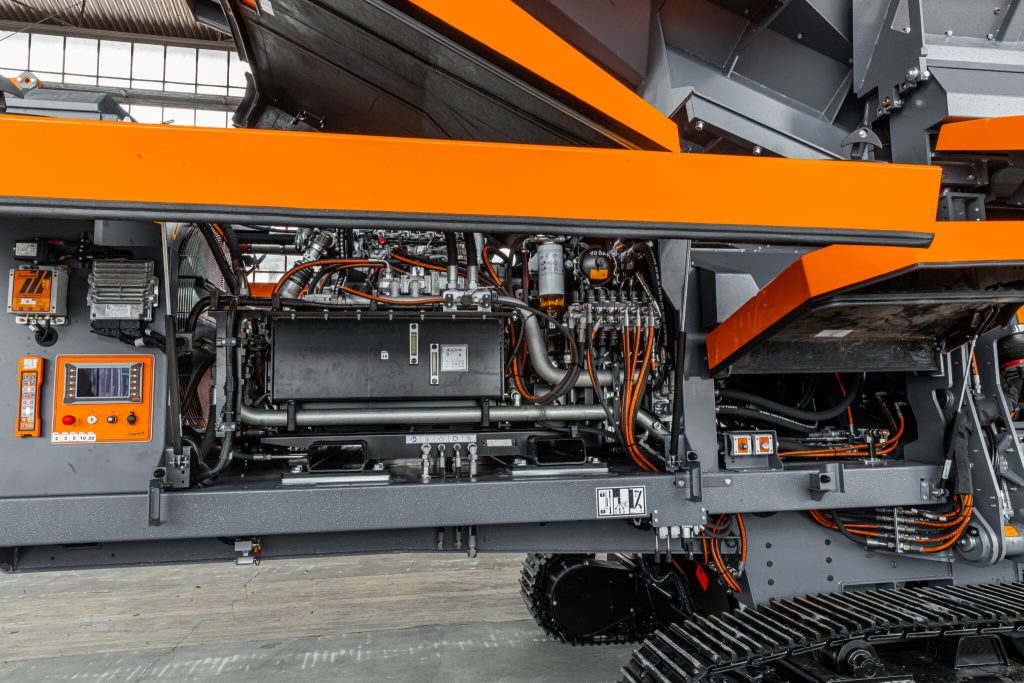

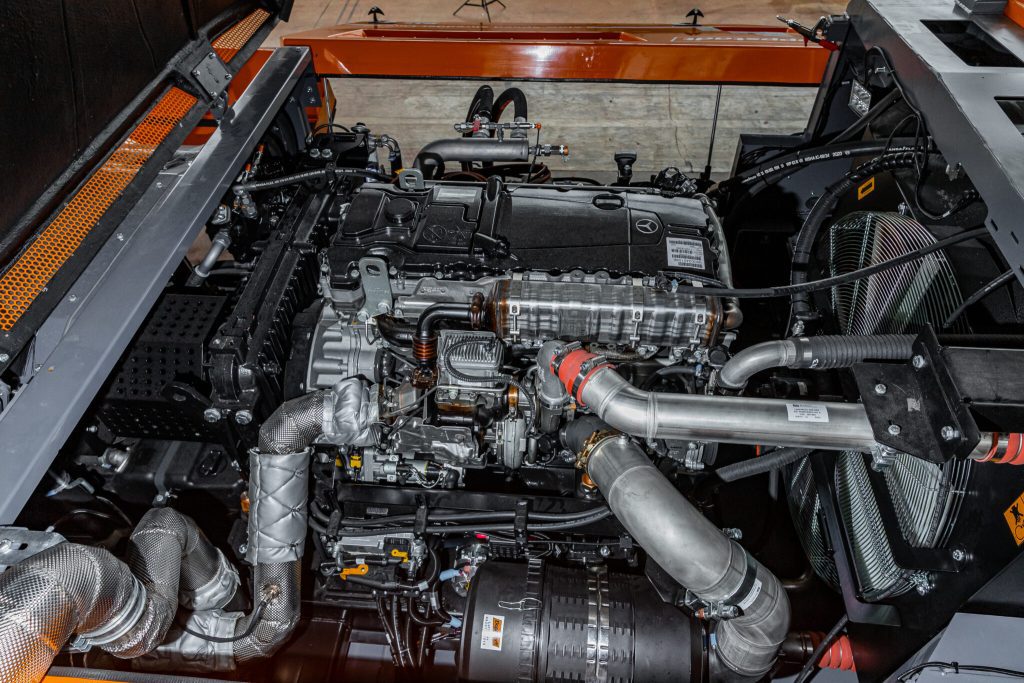

| Diesel Engine Type: | MTU 6R1000 | MTU 6R1000 | MTU 6R1000 |
| Tank Capacity | 425 L | 425 L | 425 L |
| Output | 260 kW , 354 hp | 260 kW , 354 hp | 260 kW , 354 hp |
| Optional Extras | “Limiter” oversize return, shredder packages of size M, L, hydraulic drive, rear belt length 7 m, overbelt magnet, auxiliary hopper attachment panels, hopper wedge, misting system, winter package, LED light package | “Limiter” oversize return, shredder packages of size M, L, hydraulic drive, rear belt length 7 m, overbelt magnet, auxiliary hopper attachment panels, hopper wedge, misting system, winter package, LED light package | Limiter” oversize return, shredder packages of size M, L, rear belt length 7 m, overbelt magnet, auxiliary hopper attachment panels, hopper wedge, misting system, winter package, LED light package |

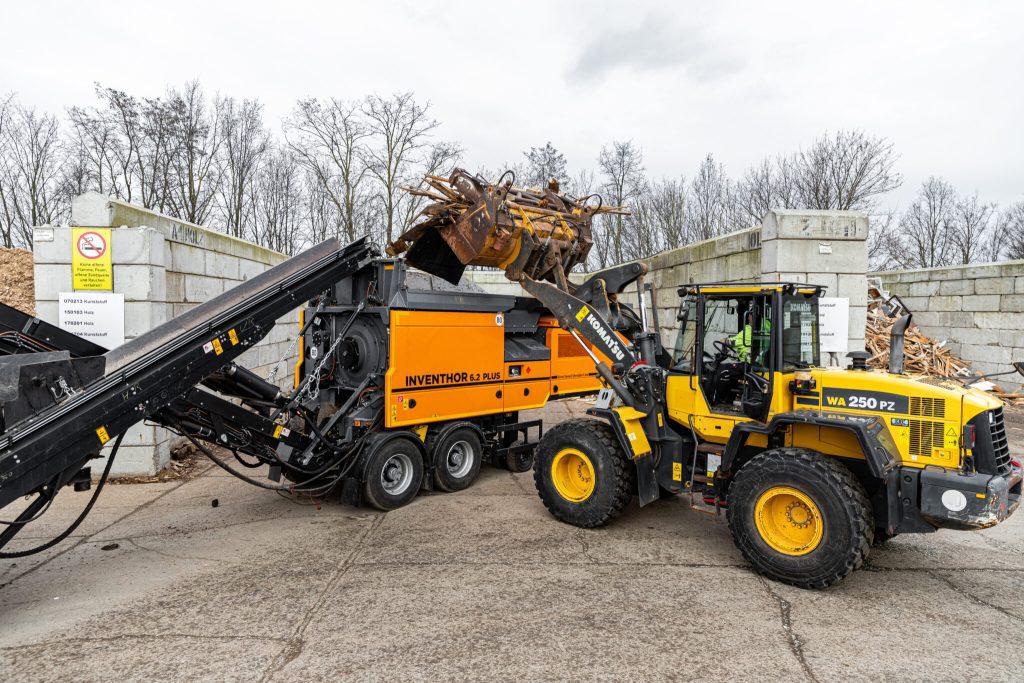

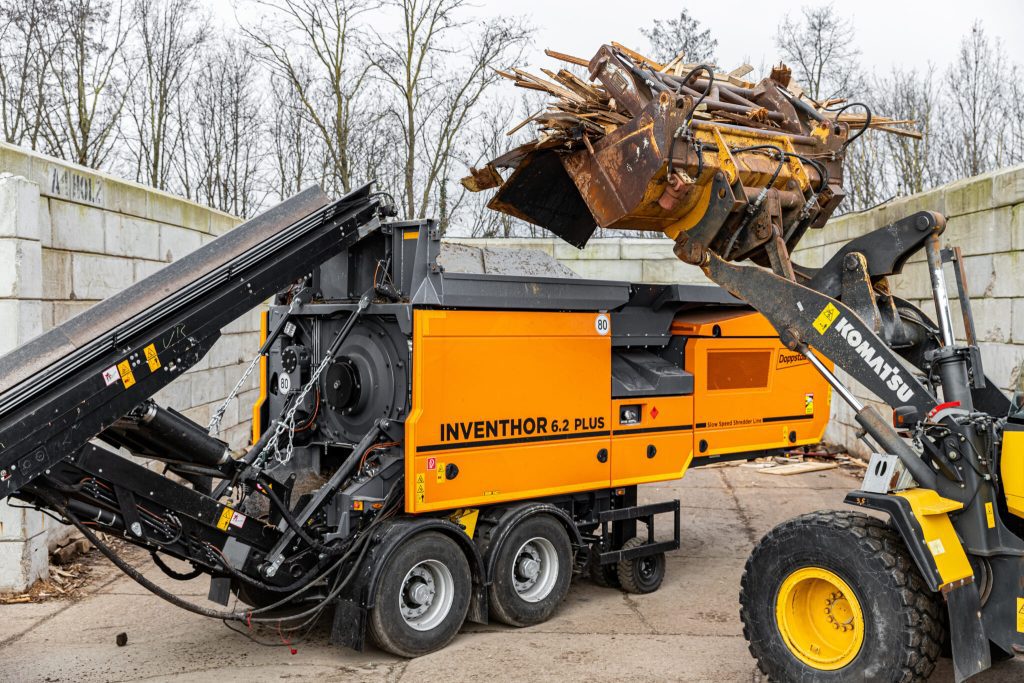

| INVENTHOR 6.2 PLUS | 3-AXLE TRAILER | SEMI-TRAILER | TRACK-LAYING CHASSIS |
|---|---|---|---|
| Diesel Engine Type: | CAT C9.3B | CAT C9.3B | CAT C9.3B |
| Output | 310 kW , 421 hp | Diesel: 310 kW , 421 hp | Electric: 315 kW , 428 hp | Diesel: 310 kW , 421 hp | Electric: 315 kW , 428 hp |
