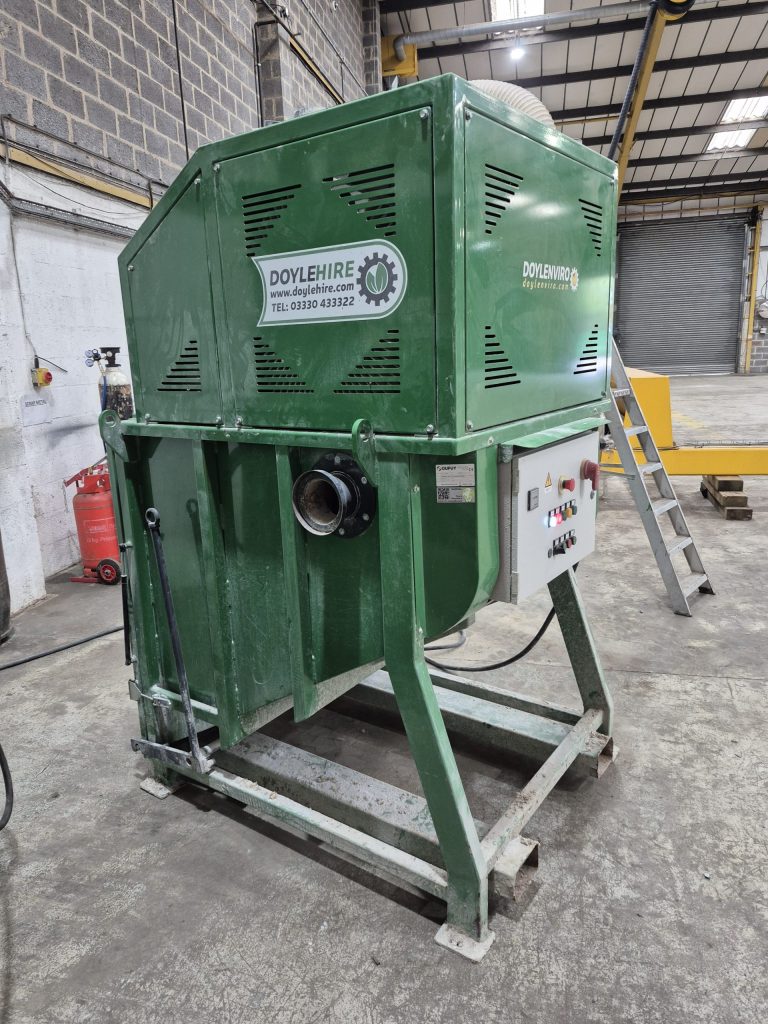

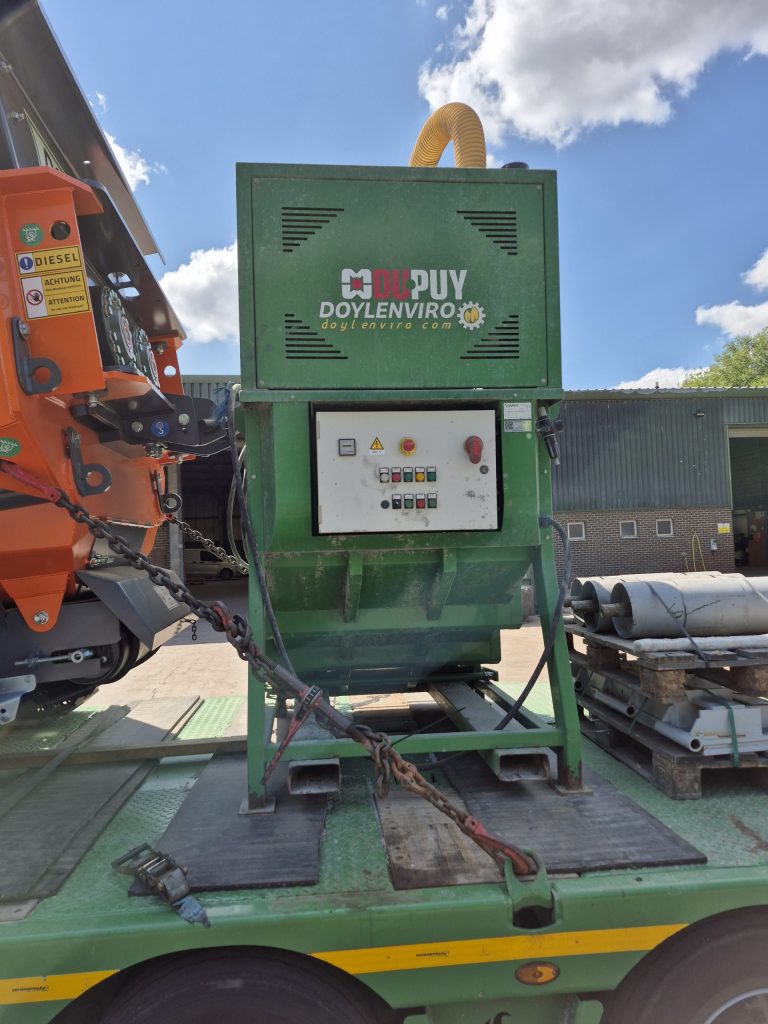

Dupuy Tankvac 12.5kW
The DUPUY TANKVAC is a high-performance, large-capacity industrial vacuum system designed for demanding continuous-duty material collection. Featuring a powerful side channel blower, large antistatic filtration surface and a 1,000-litre collection capacity, the TANKVAC provides reliable suction and efficient dust collection across a range of industrial applications. Its maintenance-friendly design, automatic filter cleaning and forklift-accessible structure make it a practical solution for heavy-duty material handling and site cleanup.
Suitable for Industrial Use With: Dust – Fine Particles – Industrial Debris – Shavings – Dry Materials
Industries: Quarrying – Bulk Handling – Recycling – Power Generation – Wood Processing – Construction – Demolition- Key Features
- Technical Specifications
- Video
Key Features
✔️ 12.5–18.5kW power range for demanding industrial applications
✔️ High-performance side channel blower with direct motor-to-impeller coupling
✔️ Maintenance-friendly design with no transmission system and suitability for long-term continuous operation
✔️ Up to 6,000 mmH₂O maximum depression for powerful suction performance
✔️ Up to 1,350 m³/h maximum airflow for efficient material collection
✔️ Large antistatic polyester filter providing high resistance to dust passage and clogging
✔️ Automatic filter cleaning system to maintain filtration performance
✔️ H14 HEPA safety filter available as part of the filtration system
✔️ 1,000-litre collection capacity for high-volume material collection
✔️ Integrated compressor and pressure relief valve for reliable operation
✔️ Forklift-accessible structure for easier handling and positioning
✔️ Double silencer helps reduce operating noise
Technical Specifications
| Specification | DUPUY TANKVAC AF-HV |
|---|---|
| Power Supply | 400V – 50Hz – 3~ |
| Motor Power | 12.5–18.5kW |
| Maximum Depression | 4,400–6,000 mmH₂O |
| Continuous Depression | 2,900–5,400 mmH₂O |
| Maximum Air Flow Rate | 720–1,350 m³/h |
| Nozzle | 80 / 100mm |
| Noise Level | 76–81 dB(A) |
| Primary Filter | Pockets |
| Filter Surface Area | 70,000 cm² |
| Filter Diameter | 560mm |
| Filter Media | IEC 60335-2-69 M – PTFE ANT |
| Filter Cleaning | Automatic (AUT) |
| Compressor | Integrated |
| Safety Filter | HEPA Cartridge H14 – 52,000 cm² |
| Collection Capacity | 1,000 litres |
| Exhaust System | Front exhaust |
| Dimensions | 157 × 125 × 240cm |
| Weight | 660kg |
