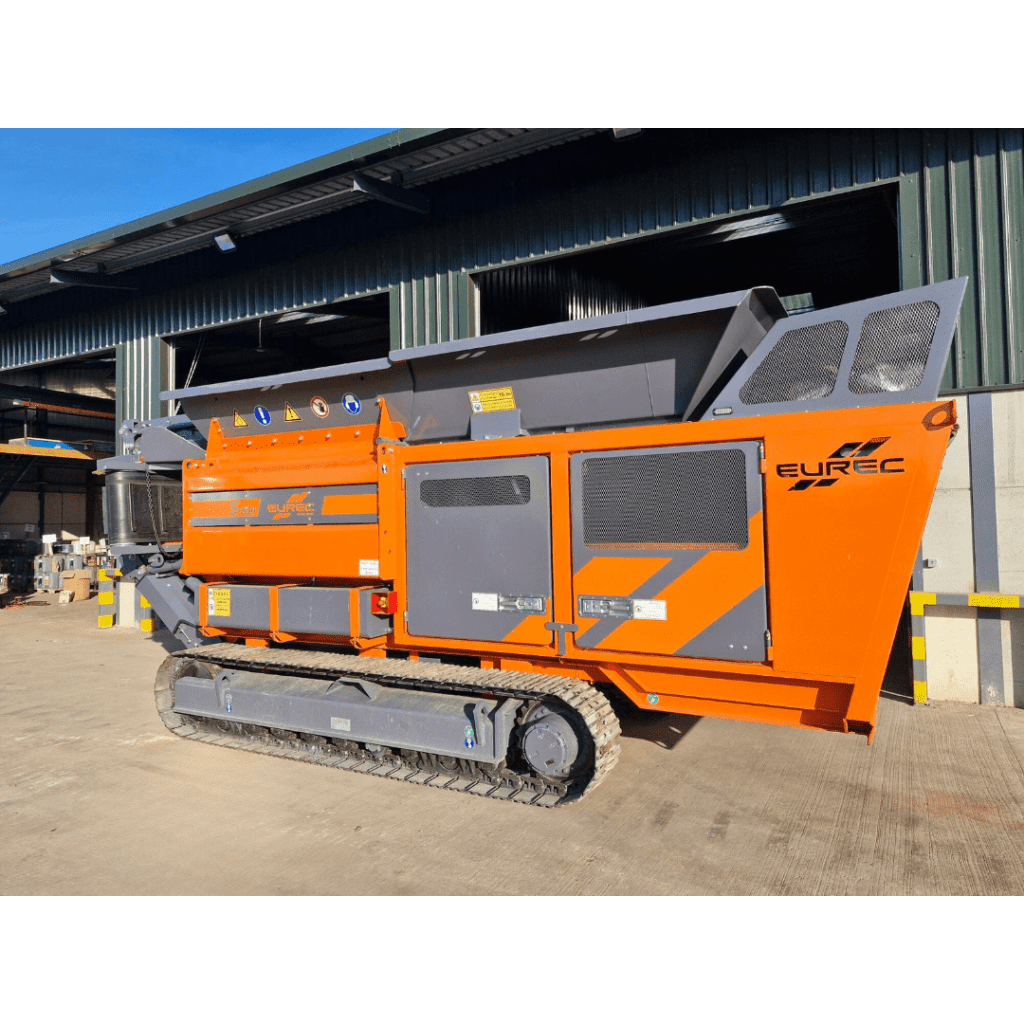

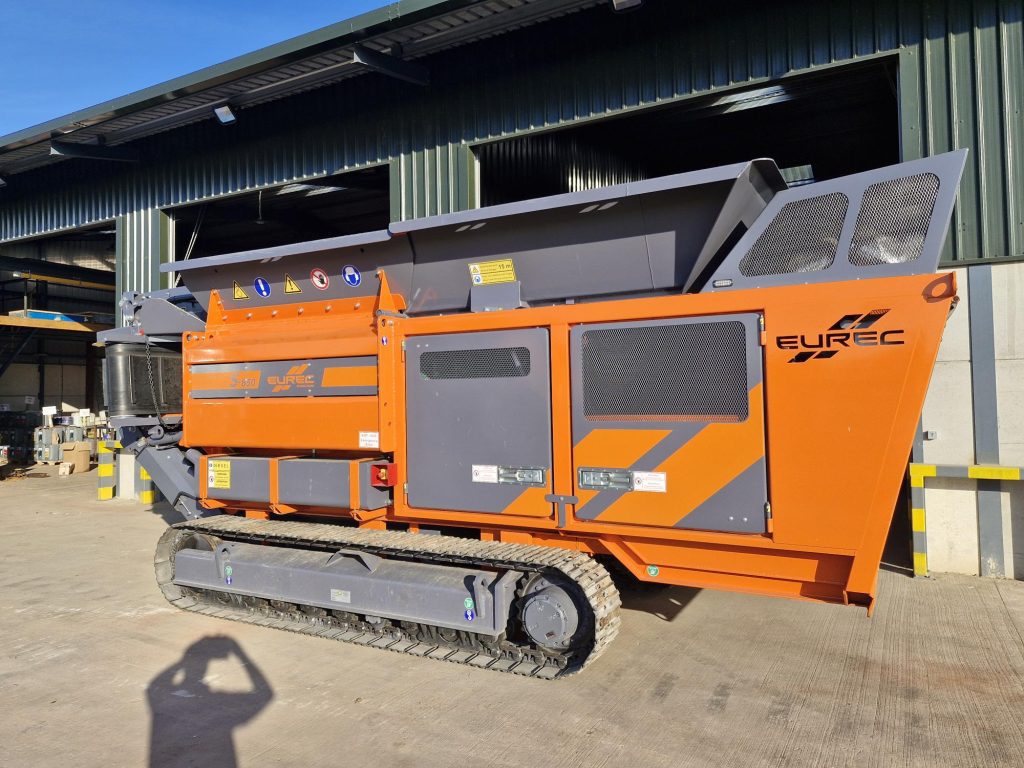

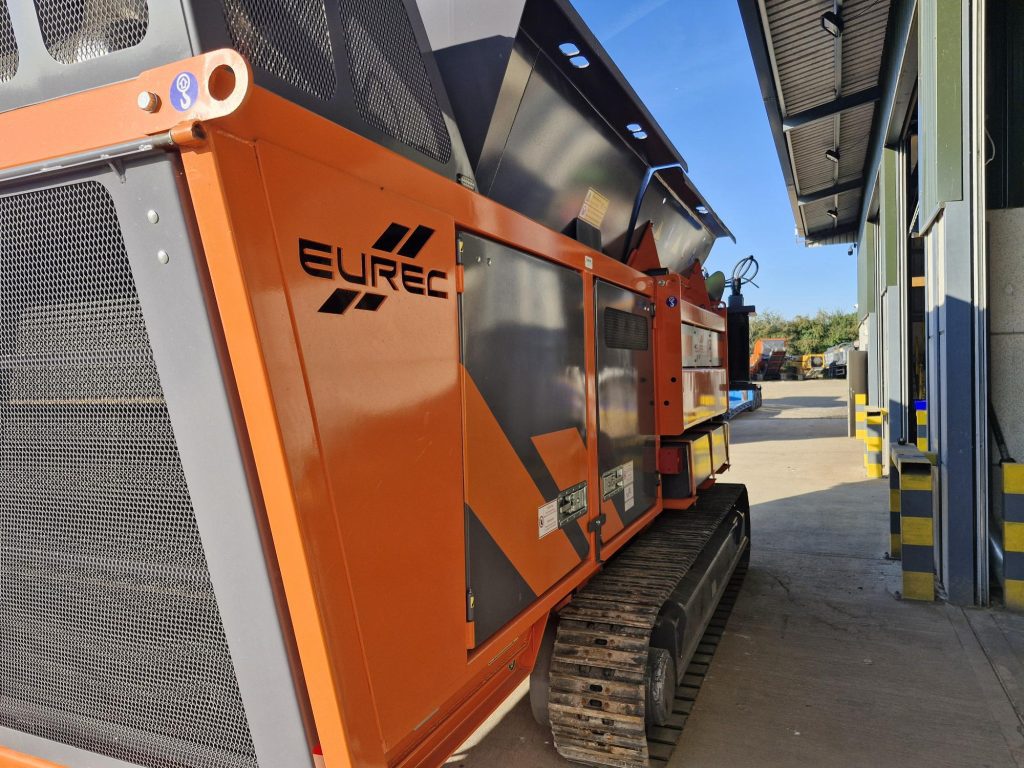

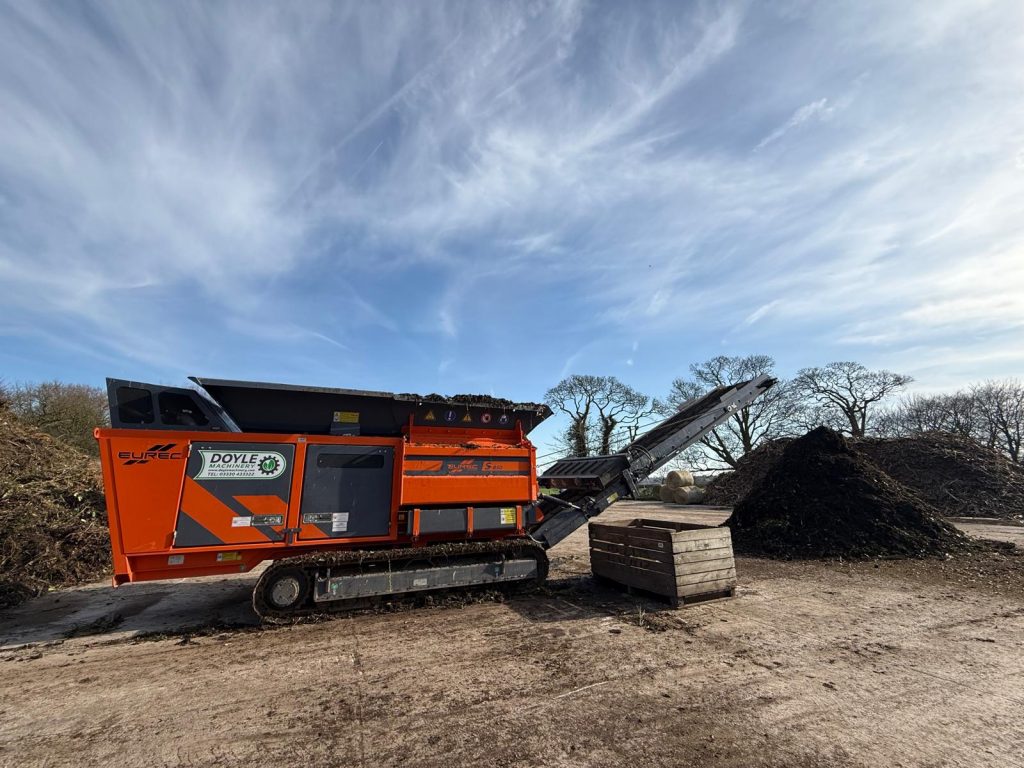

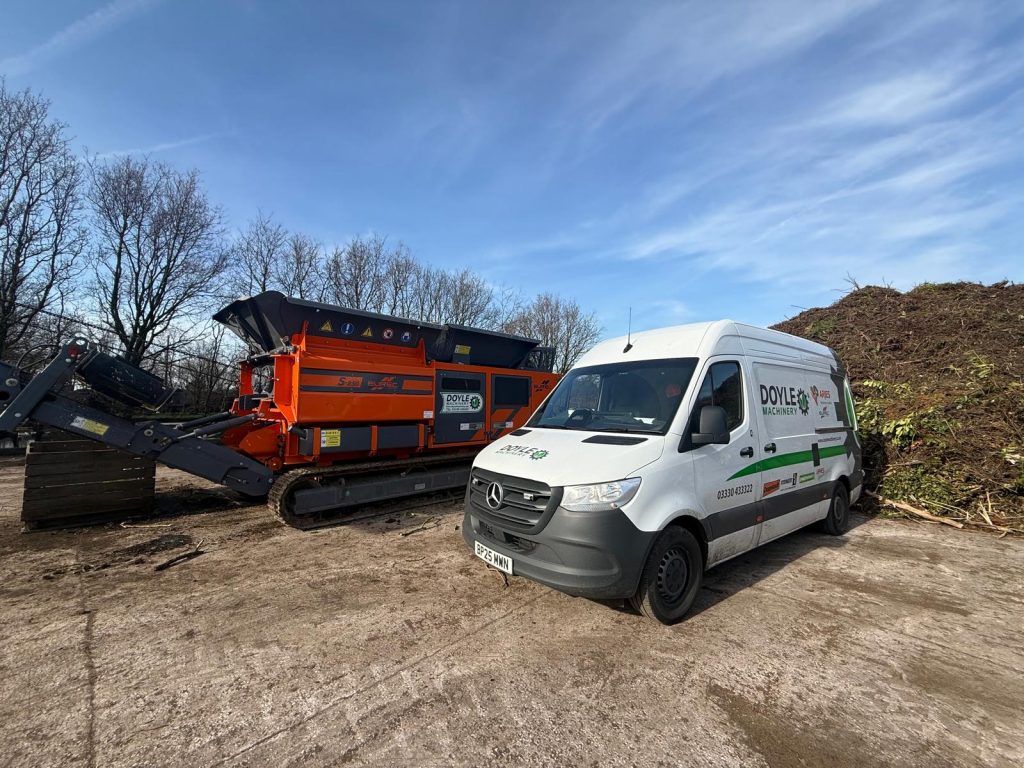

Eurec Ultima S-850

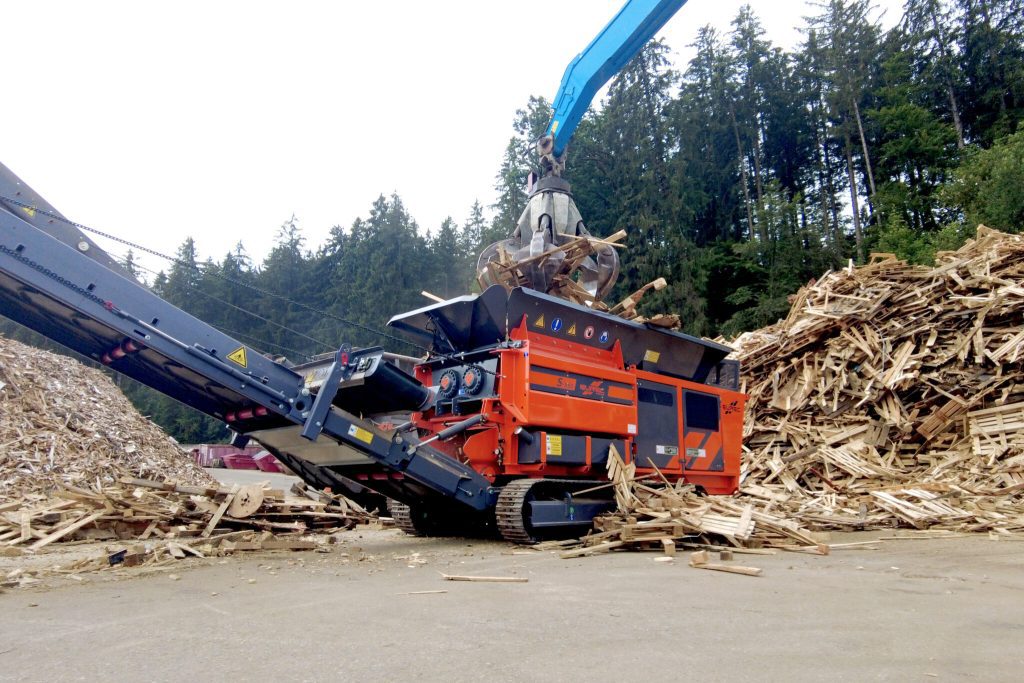

The Eurec S-850 Ultima is a powerful and versatile mobile two-shaft shredder engineered for heavy duty recycling and waste processing. Designed to handle a wide variety of materials from commercial and construction waste to wood, rubber and general industrial streams it combines robust build quality with advanced shredding technology for efficient, reliable performance. Features like hydraulically damped side combs and a quick-change shaft system help reduce blockages and downtime, while optional asynchronous shaft configurations boost performance on tougher applications.
- Product Descriptions
- Technical Specification
- Video
Product Descriptions
Features at a glance…
⚙️Hydraulically damped side combs
Automatically reduce pressure and prevent blockages by opening when the load is too high, keeping the shredder running smoothly and reducing downtime.
⚙️Quick change system for tool shafts
Thanks to the quick-change system with a hydraulically lowerable breaker bar, the shredding shafts can be replaced in minutes,no need for complex disassembly.
⚙️Asynchronous version (optionally available)
For tough materials like commercial waste and tyres, the S-850 can be customised with an asynchronous shaft configuration, improving performance on demanding applications.
Technical Specification

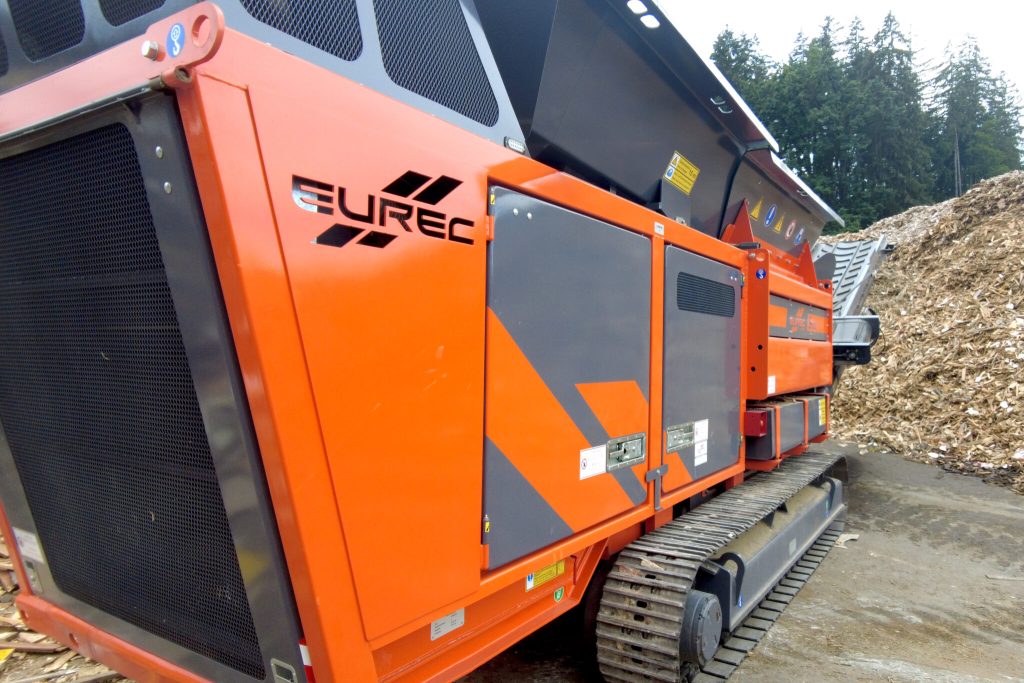

| TRACKS | |
|---|---|
| Length (mm) | 12,600 / 7,500 (transport) |
| Width (mm) | 2,500 / 2,500 (transport) |
| Height (mm) | 3,000 / 3,000 (transport) |
| Total weight (kg) | 23,500 |
| DRIVE | |
|---|---|
| Engine | VOLVO PENTA TAD 1183 VE |
| Power (kW / HP) | 315 / 430 |
| Fuel capacity (L) | 600 |

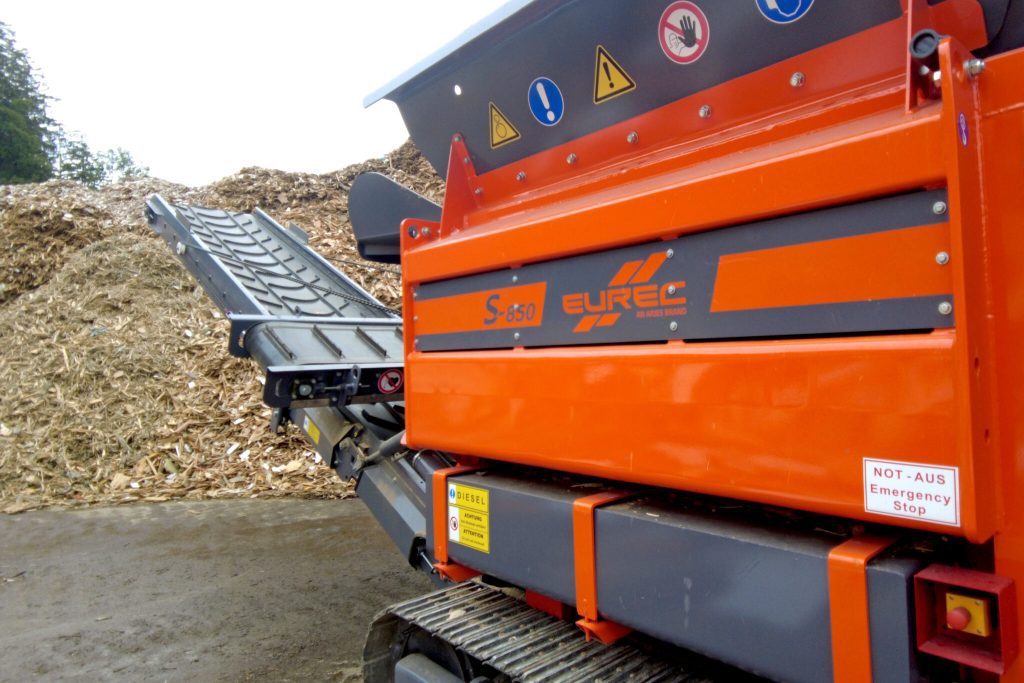

| DISCHARGE BELT | |
|---|---|
| Discharge Height (mm) | max. 5,400 |
| Width (mm) | 1,200 |
| Included | Overbelt magnet |

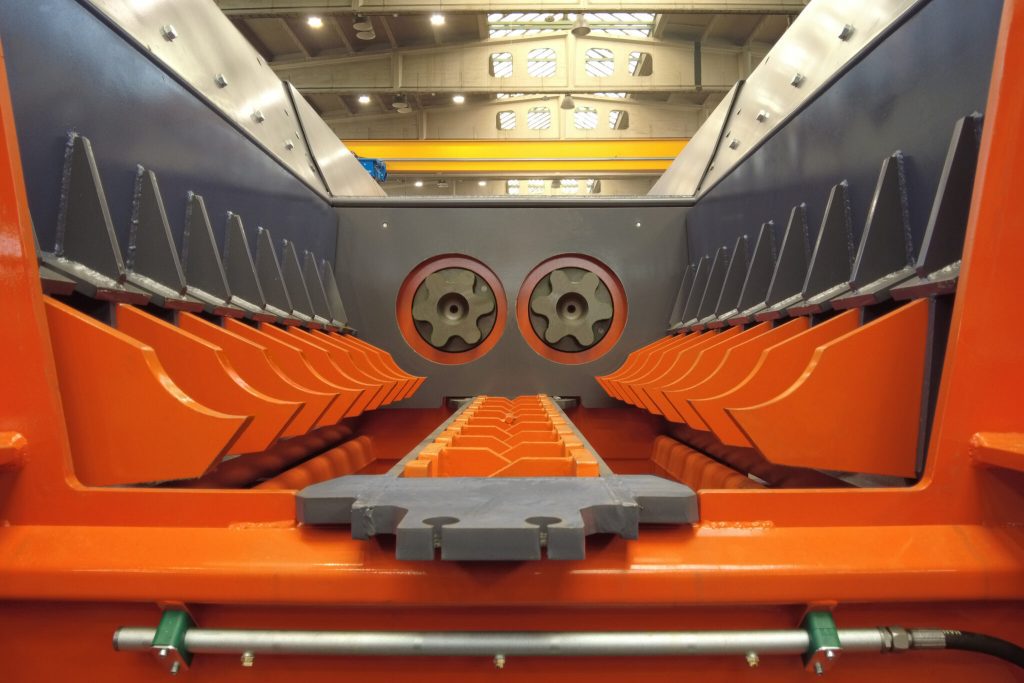

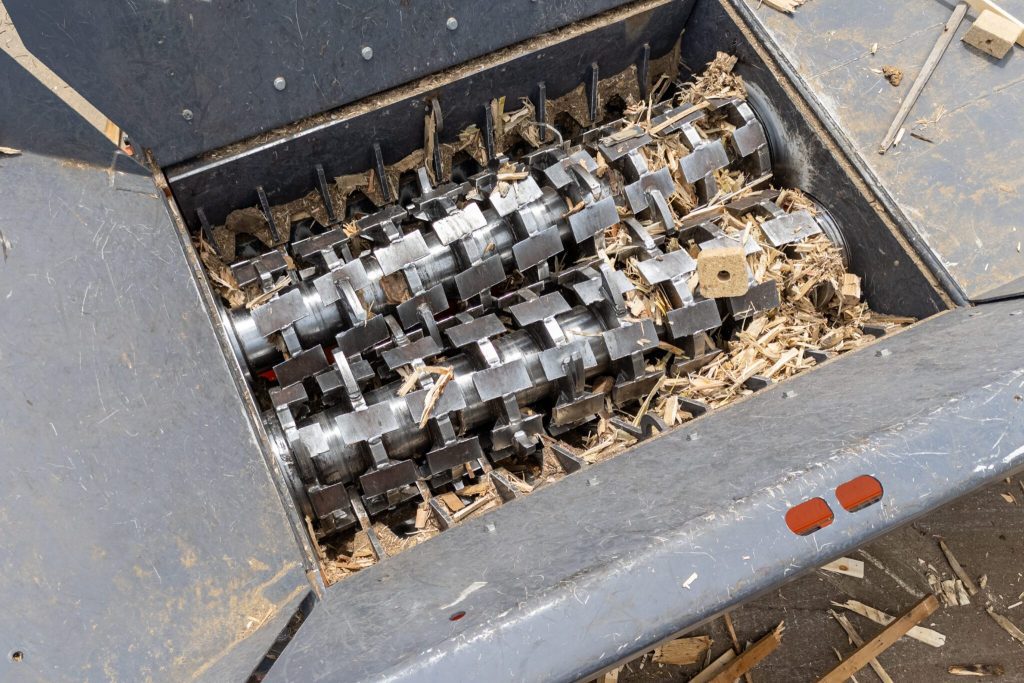

| SHREDDING UNIT | |
|---|---|
| Shaft length (mm) | 2,000 |
| Shaft diameter (mm) | 680 |
| Weight (kg / cassette) | 3,700 |
| Rotation speed (rpm) | 15 – 45 |
