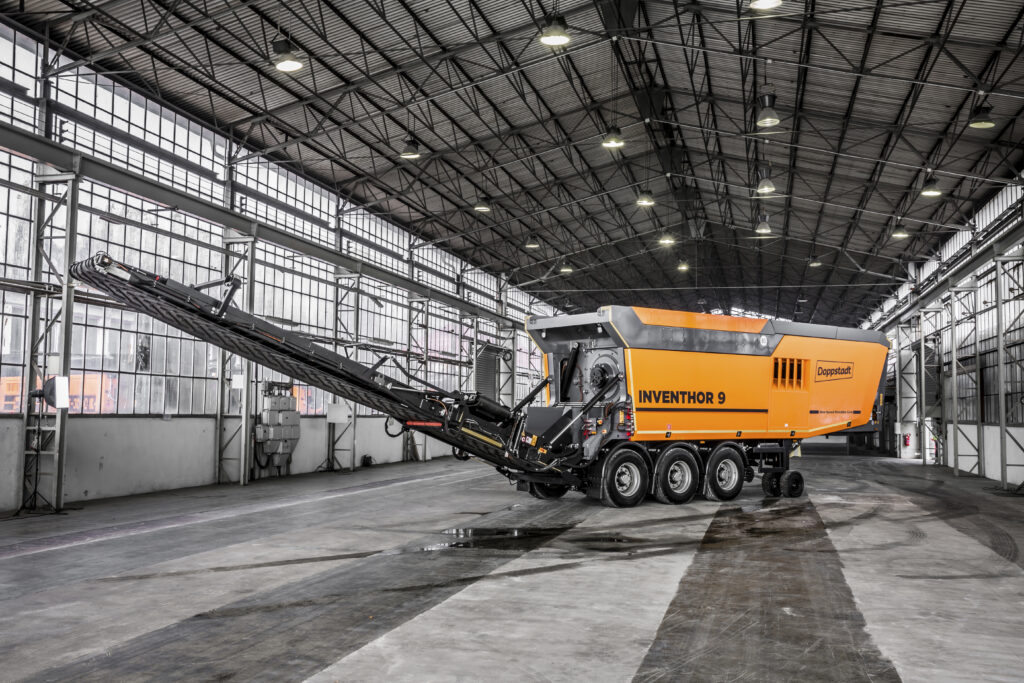

DOPPSTADT INVENTHOR 9

Discover the full range: INVENTHOR Brochure

The INVENTHOR 9 opens up completely new possibilities for effective shredding. From material feeding to discharge, it impresses with a range of innovations, including the new VarioDirect Drive, which delivers continuous power while reducing load on the motor, and the redesigned housing, providing optimum accessibility from all sides. No matter the material, the INVENTHOR 9 offers a top-tier solution for even the most demanding applications.

For enhanced versatility, the DoppBasket system is available as an option. With coarse or fine strip baskets, a wide variety of materials can be shredded consistently and at high quality. The DoppBasket system is ideal for waste and green waste, and is also highly effective for special applications such as mattresses, tires, carpets, fishing nets, or plastic pipes.

To suit different operational requirements, the INVENTHOR 9 is available as a tracked machine, semi-trailer, or drawbar trailer.

VERSATILITY REDEFINED – SHREDDING WITH DOPPBASKET.

The DoppBasket system enables an even more versatile and efficient use of your Inventhor 6.2. Because using a strainer basket brings you additional advantages:

Shredding of material to defined target grain size in just one step
Quick adaptation to changing requirements due to easy removal and assembly of the screen basket
Self-protective basket system – No fear of impurities thanks to movable basket, which opens if necessary
Long service life – The screen baskets are made of wear-resistant steel with high sheet thicknesses
Future-proof and retrofittable, even in existing machines

SHREDDER PACKAGES

Download Brochure

INVENTHOR 9	SEMI-TRAILER	TRACK-LAYING CHASSIS
Chassis	Semi-trailer chassis for 80 km/h, as per StVZO, with ABS brake system	Track-laying chassis for self-propelled drive, Two travel speeds
Overall weight	32,000 kg	35,000 kg
Length x Width x Height (mm)	16,786 x 2,500 x 5,050	16,786 x 3,000 x 4,890
Diesel Engine Type	MTU 6R1300	MTU 6R1300
Tank Capacity	950 L	950 L
Output	390 kW, 530 hp	390 kW, 530 hp
Optional Extras	“Limiter” oversize return, shredder packages of size M, S or XL, hydraulic drive, overbelt magnet, feed hopper, hopper attachment panels, misting system, winter package, LED light package	“Limiter” oversize return, shredder packages of size M, S or XL, rear belt length 7 m, overbelt magnet, feed hopper, hopper attachment panels, misting system, winter package, LED light package
