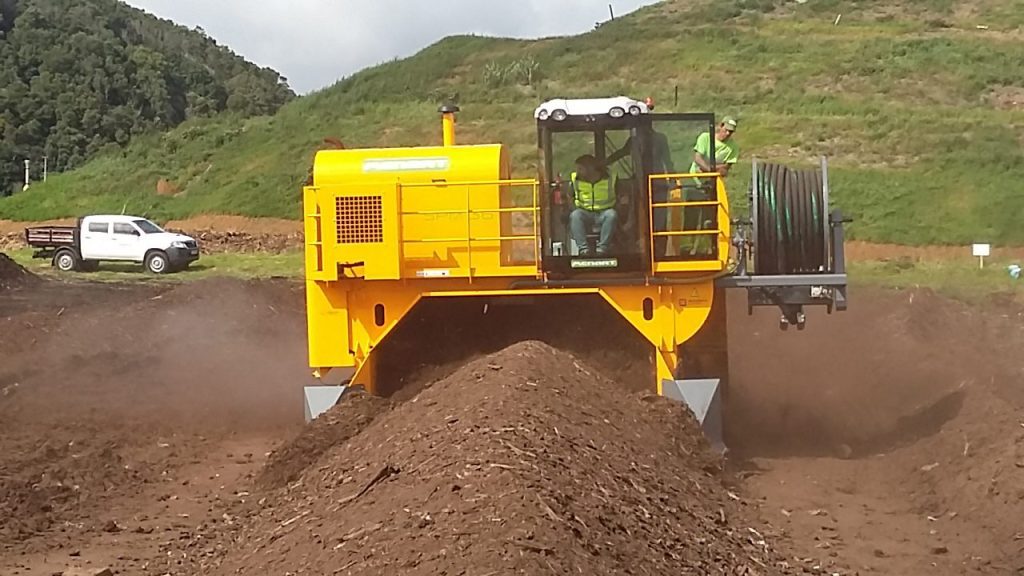

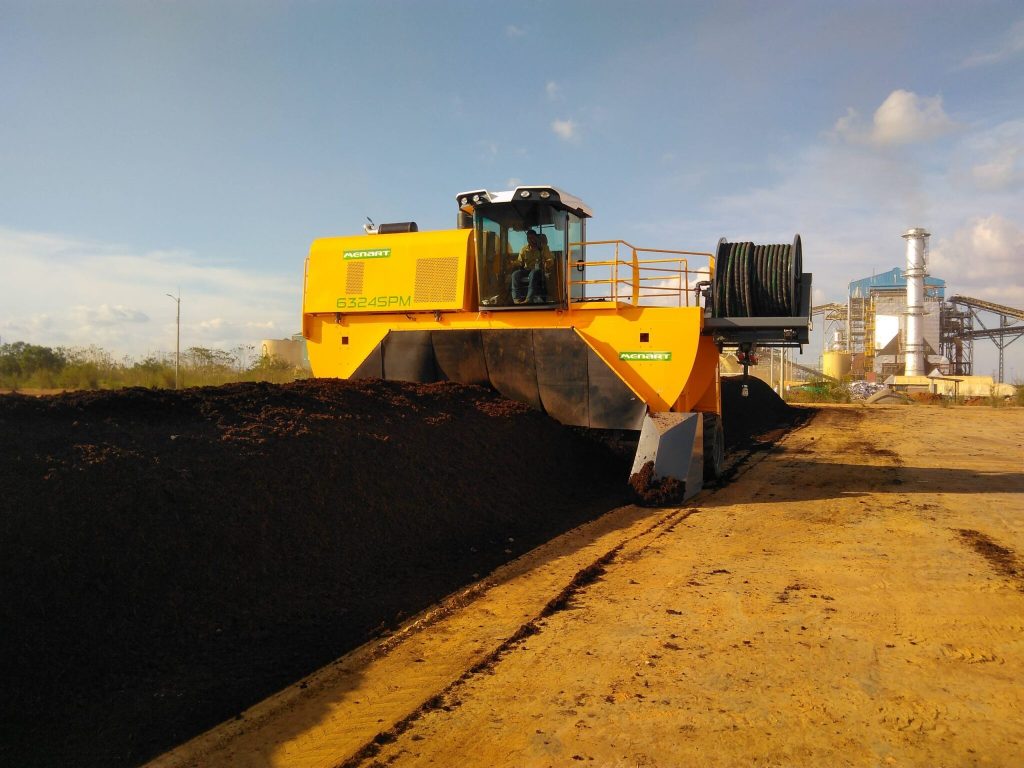

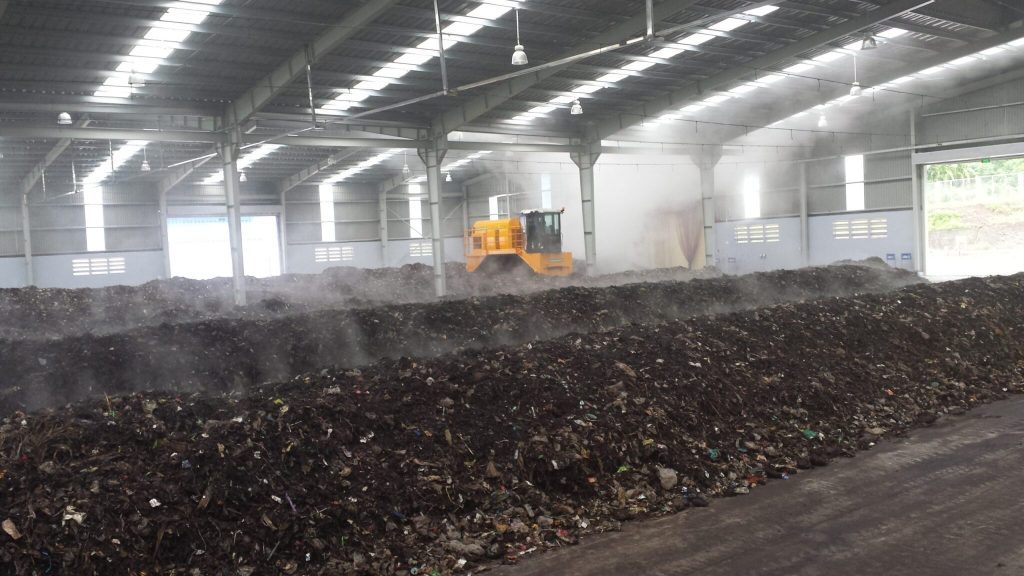

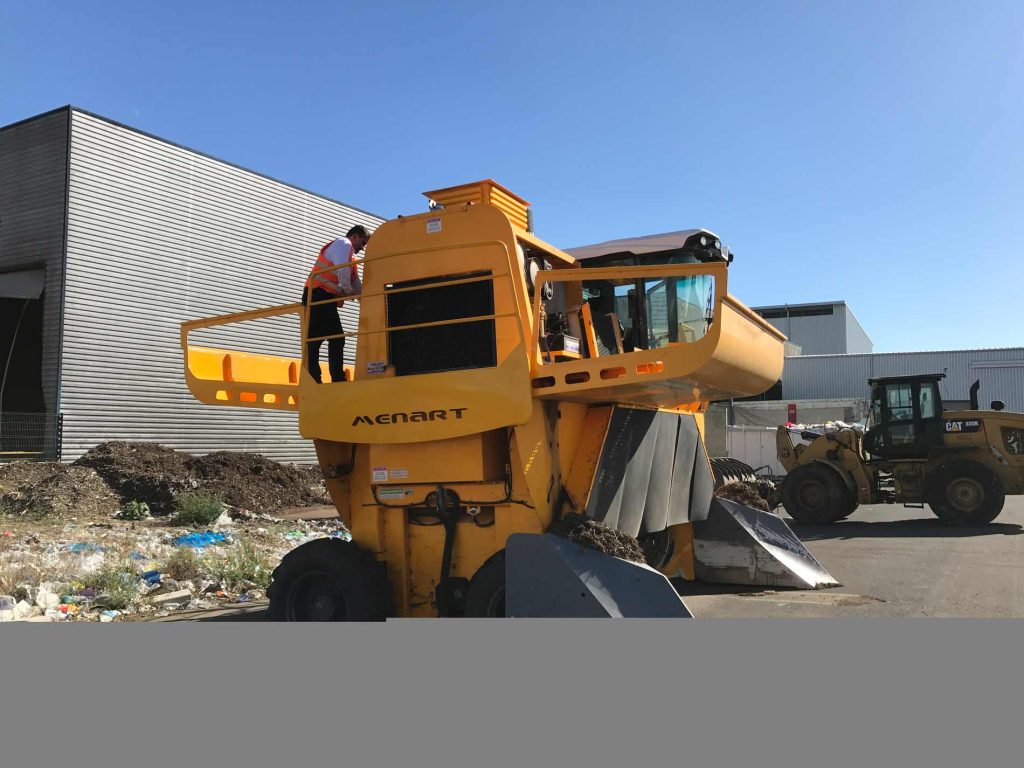

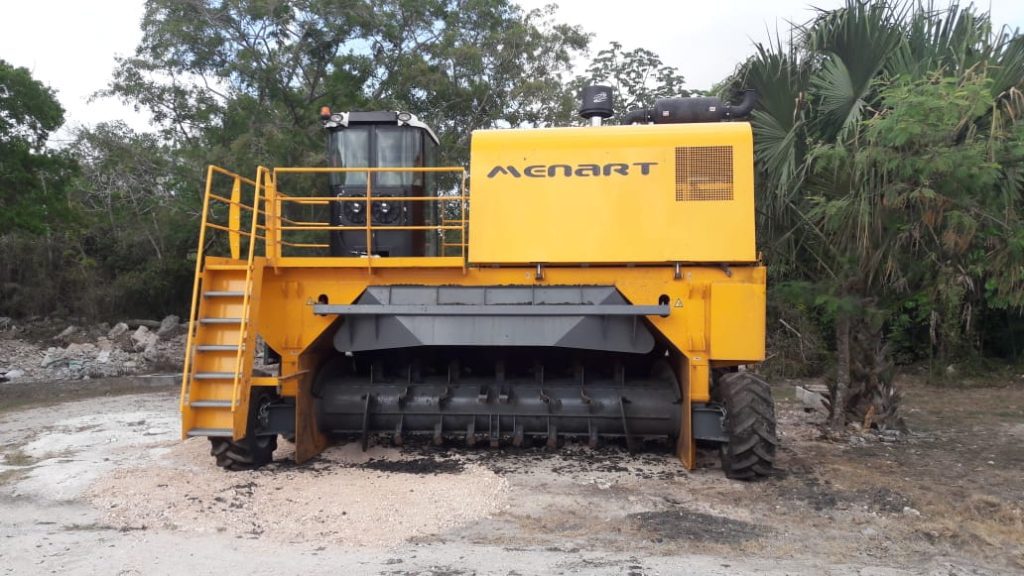

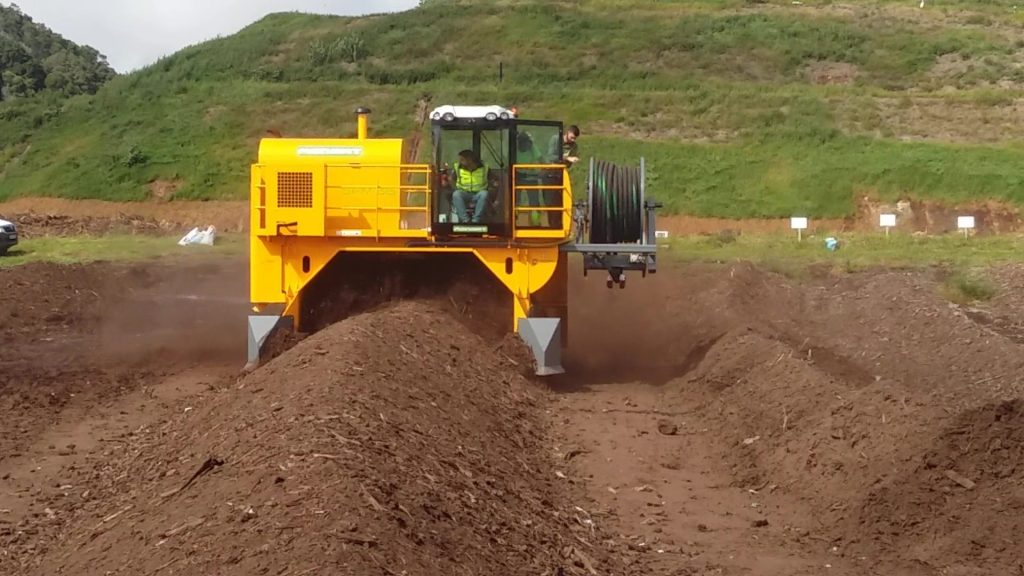

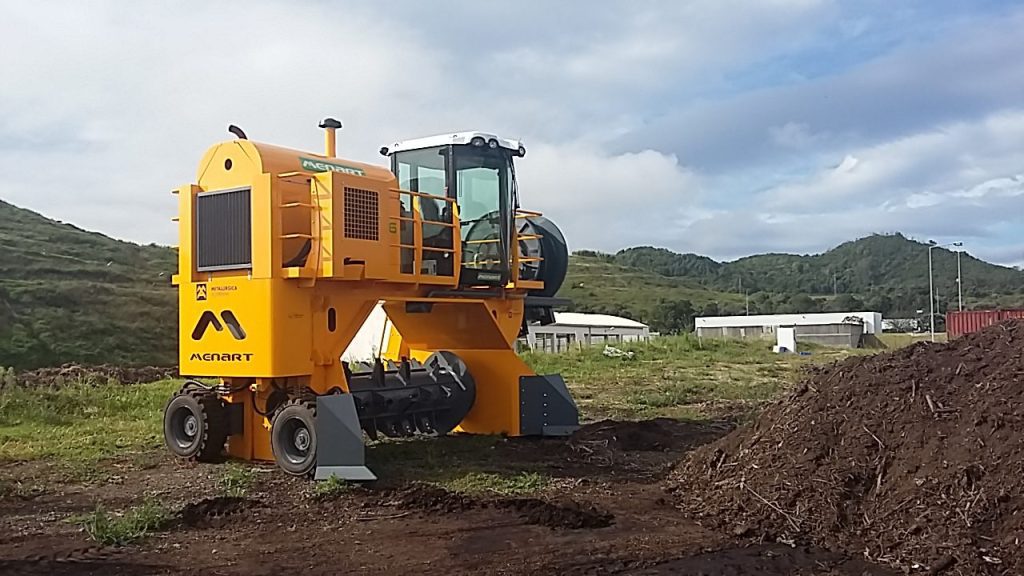

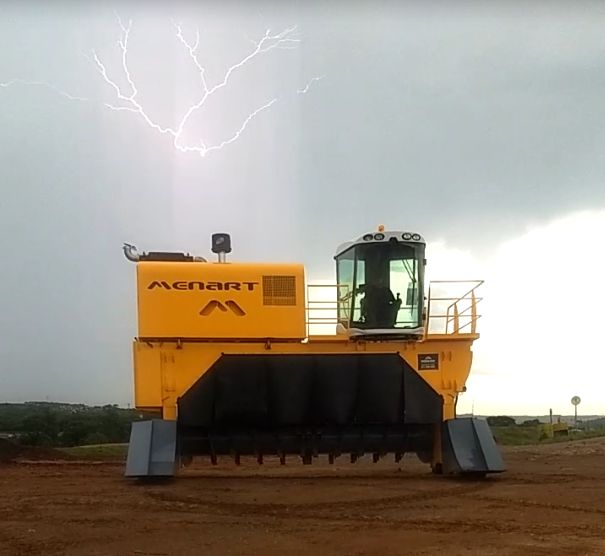

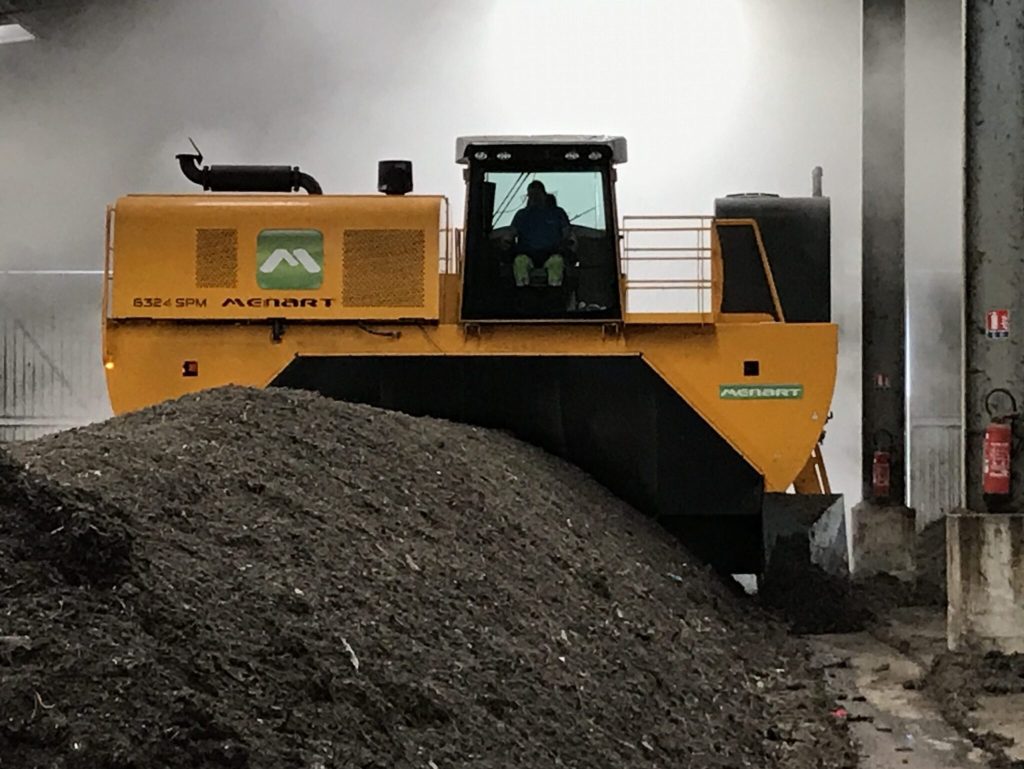

MENART SELF-PROPELLED TURNERS
MENART offer an extensive range of Self propelled turners. With six different size options, there is scope to satisfy a range of requirements and applications for any customer. The SPM series of MENART self propelled turners are renowned for their powerful and robust nature while maintaining all terrain manoeuvrability and a highly productive aeration and mixing process.
- Product Description
- Technical Specification
- Video
Product Description
Versions available:

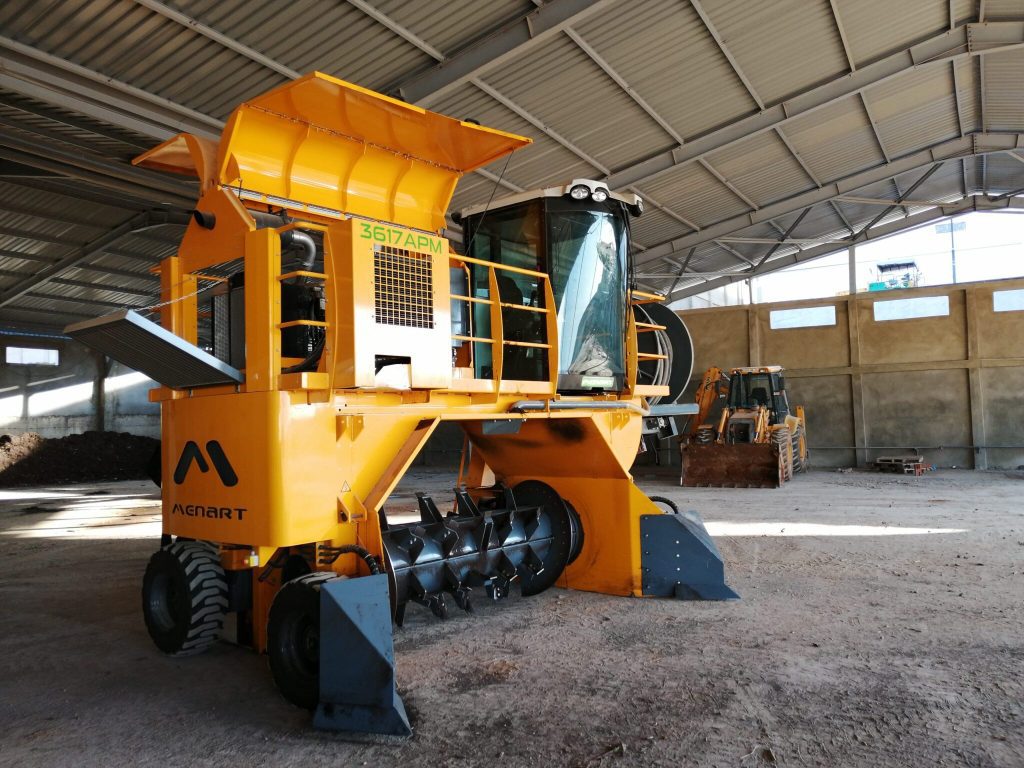

SPM-36 , SPM-47, SPM-58, SPM-63, SPM-73
Features at a glance…
⚙️Windrow Width Range: 3.9m – 7.3m
⚙️Powerful and robust with all terrain manoeuvrability
⚙️Track clearers improve traction grip, optimize composting area and can rotate at the end of the windrow
⚙️Designed to optimize aeration and mixing process: larger trapezoidal tunnel, powerful rotor drum, no compacting effect, left-right crossing flow

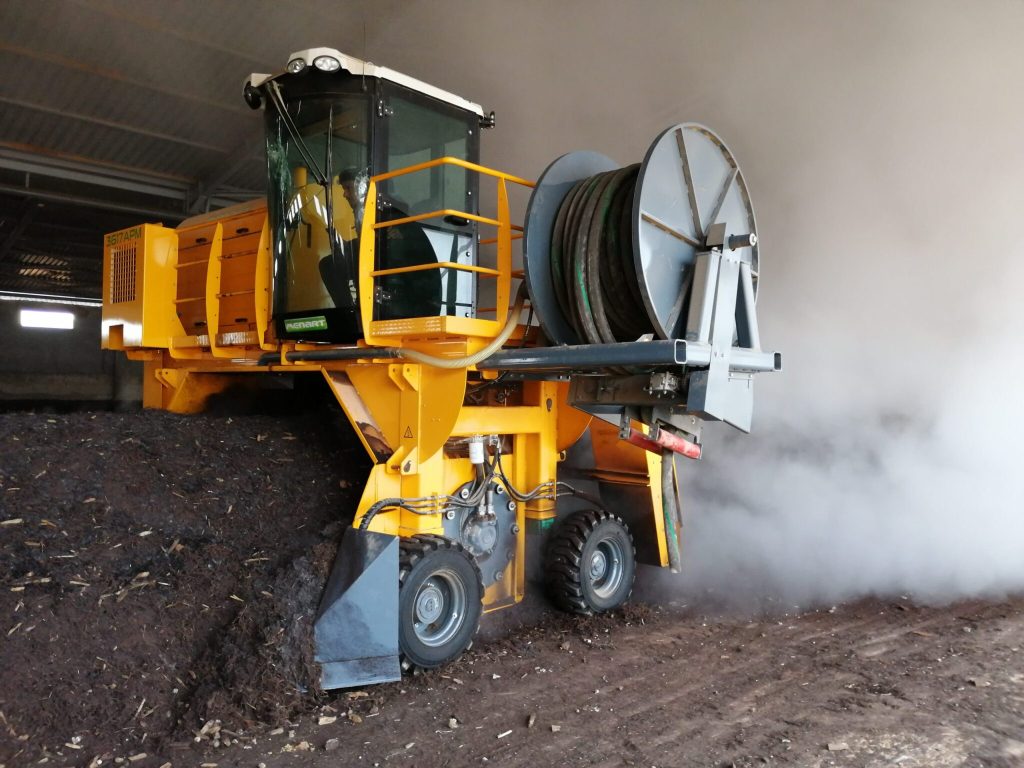

⚙️Optional: Irrigation connections, Automatic irrigation hose roller, Spraying device
Technical Specification
| SPM-36 | SPM-47 | SPM-58 | SPM-63 | SPM-73 | ||
|---|---|---|---|---|---|---|
| Engine Power | kW / hp | 110 / 147 | 168 / 225 | 205 / 275 | 280 / 375 | 470 / 630 |
| Max windrow width | m (ft) | 3,9 (11’9’’) | 4,9 (15’5’’) | 5,9 (19′) | 6,3 (20’8’’) | 7,3 (23’11’’) |
| Tunnel height | m (ft) | 1,7 (5’6’’) | 1,9 (6’2’’) | 2,1 (6’10’’) | 2,4 (7’10’’) | 2,8 (9’2’’) |
| Max windrow height -tunnel raised | m (ft) | 2,1 (6’10’’) | 2,4 (7’10’’) | 2,6 (8’2’’) | 2,9 (9’6’’) | 3,3 (10’9’’) |
| Indicative productivity | m³/h (yd³/h) | 2000 (2600) | 3000 (4000) | 4000 (5000) | 5300 (7000) | 7000 (9000) |
