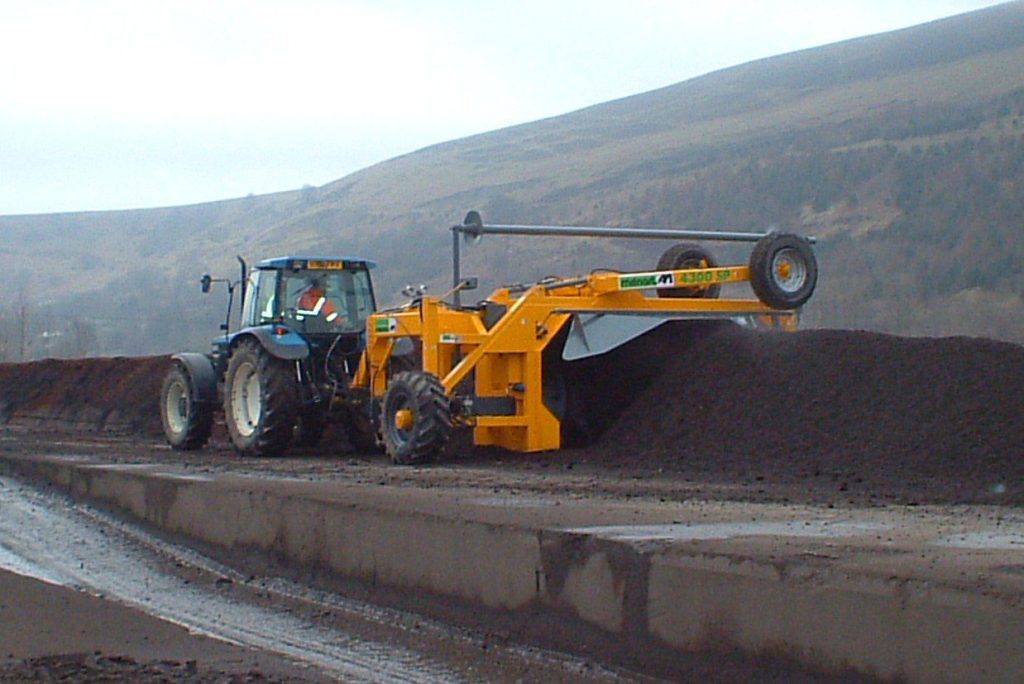

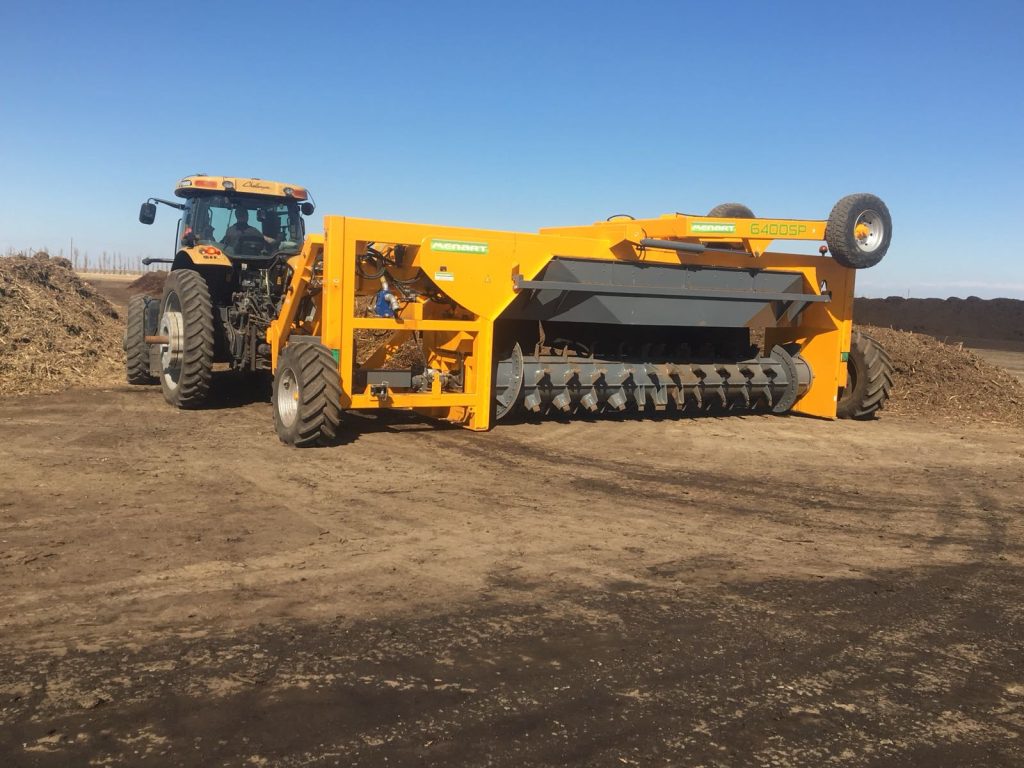

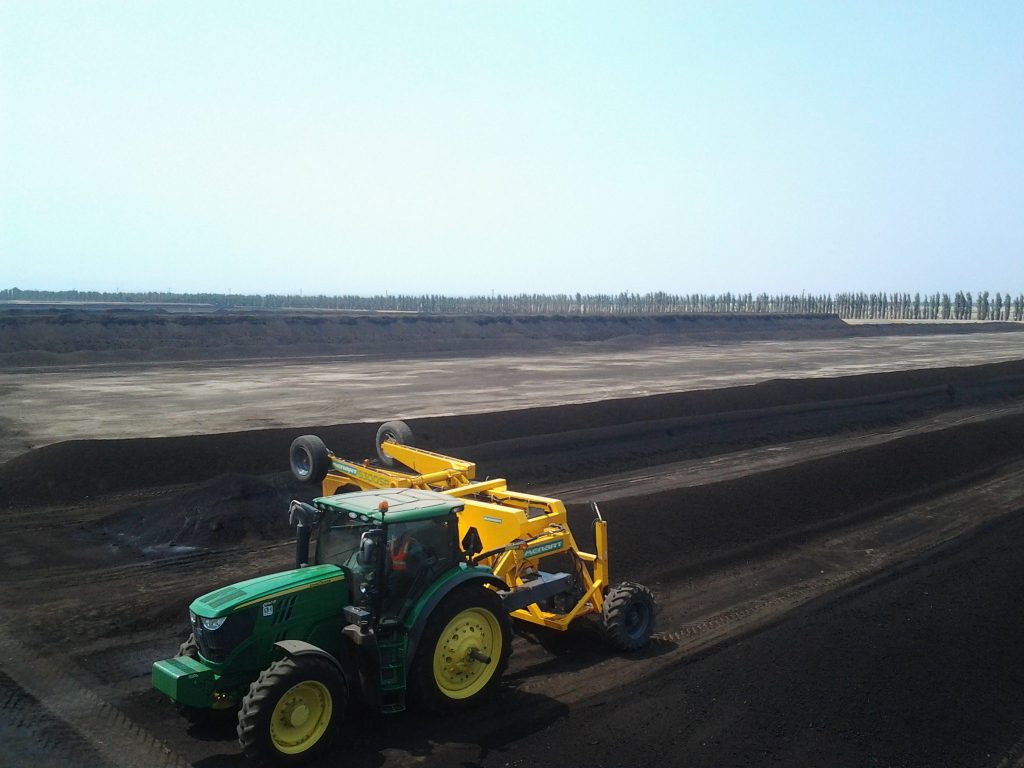

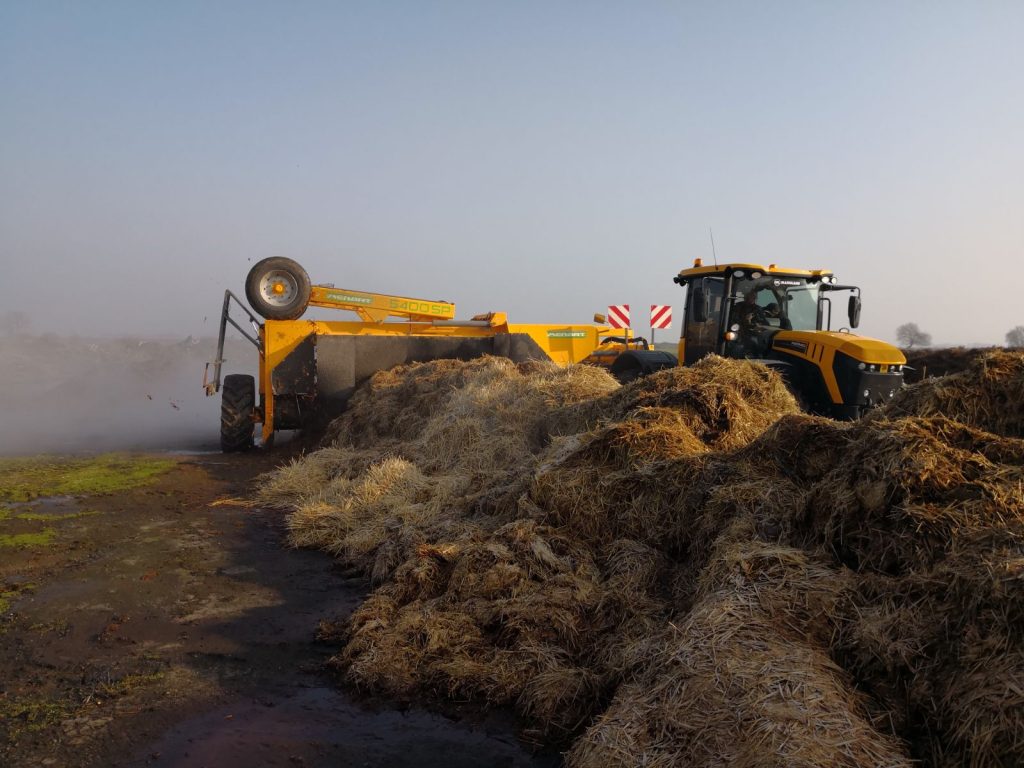

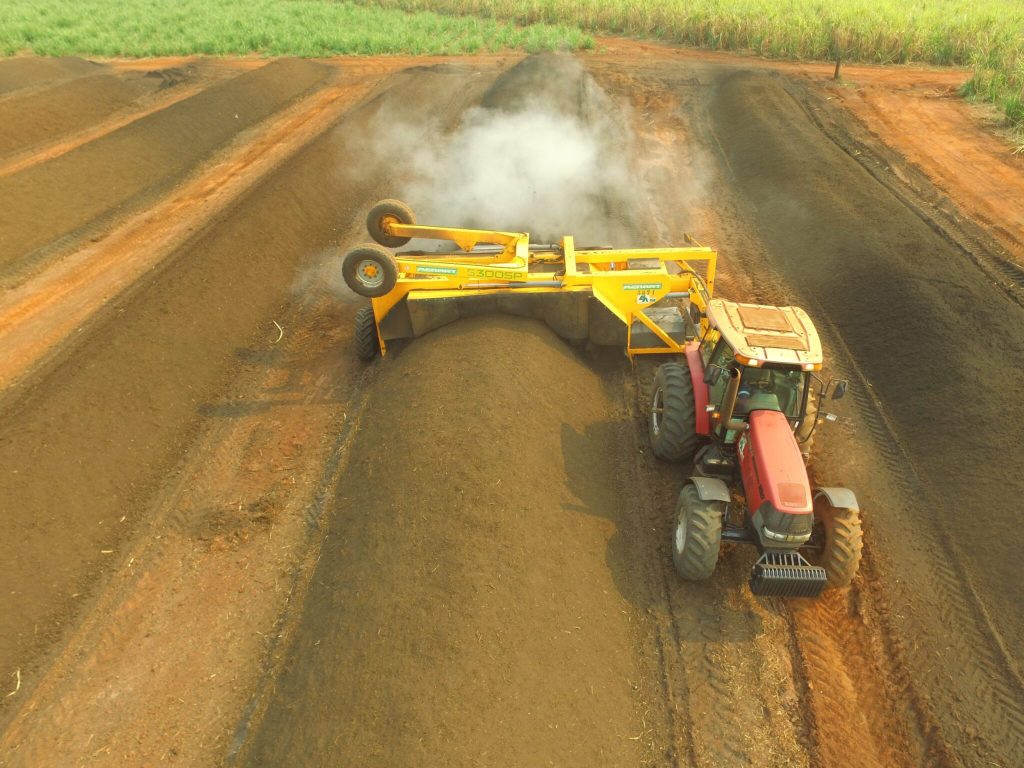

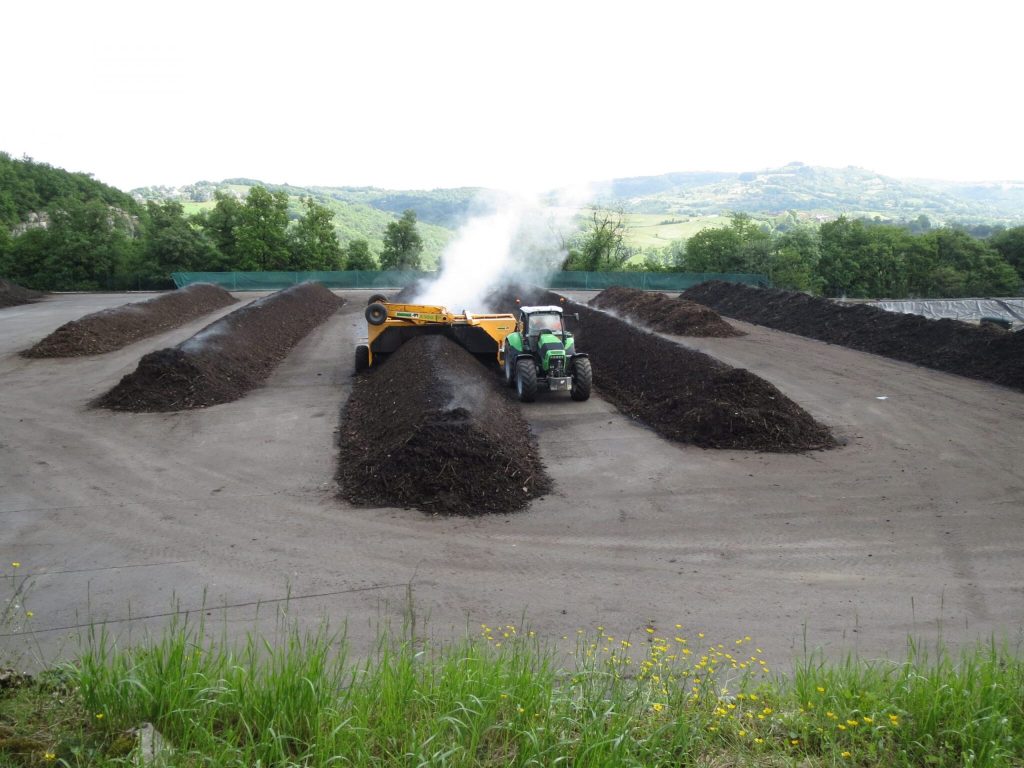

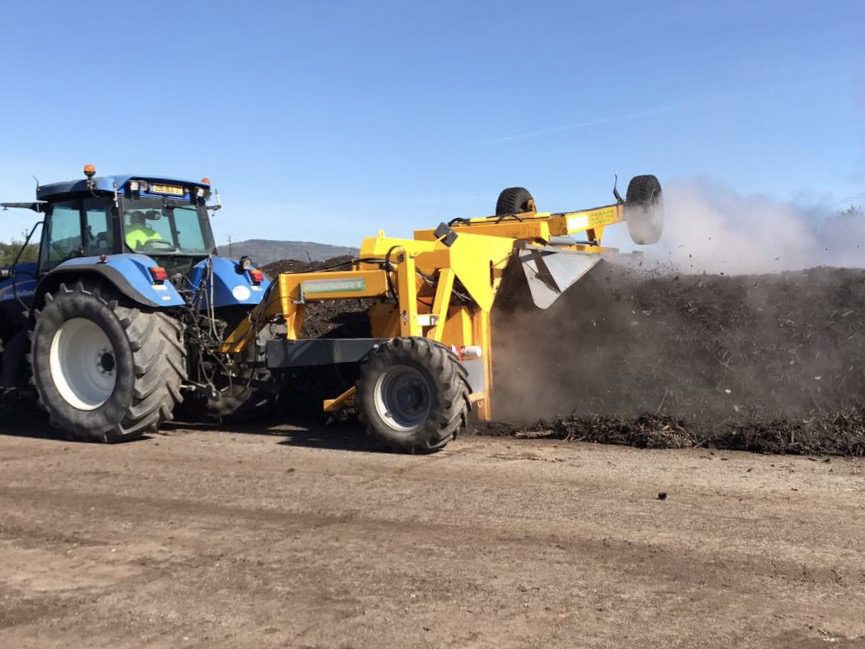

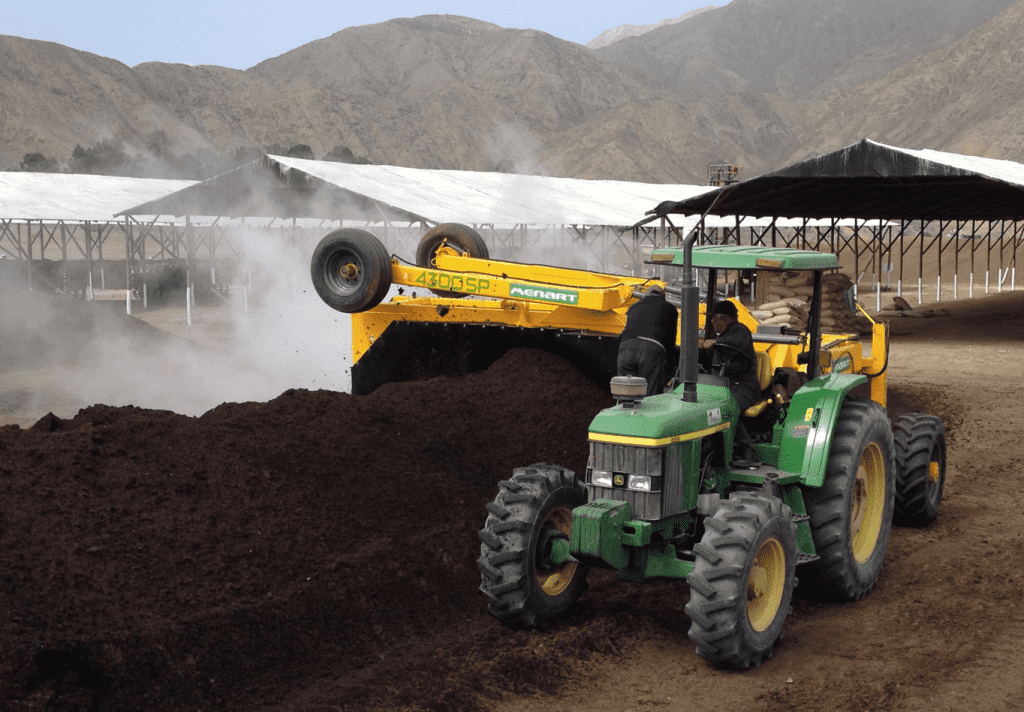

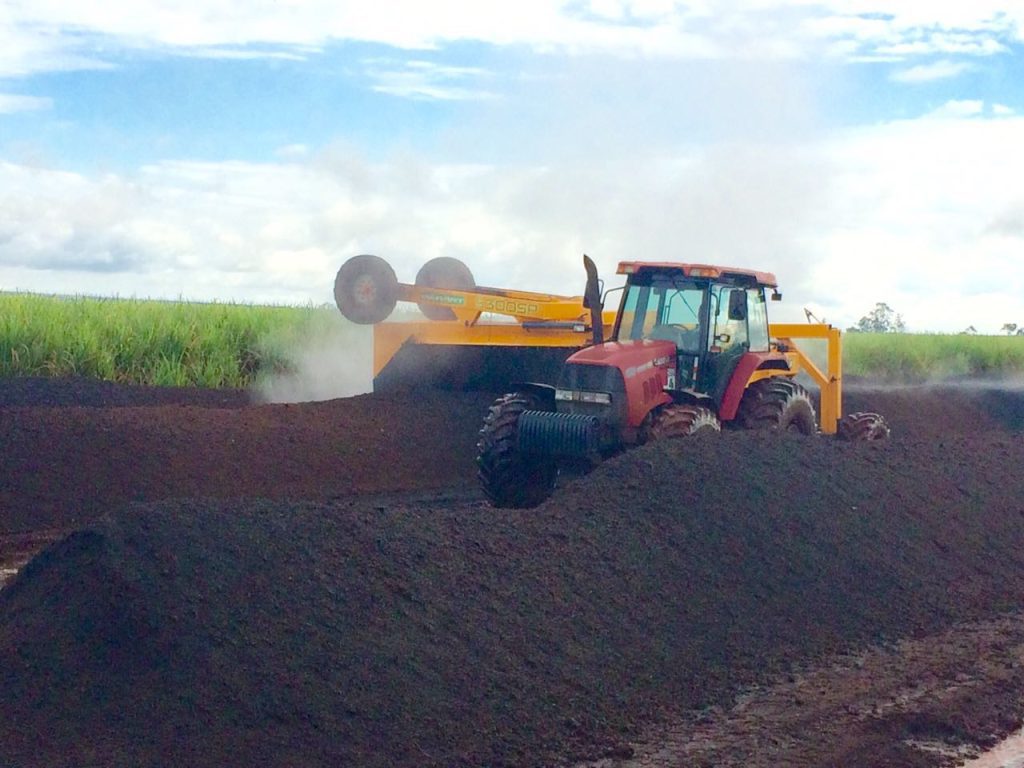

MENART Tow-Behind Turners
MENART offer an extensive range of Tow-Behind Turners. With five different size options there is scope to satisfy a range of requirements and applications for any customer. The SP series of MENART Tow Behind Turners are renowned for their powerful and robust nature while maintaining all-terrain manoeuvrability with the added benefit of also being transportable with ease and efficiency. This coupled with a highly productive mixing & aeration process makes the Tow Behind Turner an essential tool in the composting process.
Versions available

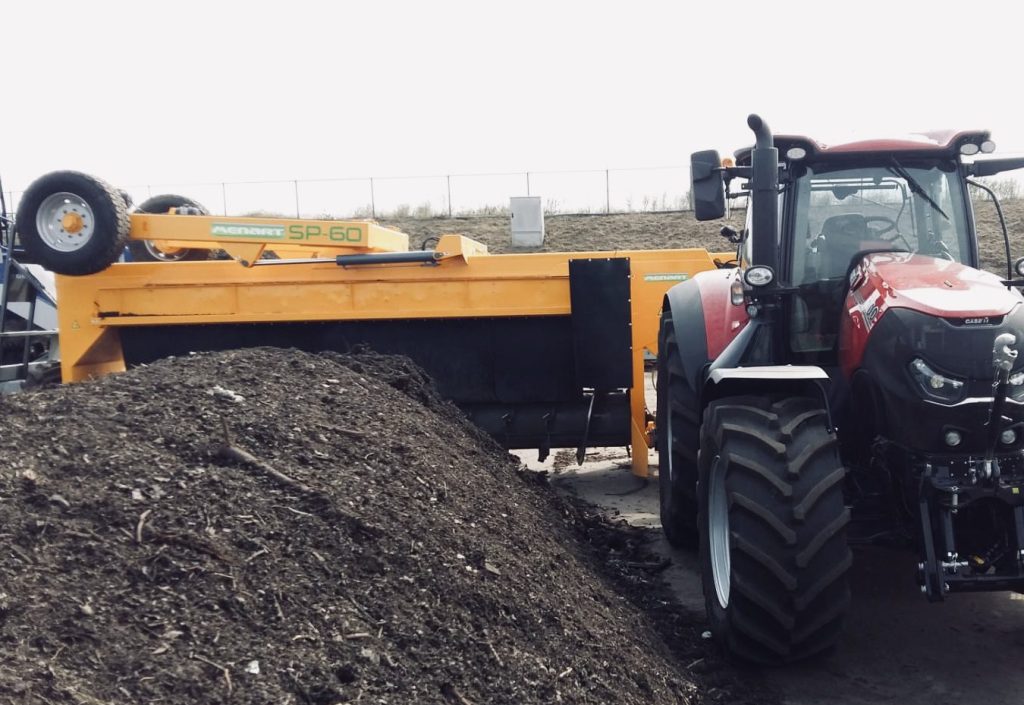

SP-30, SP-40, SP-45, SP-50, SP60
- Product Description
- Technical Specification
Product Description
Features at a glance…
⚙️Windrow Width Range: 3.4m – 6.4m
⚙️SP Series process the widest and highest windrows in the world, at a very high speed

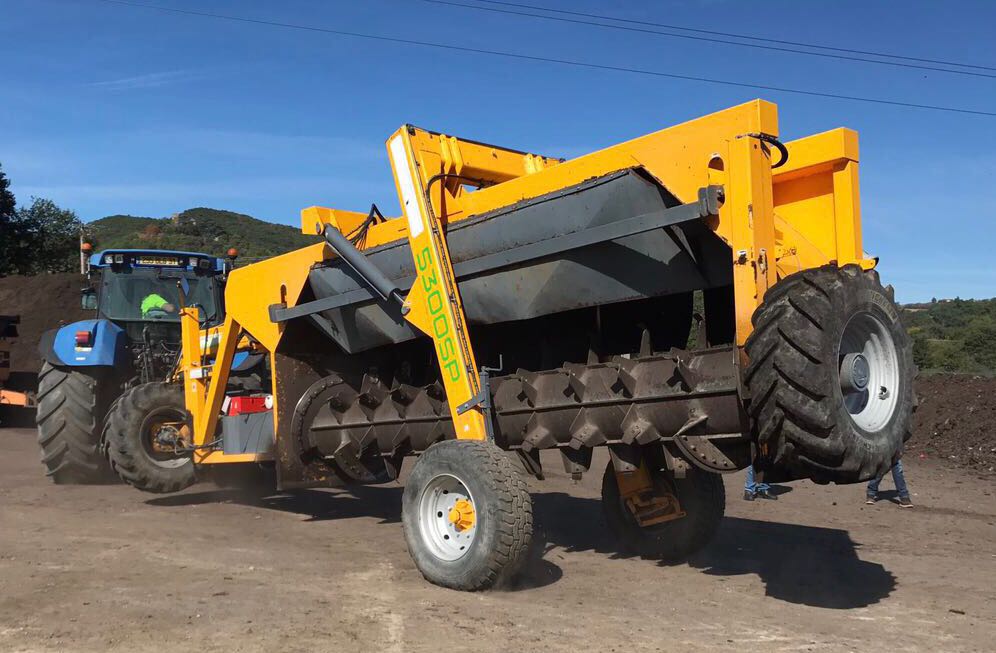

⚙️Powerful rotor drums and 50cm tunnel raising capability enables the SP Turners to process every matter even under extreme conditions
⚙️Specific paddle orientation and large open tunnel creates the highest level of mixing and aeration possible even at the bottom right of the windrow
⚙️Optional: Liquid injection connections, Spraying devices, Reinforced rotor drum
Technical Specification
| SP-30 | SP-40 | SP-45 | SP-50 | SP-60 | ||
|---|---|---|---|---|---|---|
| Indicative Tractor Power | hp | 90 | 110 | 150 | 180 | 250 |
| Max windrow width | m (ft) | 3,4 (11’1′) | 4,4 (14’5”) | 4,9 (16’0”) | 5,4 (17’8”) | 6,4 (21′) |
| Tunnel height | m (ft) | 1,7 (5’6”) | 1,8 (5’10”) | 1,9 (6’2”) | 2 (6’6”) | 2,2 (7’2”) |
| Max windrow height -tunnel raised | m (ft) | 2,2 (7’2”) | 2,3 (7’6”) | 2,4 (7’10”) | 2,5 (8’2”) | 2,7 (8’6”) |
| Indicative capacity | m³/h (yd³/h) | 1100 (1400) | 1800 (2350) | 2100 (2750) | 2500 (3300) | 4000 (5200) |
