Available As

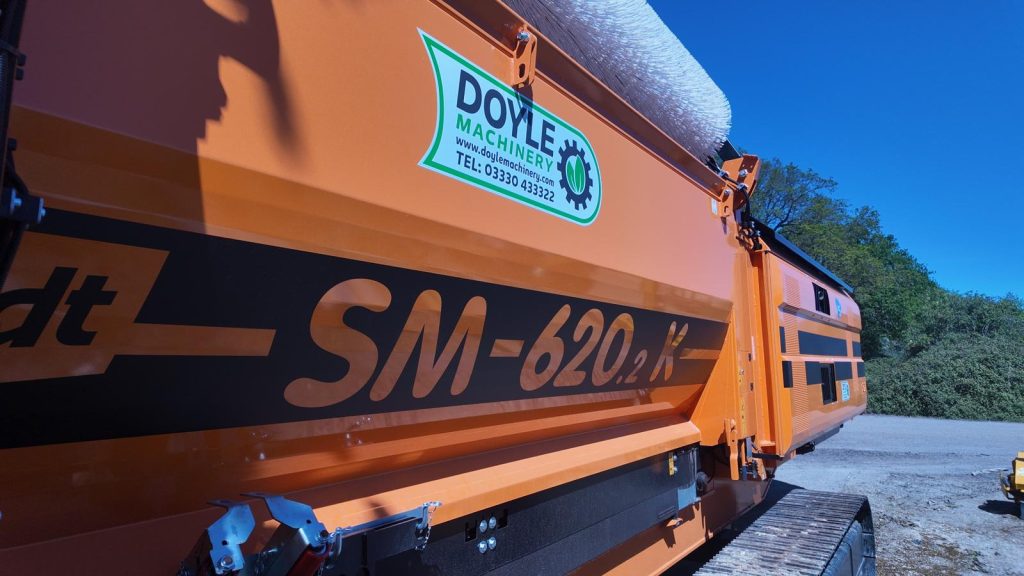

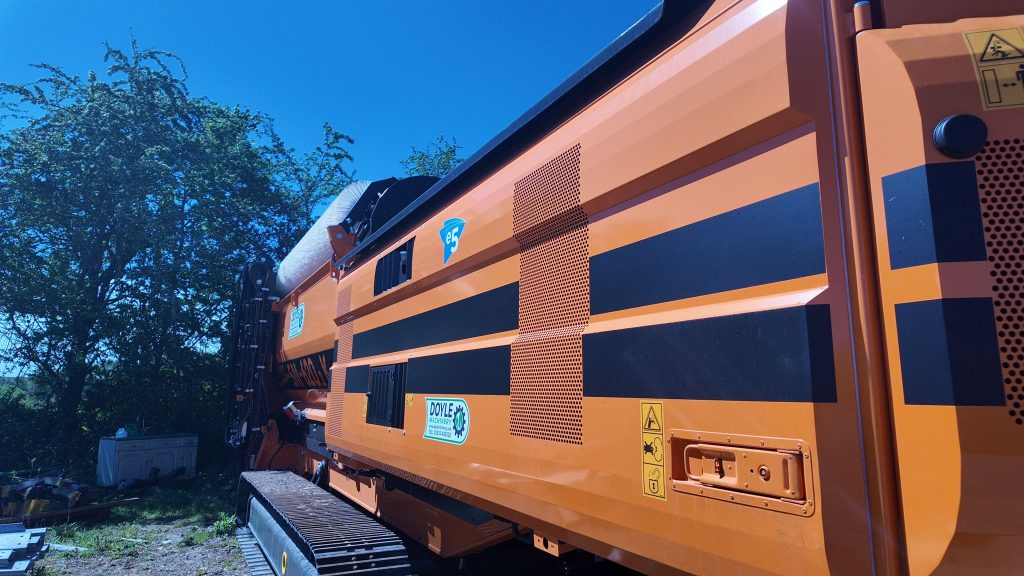

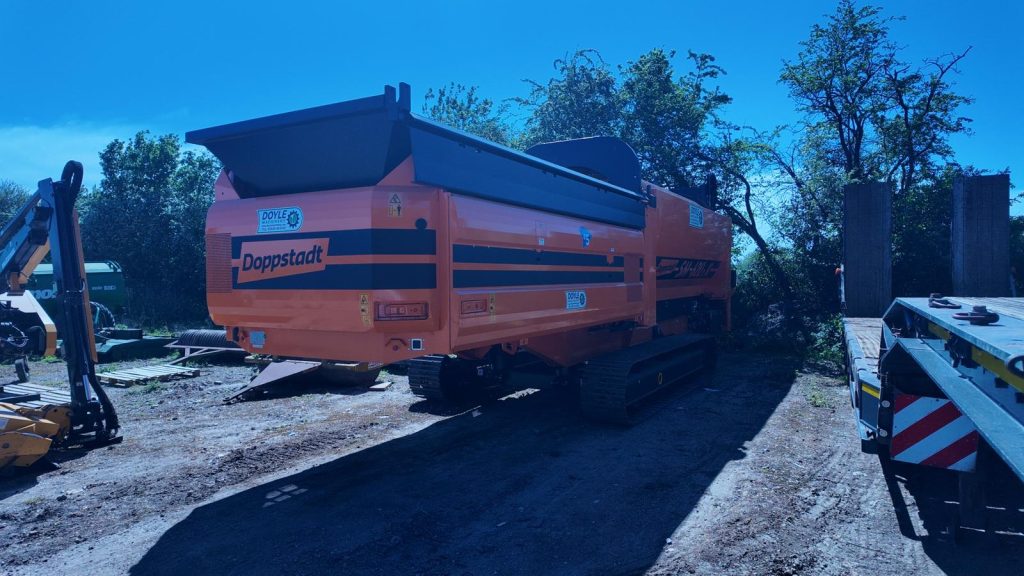

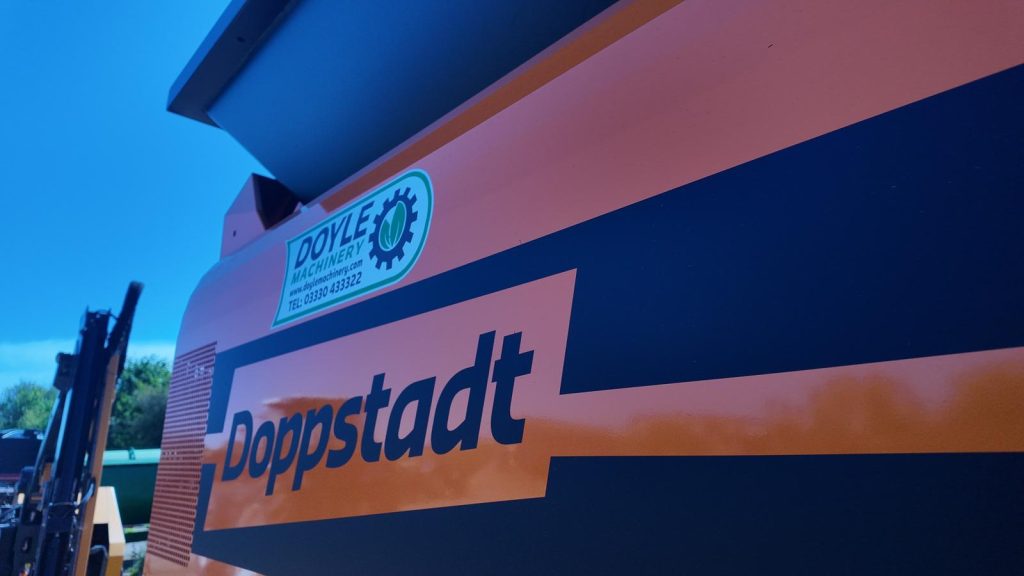

DOPPSTADT SM 620.2

Discover the Full Range: SM Brochure

The Doppstadt SM Trommel 620.2 is a robust, high-performance mobile trommel screening machine engineered for demanding separation and material processing applications. Designed with versatility and efficiency in mind, the SM 620 delivers reliable, high-capacity screening across a broad range of materials from compost and soil to construction waste, wood, biomass and aggregates making it ideal for recycling, waste management and resource recovery operations.

Download Brochure Download Brochure

	SM 620.2K	SM 620.2SA
Chassis	Tracked chassis with two travel speeds	Semi-trailer
Overall weight	24,000 kg	24,000 kg
Length x Width x Height (mm)	15,350 x 7,195 x 3,630	15,370 x 6,945 x 3,470
Engine Type	Diesel: DEUTZ TCD 3.6 L4 (Hydraulic)	Diesel: DEUTZ TCD 3.6 L4 (Hydraulic) \| Electric: Three-phase motor
Tank Capacity/Connection	400L	Diesel: 400L \| Electric:125a or 150a
Output	85 kW / 116 HP	Diesel: 85 kW / 116 HP \| Electric: 55 kW or 75 kW
Optional Extras	3rd fraction using stone grid or vibrating screen, 4th fraction using rear conveyor windsifter, 5th fraction magnetic pulley	Two screening fractions, Options: 3rd fraction using stone grid or vibrating screen, 4th fraction using rear conveyor windsifter, 5th fraction magnetic pulley

Request Doyle Brochure
