Doppstadt Methor
METHOR – THE MULTITOOL
Versatility in a new dimension: more flexibility. more efficiency.
Highly adaptable and exceptionally versatile within its class, the Methor is designed to handle whatever material flow arrives on site. As a true multi-purpose recycling system, it delivers consistent performance even in demanding environments.
From opening (bags), dosing and feeding through to disintegration, crushing and cutting, the unit is built to be robust, contamination-resistant, and capable of handling a wide spectrum of tasks across challenging conditions.
- Methor
- The Future Is Mobile-modular
- Video
- Technical Specification

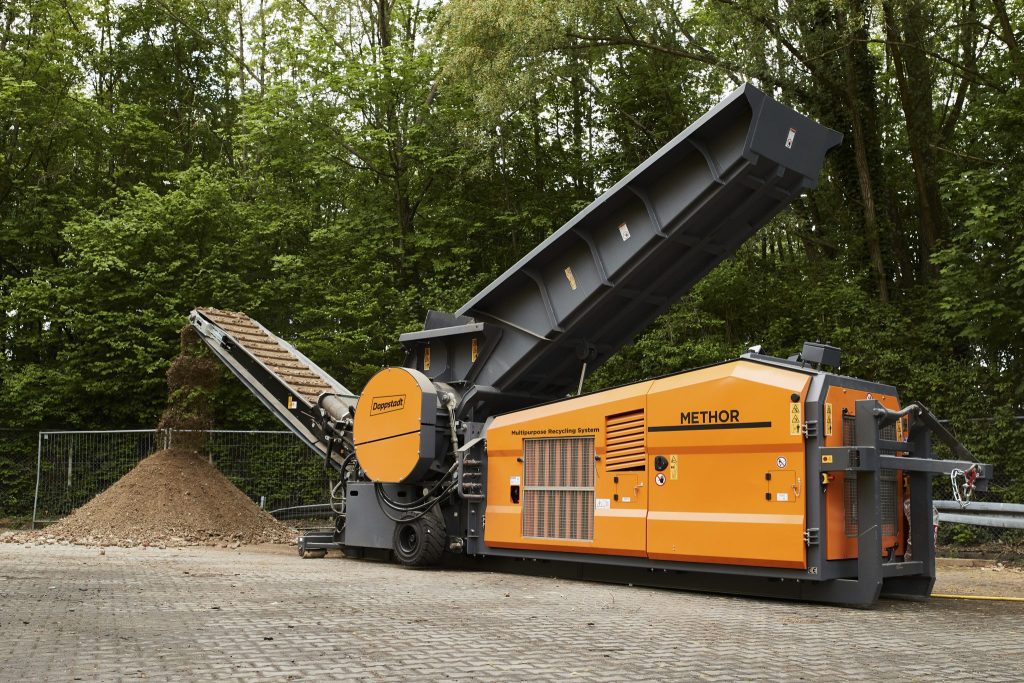

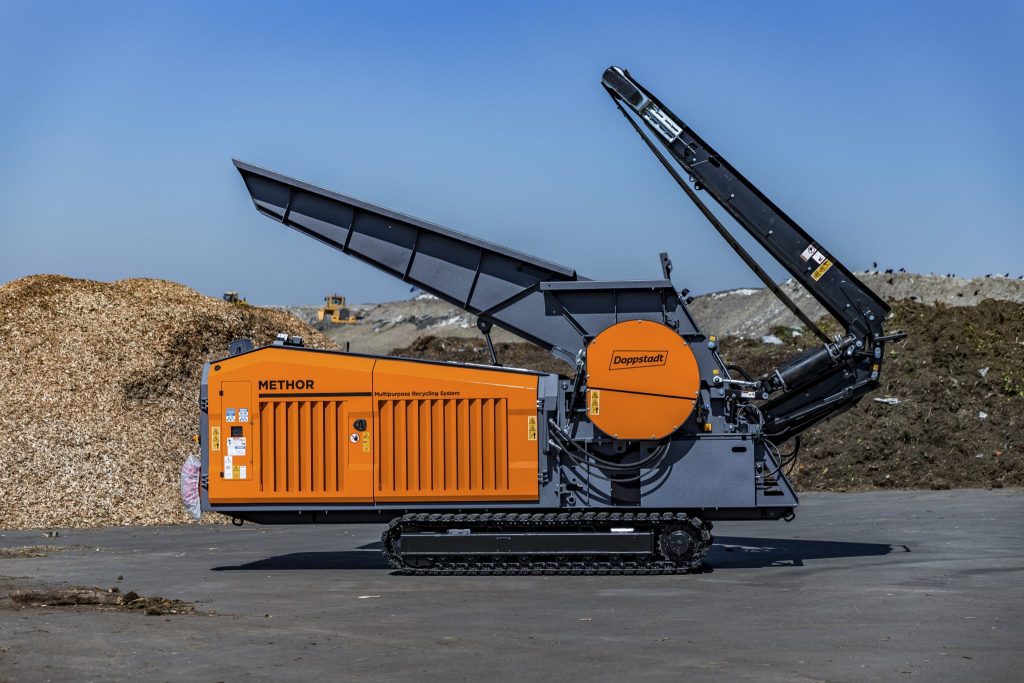

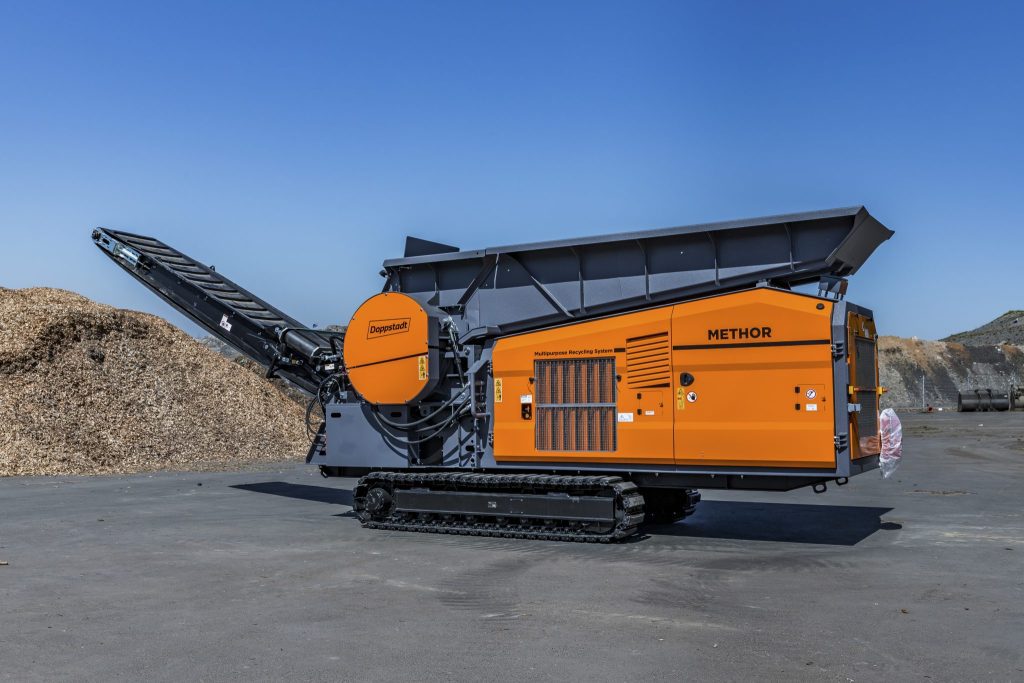

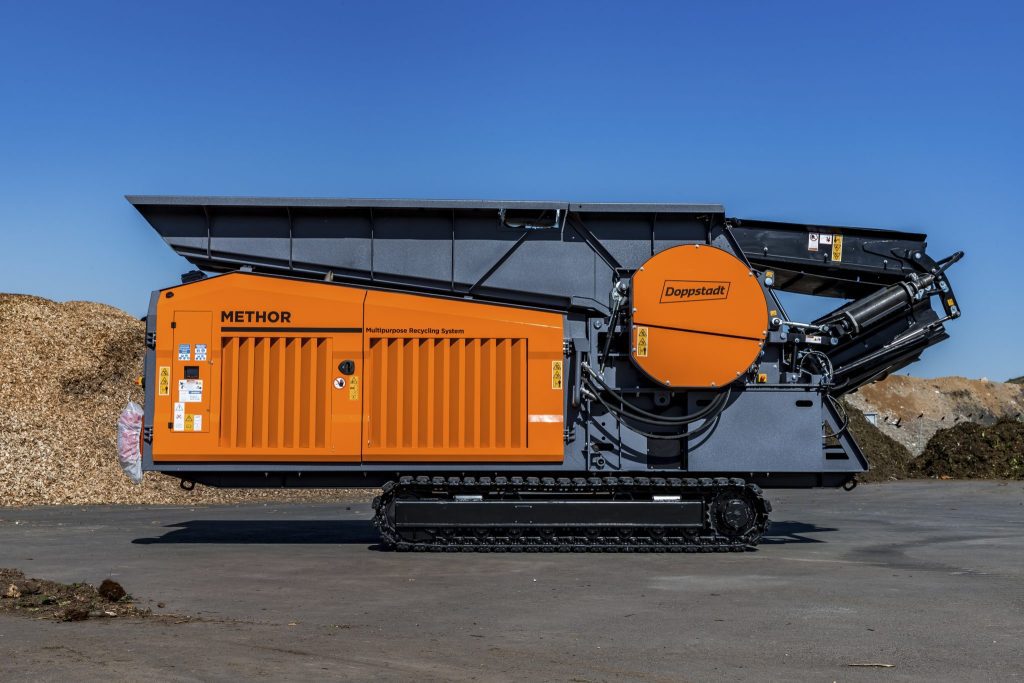

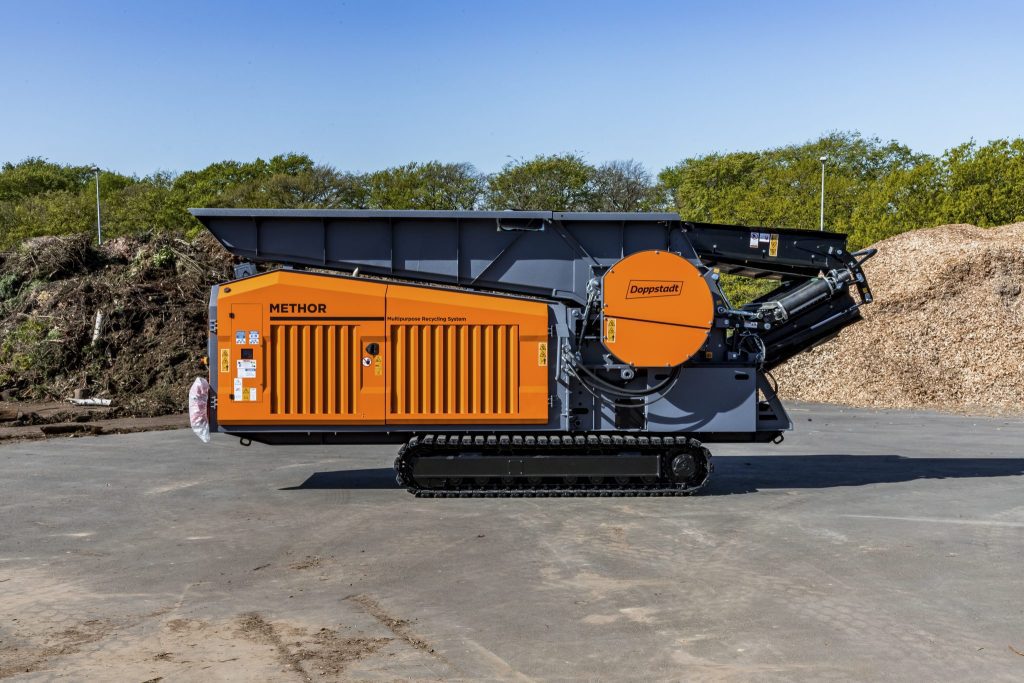

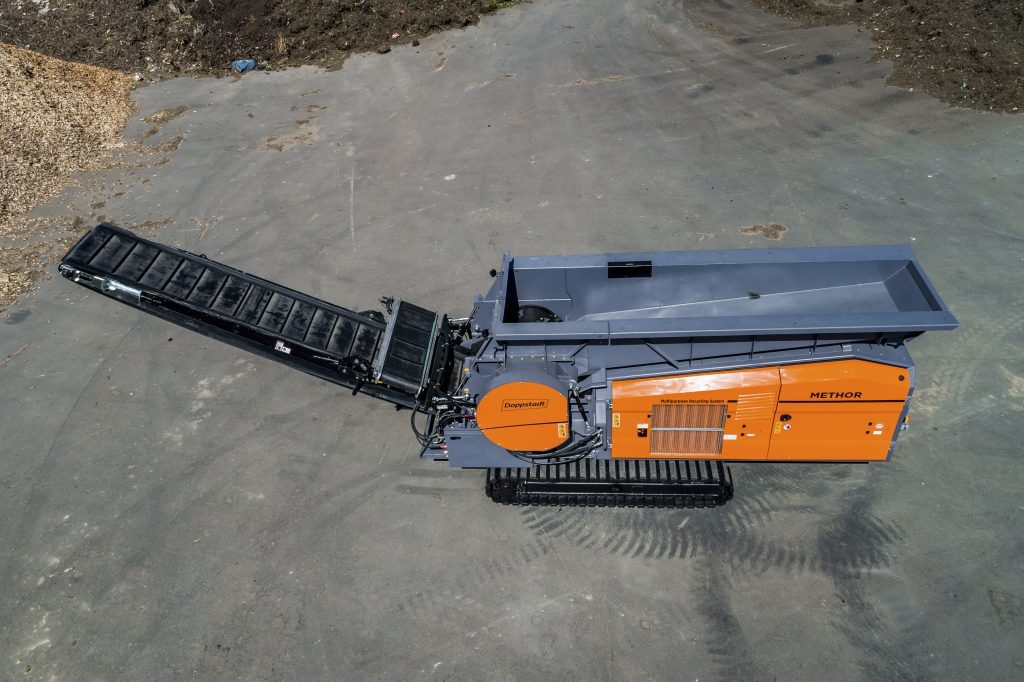

Methor

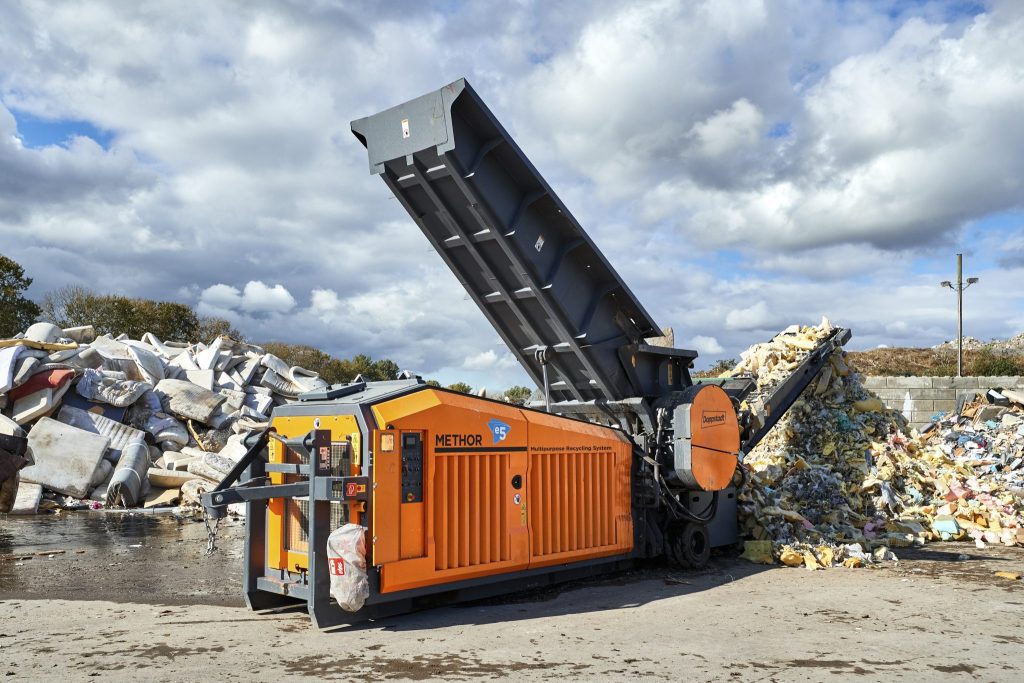

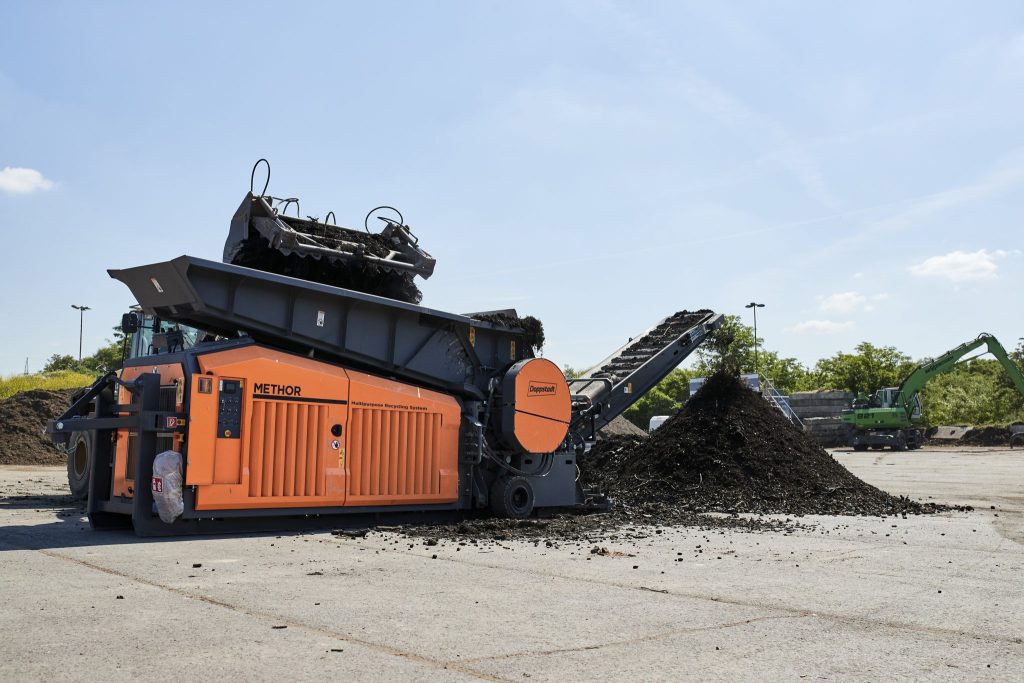

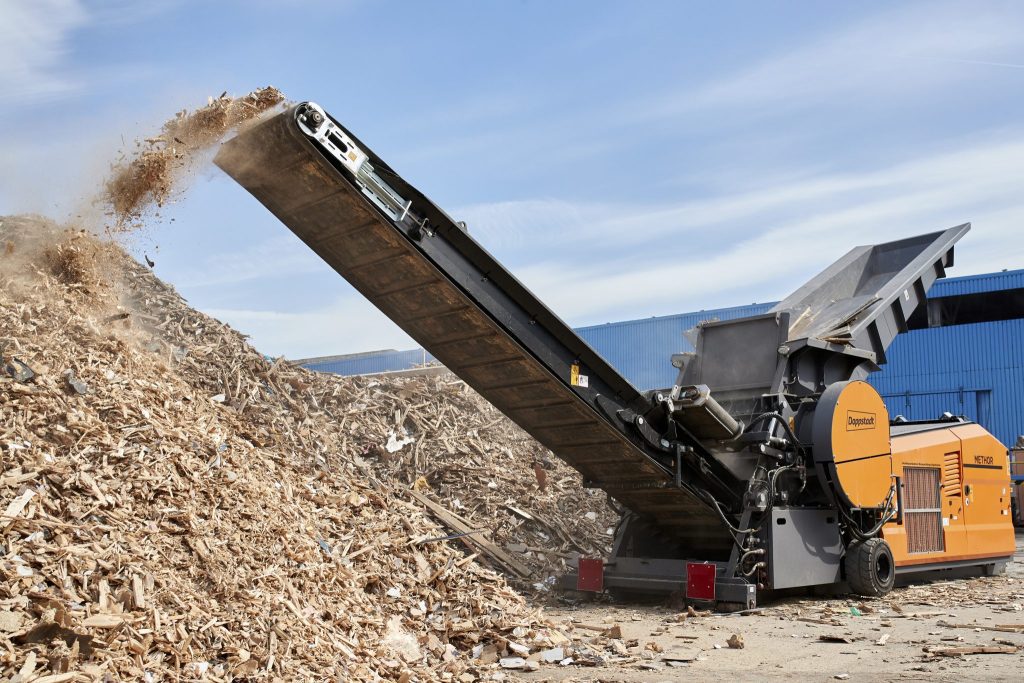

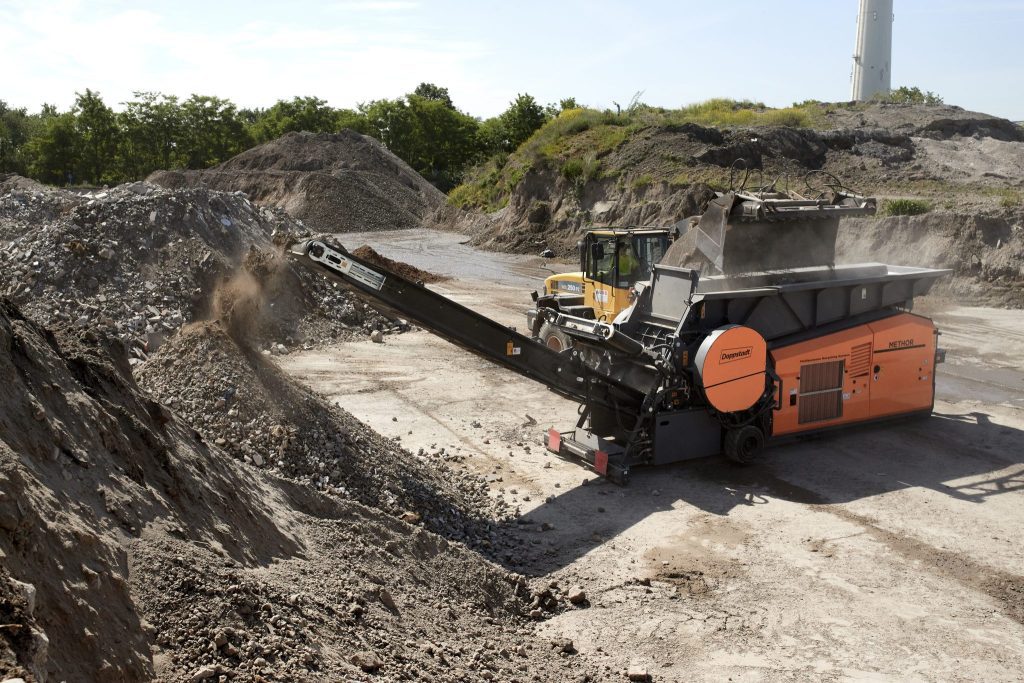

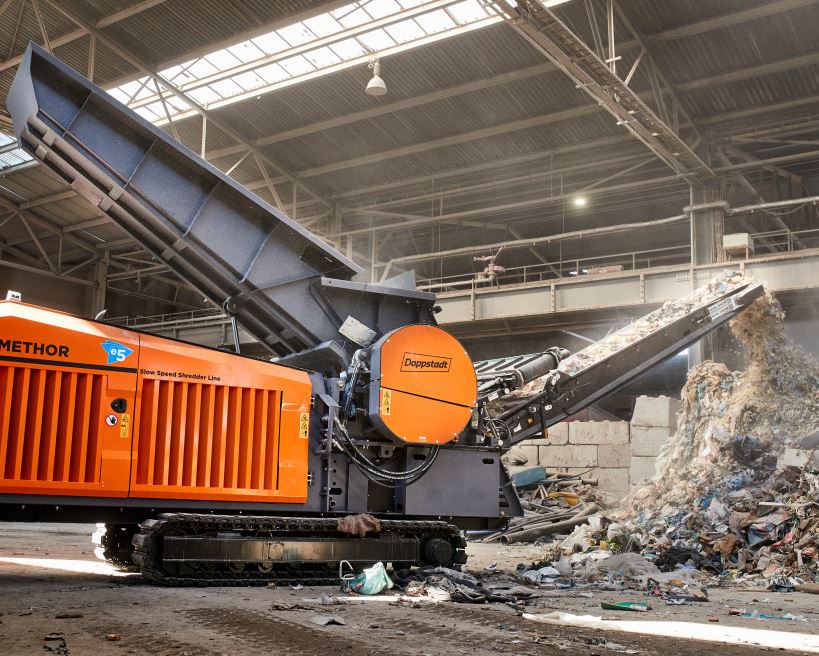

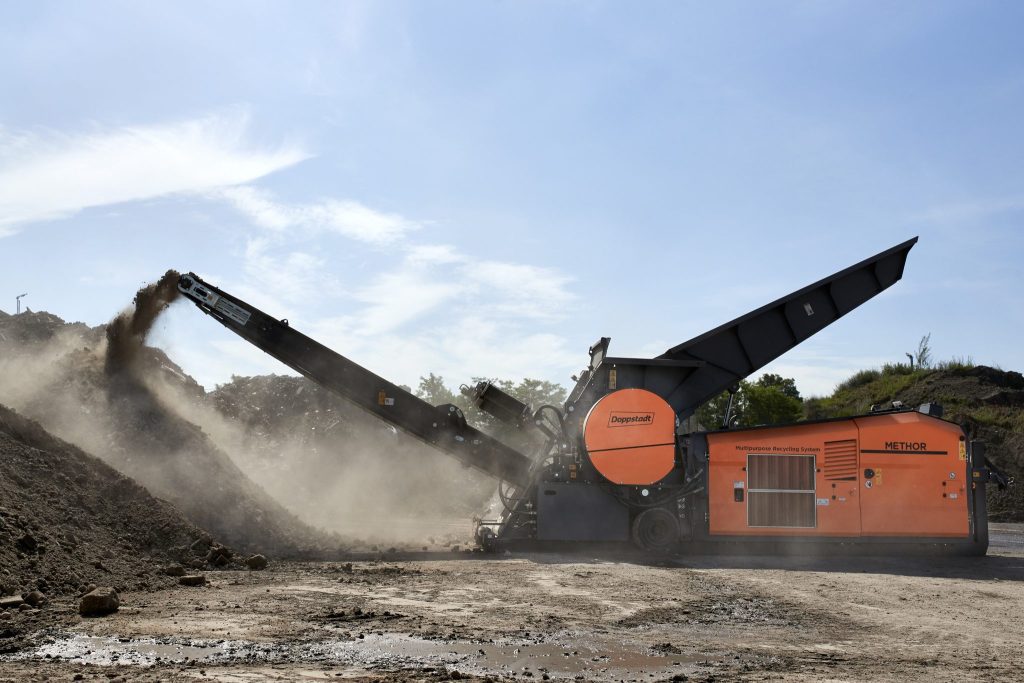

The Methor multitool provides one of the broadest application ranges in its category. It efficiently processes a wide variety of materials, including industrial waste, construction and demolition waste, mattresses, building rubble, biowaste and waste wood.
It also handles more complex or problematic inputs such as tangled waste from paper and plastic production, rolled materials, magnetic tape scrap, and the opening of bagged municipal waste with ease.

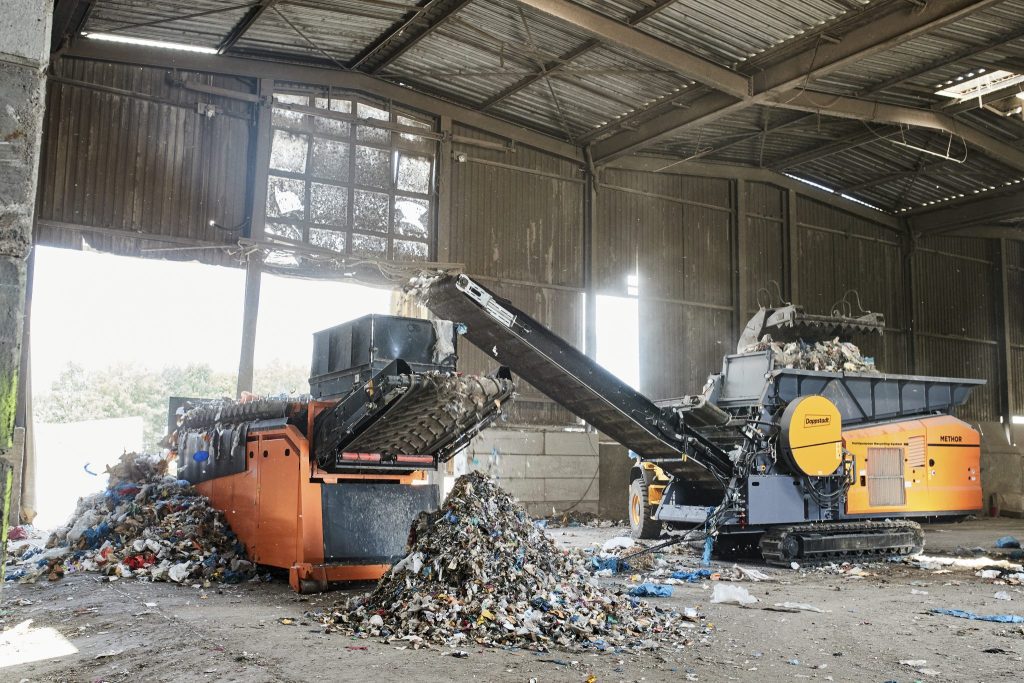

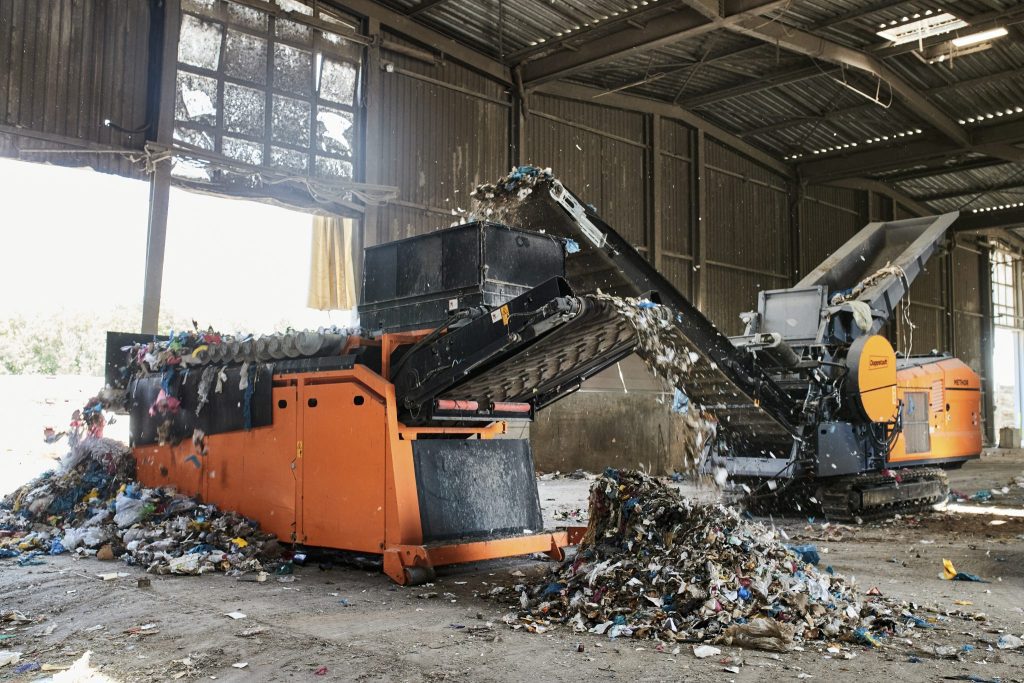

For higher-capacity processing lines, the Methor can be seamlessly integrated with downstream equipment such as a drum screen or the Selector 400 with SWS spiral shaft screening deck, enabling efficient system-wide performance.
The Future Is Mobile-modular
Doyle Machinery solutions are defined by innovative processing technology, high efficiency, and strong economic performance. This is particularly evident in our mobile-modular processing approach, where standard machines are intelligently combined to create flexible, high-output systems.
At the centre of this concept is the Methor. This versatile multitool unlocks new possibilities across a wide range of applications. When used as part of a carrier or attachment-based configuration, it can be combined with additional processing technologies to form a compact, highly effective treatment system tailored to operational needs.
Video
Technical Specification

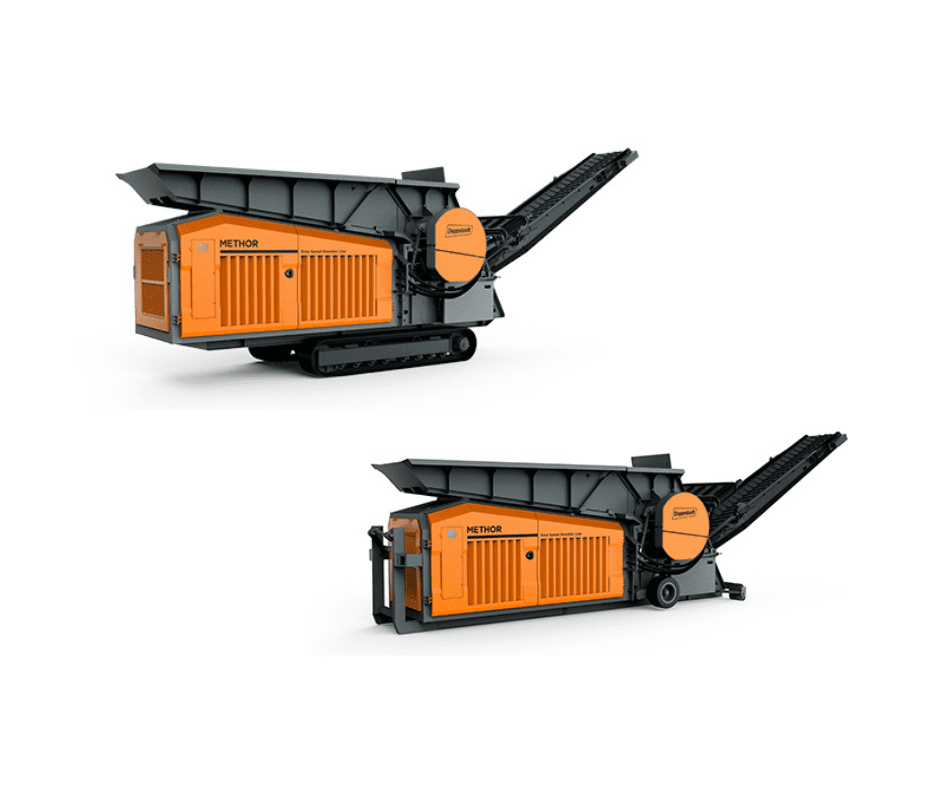

| METHOR Diesel (Hooklift) | METHOR Electohydrualic (Hooklift) | METHOR (Tracked) | |
|---|---|---|---|
| Overall Weight | 12,900 kg | 12,900 kg | 15,400 kg |
| Length x width x height (mm) | 11,541 x 2,545 x 3,690 mm | 11,541 x 2,545 x 3,690 mm | 11,293 x 2,545 x 4,184 mm |

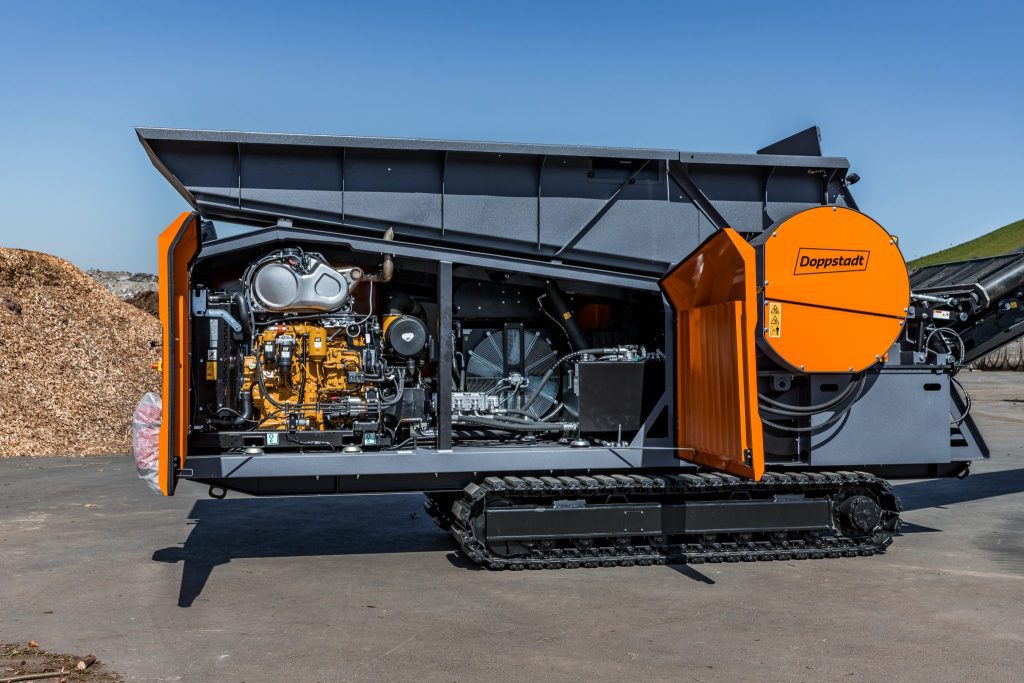

| Engine Type | Caterpillar C7.1 Diesel Hydraulic | ABB Three-Phase Motor (Electrohydraulic) | Caterpillar C7.1 Diesel Hydraulic |
| Tank Capacity | 300 L | N/A | 300 L |
| Output | 205 kW (278 HP) | 200 kW (272 HP) | 205 kW (278 HP) |
| Optional Extras | Dust suppression system, work lighting, electric hydraulic pump, auxiliary hydraulic, shredder packages (L/M/S), fire extinguishers, overhead suspension magnet, drawbar, auxiliary chassis | Dust suppression system, work lighting, electric hydraulic pump, auxiliary hydraulic, shredder packages (L/M/S), fire extinguishers, overhead suspension magnet, drawbar, auxiliary chassis | Dust suppression system, work lighting, electric hydraulic pump, auxiliary hydraulic, shredder packages (L/M/S), fire extinguishers, overhead suspension magnet, drawbar, auxiliary chassis |

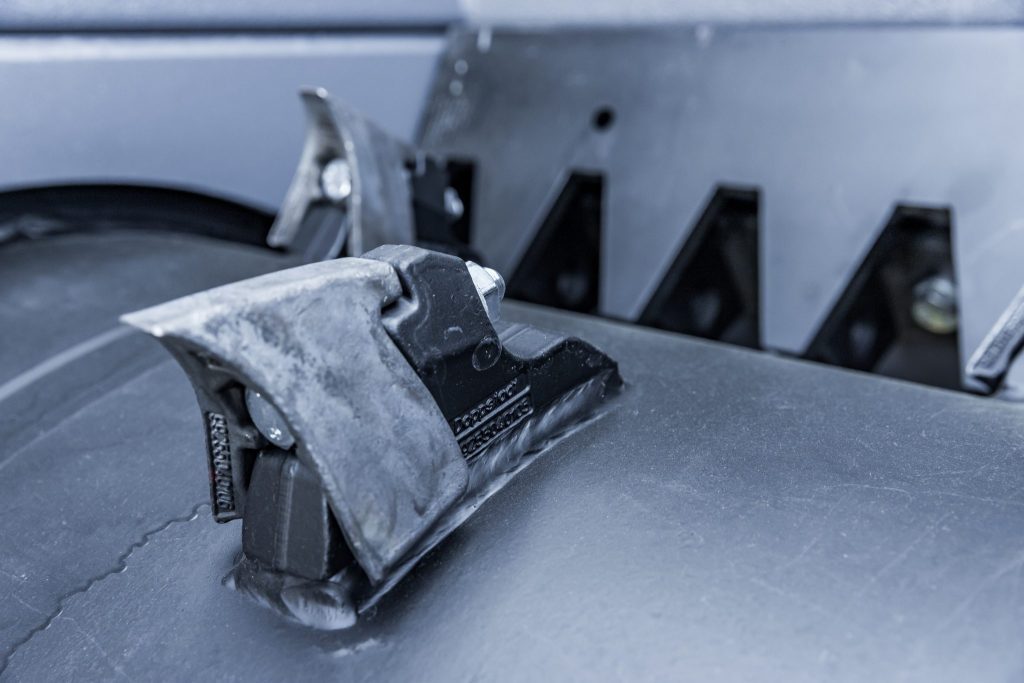

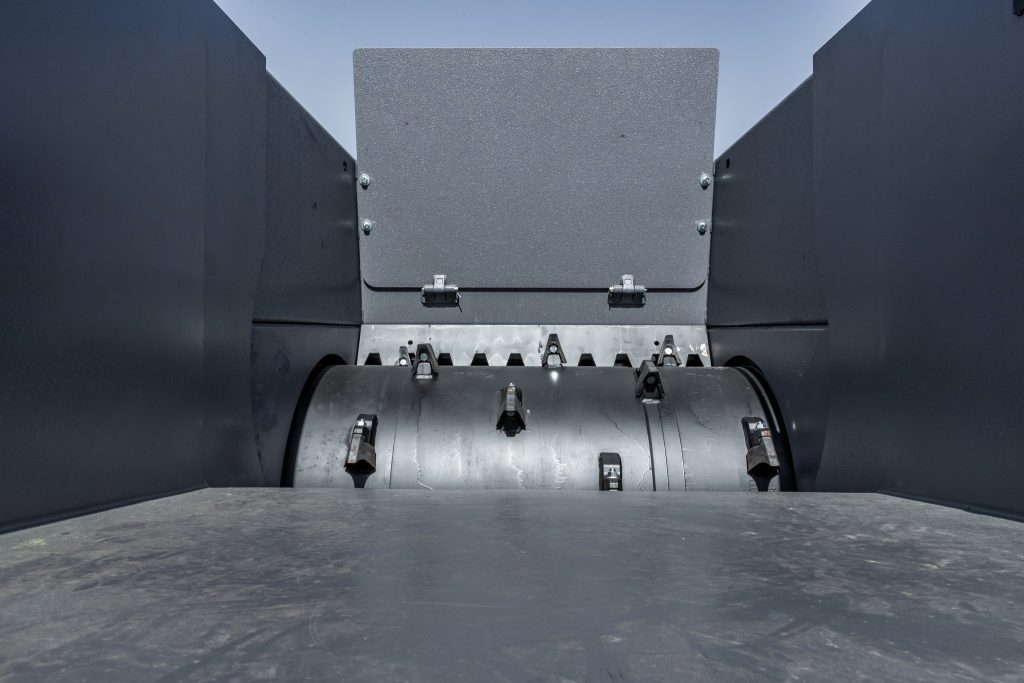

| Roller size | Roller Configuration | Recommended Applications | Typical Fracture Size |
|---|---|---|---|
| Size L 174 | L 174 – V1 | Carpet / Fleece, Waste Wood | 150 mm |
| Size L 174 | L 174 – V2 | Mattresses, Waste Wood | 200 mm |

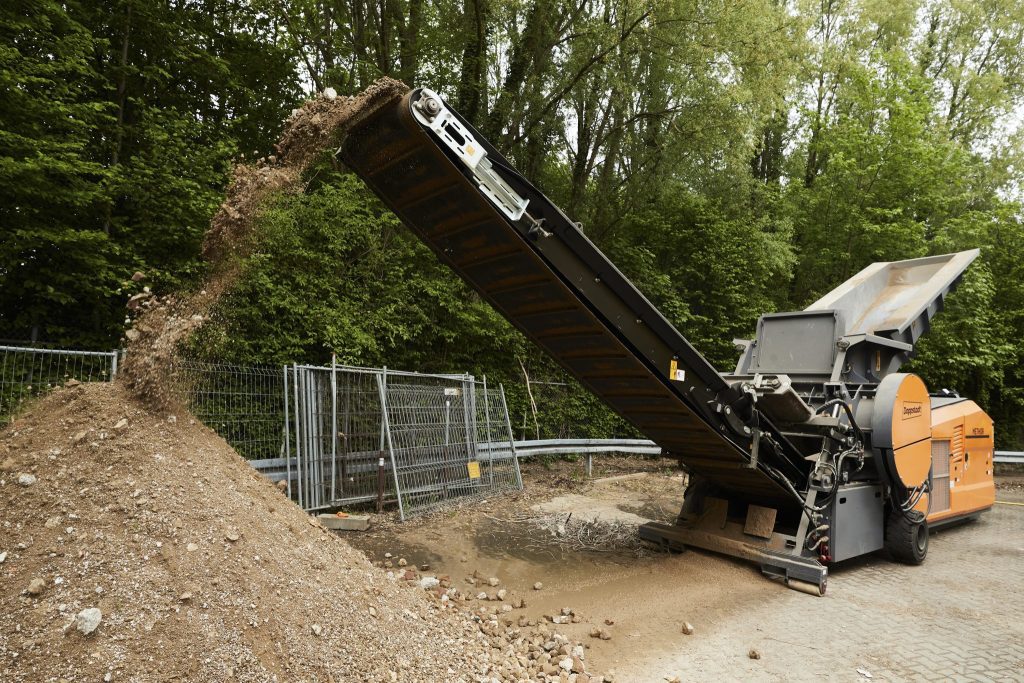

| Size L 174 | L 174 – V3 | Building Rubble | 300 mm |
| Size M | M – V1 | Mattresses, Commercial Waste | 300 mm |
| Size M | M – V2 | Commercial Waste | 200 mm |
| Size M | M – V3 | Commercial Waste | 150 mm |
| Building Rubble Roller | Chisel Coarse | Building Rubble | 300 mm |
| Building Rubble Roller | Chisel Fine | Building Rubble | 80 mm |
