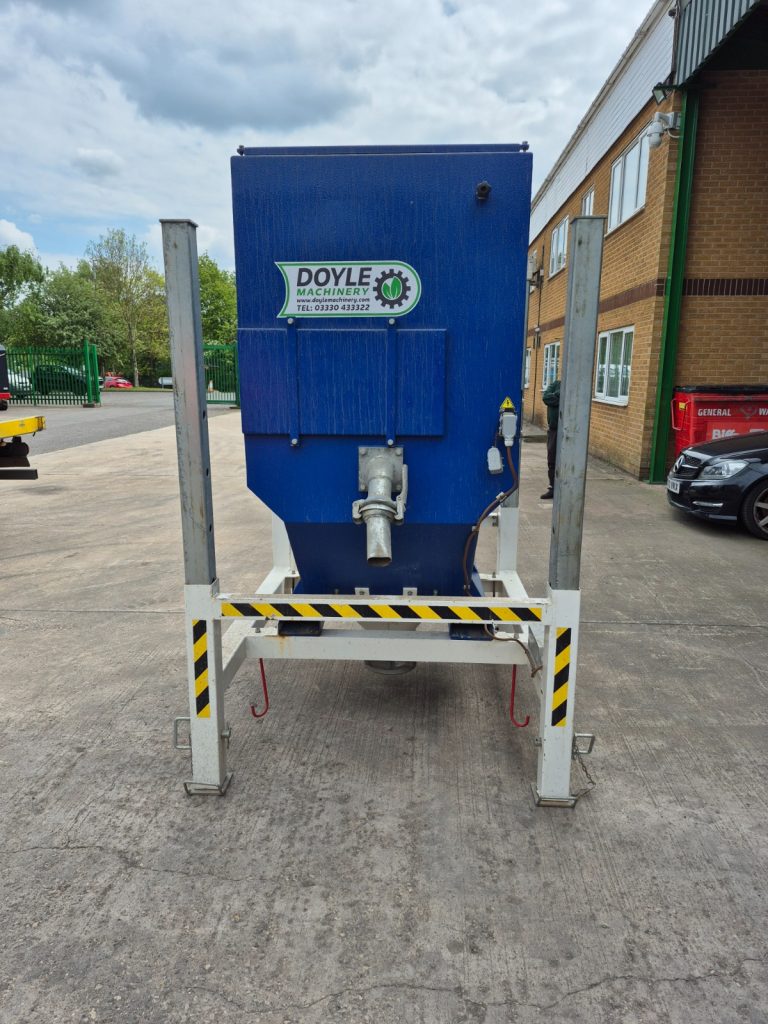

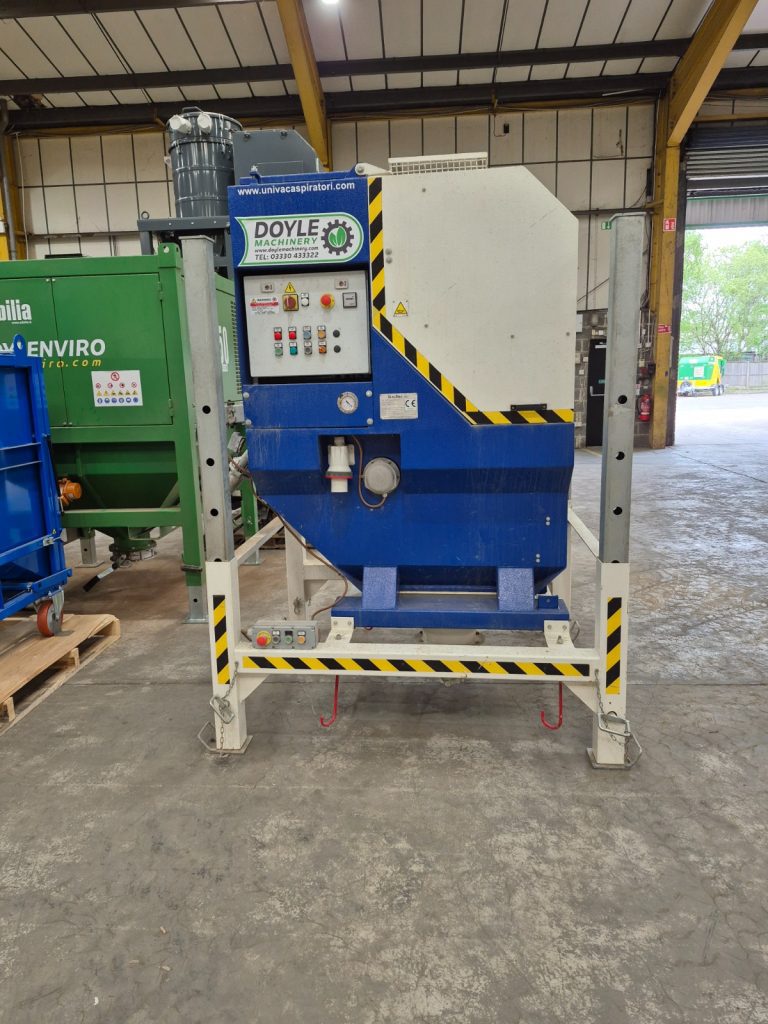

Univac SV22ec
The UNIVAC SV22ec (22kW) Industrial Vacuum is a high-performance vacuum unit designed for heavy-duty material collection and site cleanup. Offering powerful suction, low maintenance operation, and quiet performance, the SV22ec is ideal for demanding industrial applications. Its durable design ensures reliability on-site, while efficient dust and debris collection supports clean and safe work environments.
Suitable for Industrial use with:
Shavings – Grit – Dust – Cereals – Sand
Industries – Quarrying – Bulk Handling – Recycling – Power Generation – Wood / Recycling – Construction – Demolition
- Key Features
- Technical Specifications
- Video
Key Features
✔️ 22 kW heavy-duty industrial vacuum
✔️ Powerful 5,000 mmH₂O maximum vacuum
✔️ Airflow up to 1,100 m³/h
✔️ 0.5 m³ integrated collection container
✔️ Forklift transportable
✔️ Automatic filter cleaning system
✔️ 9 m² polyester primary filter
✔️ 4 m² safety filter protecting the pump
✔️ Automatic shut-off when the container is full
✔️ Available with ATEX Zone 22 certification
Technical Specifications
| Specification | Univac SV22EC |
|---|---|
| Motor Power | 22 kW / 30 HP |
| Power Supply | 400 V / 50 Hz, 3-phase |
| Maximum Vacuum | 5,000 mmH₂O |
| Maximum Airflow | 1,250 m³/h |
| Primary Filter Surface | 9 m² |
| Safety Filter Surface | 4 m² |
| Collection Capacity | 1 m³ |
| Dimensions | 1,350 × 1,000 × 2,000 mm |
| Weight | 1,300 kg |
| Filter Cleaning | Automatic mechanical shaking |
| Container Emptying | Bottom tilting door |
| Transport | Forklift compatible – minimum 2-ton capacity |
| ATEX Certification | Available for Zone 22 |
